Product Details:
Payment & Shipping Terms:
|
| Net Weight: | 3000 Kg | Overall Dimensions: | 2.5x1.7x1.8 M³ |
|---|---|---|---|
| Power Capacity: | 12 KVA | Diameter Of Tailstock Quill: | Φ82 Mm |
| Amount Of Tools / Shank Size: | 4+1/25x25 Mm² | Spindle Motor Power: | 7.5 Kw |
| High Light: | CNC spinning lathe machine,cnc spinning lathe |
||

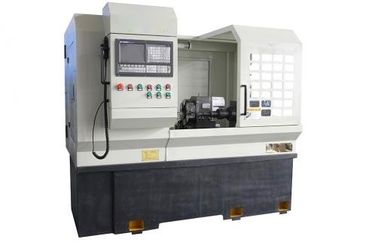

CNC Spining and Turning Machine—double roller
Purpose of Machine Tool:

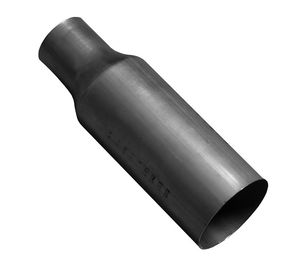

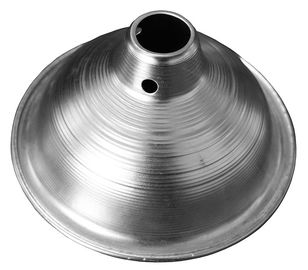

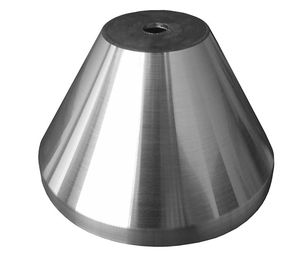

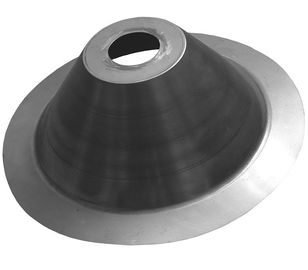

SIO-SP series CNC Spinning and Turning Machine (Double Roller) is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, mechanic and other manufacturing industries.
Standard Configurations & Main Features:
* Siemens 808D as standard CNC system which has USB port.
* Meehanite cast iron after aging treatment, with high quality and less deformation.
* Adopt independent spindle unit to ensure good movement precision, stiffness and stability.
* Precision ball screws ensure dynamic performance well and positioning accurately.
* X-axis adopts integral two-way ball screw, 2 rollers move in synchronization.
* Feeding axles are driven by servo motors.
* Spindle motor is Servo controlled.
* Hydraulic tailstock. Mobile and clamp by hydraulic system.
* Integrated automatic lubrication system makes the maintenance more reliable.
* Configuration cooling pump.
* Mobile manual pulse generator makes easy to operate.
* Semi-enclosed shield.
Optional Accessories (Extra Price):
* NC system such as FANUC,SIEMENS,GSK or KND is available for your selection.
Company service:
1. Supply company and official invitation letter to customer
2. Arrange pick-up from Shanghai airport to our company, book hotel for customer with good price
3. Help customer find other good products supplier in China if customer need, and accompany customer to visit them also
4. We do not only supply machines, we also give solution for customer to solve the technic process
4. Supply after-sales service to customer for ever free
5. If customer meet any problem in China, we are glad to help
| Items | Technical Parameters |
| Model | SIO-SP400 |
| Amount of Rollers | Sync 2+ |
| Max. Diameter of Blank | Φ400 mm |
| Max. Turning Diameter | Φ200 mm |
| Max. Length of Work Piece | 400 mm |
| Thickness of Blank | 0.5-4.0 mm ( Aluminum, Copper) 0.5-2.0 mm (Carbon Steel) 0.5-1.5 mm (Stainless Steel) |
| X-axis Stroke | 200 mm |
| Z-axis Stroke | 450 mm |
| X-axis Force | 30 kN |
| Z-axis Force | 30 kN |
| Tailstock Force | 20 kN |
| Guide Rail Type | Linear Guide Rail |
| Width of Bed | 500 mm |
| Rapid Traverse X/Z-axis | 10/15 m/min |
| Servo Torque X/Z-axis | 10/10 N.m |
| Pulse Equivalent X/Z-axis | 0.001 mm |
| Positioning Accuracy | 0.010 mm |
| Repetitive Positioning Accuracy | 0.006 mm |
| Spindle Nose | A2-6 |
| Spindle Taper | MT6 |
| Spindle Bore | Φ56 mm |
| Spindle Speed | 3000 rpm |
| Taper of Tailstock Quill | MT5 |
| Tailstock Stroke | Null |
| Stroke of Tailstock Quill | 250 mm |
| Diameter of Tailstock Quill | Φ82 mm |
| Amount of Tools / Shank Size | 4+1/25x25 mm² |
| Spindle Motor Power | 7.5 kw |
| Hydraulic Power | 2.2 kw |
| Machining Accuracy | It 6 |
| Surface Roughness | Ra 1.25 |
| Service Voltage | 380V AC |
| Power Capacity | 12 KVA |
| Overall Dimensions | 2.5x1.7x1.8 m³ |
| Net Weight | 3000 kg |
