| Axis: | X And Z Axis Are Controlled By Servo Motor | Work Piece Material: | SS, MS,Copper, Aluminum |
|---|---|---|---|
| Highlight: | CNC spinning lathe machine,cnc spinning lathe |
||

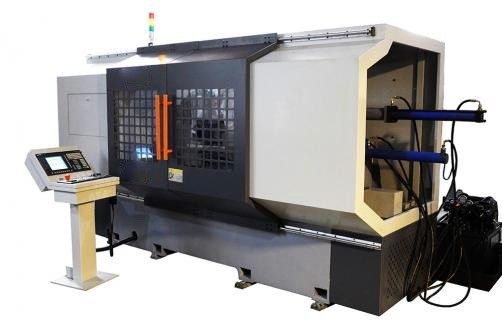

Dish end machine machine-- CNC Spinning and Turning Machine
Function:

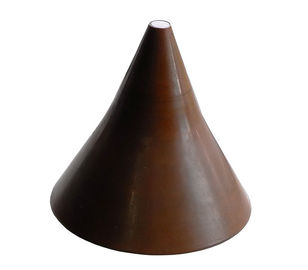

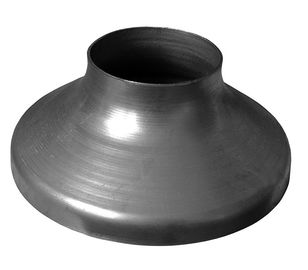

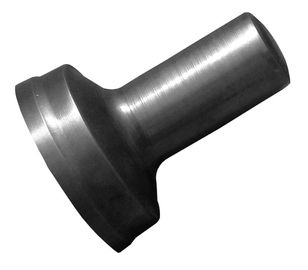

SP types of CNC Spinning lathe (Double Roller) is used to spin kitchenwares, lamps, auto fittings, ventilations and art wares. we got The State intellectual Property Office issued patents. This lathe is practical, professional and strong. The production efficiency is high and can complete horn, bucket, cone type, parabolic products. It can also do threading, trimming, flanging and rolling at the same machine tool. The machine can turn many materials such as carbon steel, stainless steel, aluminum and copper etc. It can solve the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, mechanic and other manufacturing industries.
Main Features:
* We use Siemens 808D CNC system
* With USB port.
* Meehanite cast iron after aging treatment, with high quality and less deformation.
* Adopt independent spindle unit to ensure good turning precision, stiffness and stability.
* Precision ball screws ensure dynamic performance well and positioning accurately.
* X-axis is driven by integral two-way ball screw, 2 rollers move in synchronization.
* Feeding axles are driven by servo motors.
* Spindle motor is Servo controlled.
* Hydraulic tailstock. Mobile and clamp by hydraulic system.
* Integrated automatic lubrication system makes the maintenance more reliable.
* Configuration cooling pump.
* Mobile manual pulse generator makes easy to operate.
* Semi-enclosed shield.
Details:
| CNC Spinning and Turning Machine | ||
| Items | Technical Parameters | |
| Model | SP1000 | |
| Amount of Rollers | Sync 2+ | |
| Max. Diameter of Blank | Φ1000 mm | |
| Max. Turning Diameter | Φ600 mm | |
| Max. Length of Work Piece | 600 mm | |
| Thickness of Blank | 0.5-7.0 mm (Aluminum, Copper) 0.5-4.0 mm (arbon Steel) 0.5-3.0 mm (ainless Steel) | |
| X-axis Stroke | 610 mm | |
| Z-axis Stroke | 780 mm | |
| X-axis Force | 60 kN | |
| Z-axis Force | 60 kN | |
| Tailstock Force | 40 kN | |
| Guide Rail Type | Linear Guide Rail | |
| Width of Bed | 850 mm | |
| Rapid Traverse X/Z-axis | 8/12 m/min | |
| Servo Torque X/Z-axis | 23/18 N.m | |
| Pulse Equivalent X/Z-axis | 0.001 mm | |
| Positioning Accuracy | 0.015 mm | |
| Repetitive Positioning Accuracy | 0.008 mm | |
| Spindle Nose | C11 | |
| Spindle Taper | 120(1:20)Metric | |
| Spindle Bore | Φ110 mm | |
| Spindle Speed | 1500 rpm | |
| Tailstock Stroke | 500 mm | |
| Stroke of Tailstock Quill | 550 mm | |
| Diameter of Tailstock Quill | Φ85 mm | |
| Amount of Tools / Shank Size | 6+1/30x30 mm² | |
| Spindle Motor Power | 22 kw | |
| Hydraulic Power | 4 kw | |
| Machining Accuracy | It 6 | |
| Surface Roughness | Ra 1.25 | |
| Voltage | 380V AC | |
| Power Capacity | 30 KVA | |
| Machine Size | 3.6x2.5x2.2 m³ | |
| Machine Weight | 8500 kg | |
