Manual Loading - Unloading CNC Metal Spinning Lathe Steel Bottle Seam Welding

Manual Loading - Unloading CNC Metal Spinning Lathe Steel Bottle Seam Welding

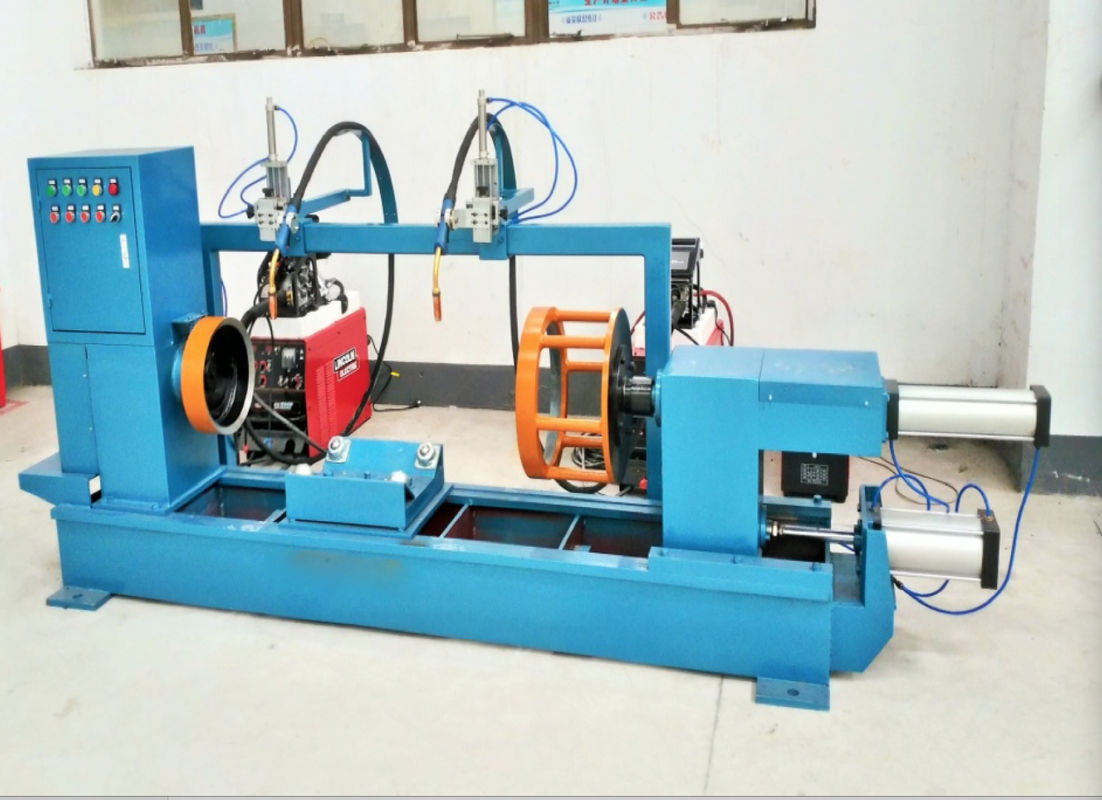

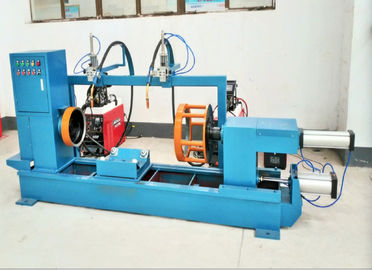

Pneumatic loading and unloading, mechanical tracking, frequency conversion speed control, can choose Lincoln MAG pulse power or MZ power supply, welding quality, no splash, welding quality stable, one person can operate two equipment, production efficiency is high.

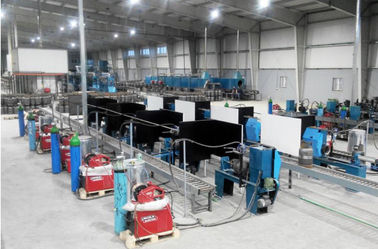

The whole line is made up of a series of special equipment, such as open and double flat blanking, stretching, flush, cleaning, necking, punching, bottle throwing, ring welding, medium frequency annealing, water pressure, shot removing rust, electrostatic spraying, angle valve installation, air tightness test, printing and so on. The line is transported from the cylinder head to the finished product to the finished warehouse by chain roller, which reduces the number of semi-finished products and finished products in the production process of the steel cylinder, and forms the production line operation, thus reducing the labor intensity of the workers and raising the productivity.

12KG Gas Bottle Production Line Technical Parameter

Material cutting machine​

2.Y28-200/300:Press machine for the gas bottle body(two dish ends)

3. QK-7 Cutting the edge of two dish ends

4. SK-3 One dish end needs to be shrink, then the diameter is smaller, but the other no need. Then one dish end can be connected with the other to prepare for next welding process.

QL-5 dish end cleaning machine: clean and polishing for welding part of dish end

CK-3 Punching machine: punch holes for valves hole on the dish end

HP-2 Fixture for welding dish end and valves

HZ-1 Fixture for welding dish end and guarding housing

DZ—1 Fixture for welding dish end and bottom base

YM-350 gas-shield welding machine

ZH-1 fixture for combination of two dish ends

HJ-3 fixture for circular welding

MZ-630 Submerged welding machine

SY-6 hydrostatic testing machine

YC-4 shot blasting machine

painting production line

installation angle valve

CM-2 gasproof testing machine

ZS-2 Printing brand or words on bottle

transfer line

motor test pump

bottle painting dryer

Mechanical punch machine

Shearing machine for bottle accessories

words rolling form machine

bottle charater cutting machine

guarding housing/ base rolling machine

tooling for guarding housing and base

round plate tooling for material cutting machine

dish end machine for press machine

fixture for welding base on dish end

welding flux drying machine

2.0/3.0 air compressor

air storage tank

testing machine

Mechanical property testing machine

material chemical elements analysis machine

ultrasonic thickness meter
