| Highlight: | CNC spinning lathe machine,cnc spinning lathe |
||
|---|---|---|---|

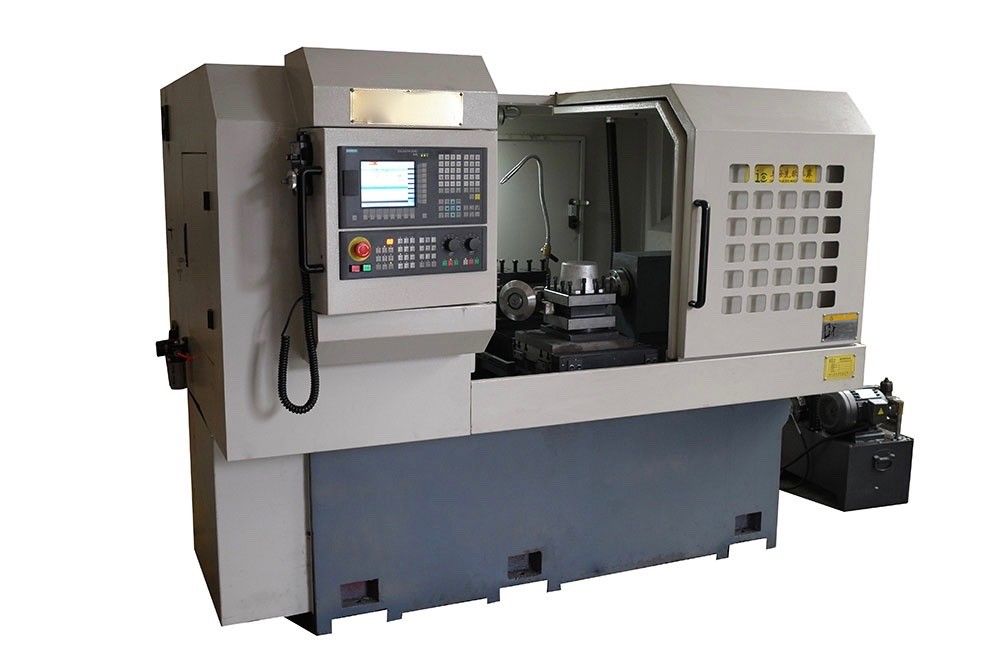

Our machine is combined with threading, trimming, flanging , rolling -CNC Spining and Turning Machine—double roller
| Names | Values |
| Model | SP400 |
| Rollers Quantity | Sync 2+ |
| Max. Diameter | Φ400 mm |
| Max. Turning Diameter | Φ200 mm |
| Max.Job Length | 400 mm |
| Thickness of job | 0.5-4.0 mm ( Aluminum, Copper) 0.5-2.0 mm (CS) 0.5-1.5 mm (SS) |
| X-axis Stroke | 200 mm |
| Z-axis Stroke | 450 mm |
| X-axis Pressure | 30 kN |
| Z-axis Pressure | 30 kN |
| Tailstock Pressure | 20 kN |
| Guide Rail Type | Linear Guide Rail |
| Width of Bed | 500 mm |
| Rapid Traverse X/Z-axis | 10/15 m/min |
| Servo Torque X/Z-axis | 10/10 N.m |
| Pulse Equivalent X/Z-axis | 0.001 mm |
| Positioning Accuracy | 0.010 mm |
| Repetitive Positioning Accuracy | 0.006 mm |
| Spindle Nose | A2-6 |
| Spindle Taper | MT6 |
| Spindle Bore | Φ56 mm |
| Spindle Speed | 3000 rpm |
| Taper of Tailstock Quill | MT5 |
| Tailstock Stroke | Null |
| Stroke of Tailstock Quill | 250 mm |
| Tailstock Quill diameter | Φ82 mm |
| Tools amount / Shank Size | 4+1/25x25 mm² |
| Spindle Motor Power | 7.5 kw |
| Hydraulic Power | 2.2 kw |
| Machining Accuracy | It 6 |
| Surface Roughness | Ra 1.25 |
| Service Voltage | 380V AC |
| Power Capacity | 12 KVA |
| Overall Dimensions | 2.5x1.7x1.8 m³ |
| Weight | 3000 kg |
Purpose of Machine Tool:

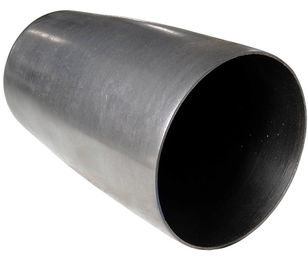

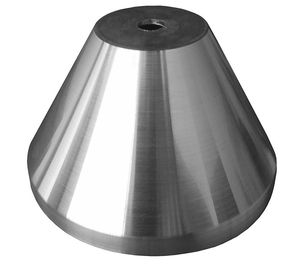

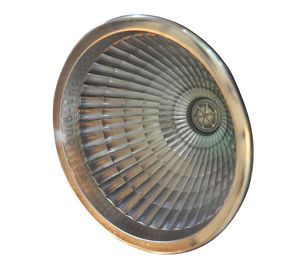

SP series CNC Spinning Lathe (Double Roller) is designed to produce kitchenwares, lamps, auto fittings, ventilations and art wares. the State Intellectual Property Office issued many patents to us becasue of this machine. This machine is practical, professional and strong, with high production efficiency and, which can complete horn, bucket, cone type, parabolic products. We also can use it for threading, trimming, flanging and rolling at the same machine tool. The machine can be used for many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the perfect processing machine for light, automobile, mechanic and other manufacturing industries.
Standard Configurations & Main Features:
* USB is available
* CNC system is Siemens 808D
* Meehanite cast iron after aging treatment, and it has high quality and less deformation.
* We use independent spindle unit to ensure high precision, stiffness and stability.
* Precision ball screws ensure dynamic performance well and positioning accurately.
* X-axis adopts integral two-way ball screw, 2 rollers move in synchronization.
* Feeding axles are driven by servo motors.
* Servo motor controlled Spindle
* Hydraulic tailstock. Movable and fixed by hydraulic system.
* Integrated automatic lubrication system makes the maintenance more reliable.
* Configuration cooling pump.
* With mobile manual pulse generator, easy to operate for workers.
* Semi-enclosed shield.
Optional Accessories (Extra Price):
* Other controller also can be used, such as FANUC,SIEMENS,GSK or KND is available for your selection.
