| Max Diameter: | 800mm-2500mm | Max Height: | 20-50mm |
|---|---|---|---|
| Max Thickness: | (2-6)mm | ||
| Highlight: | tank spinning forming machine,head rotation spinning forming machine,6mm spinning forming machine |
||
一)introduction
:

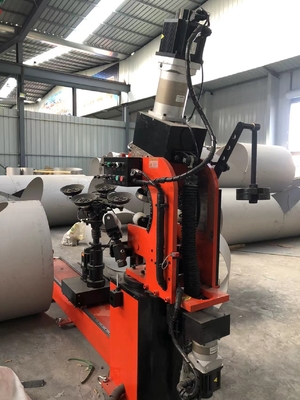

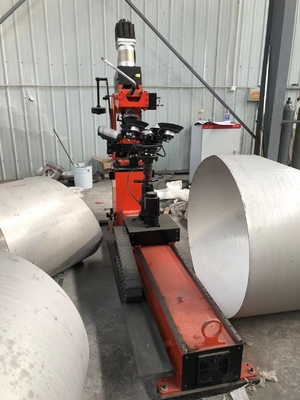

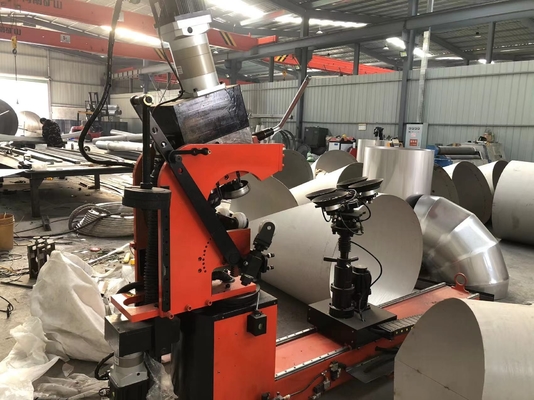

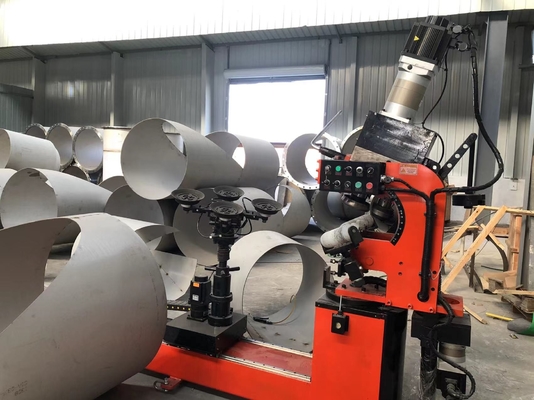

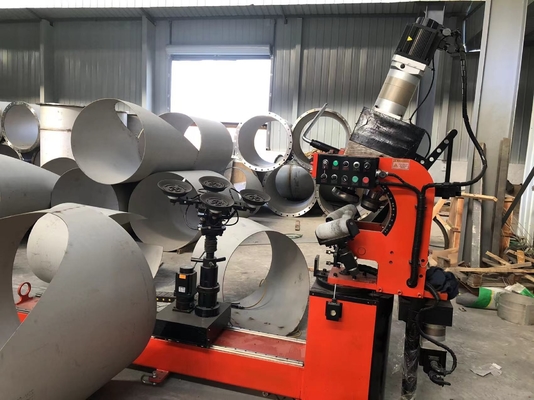

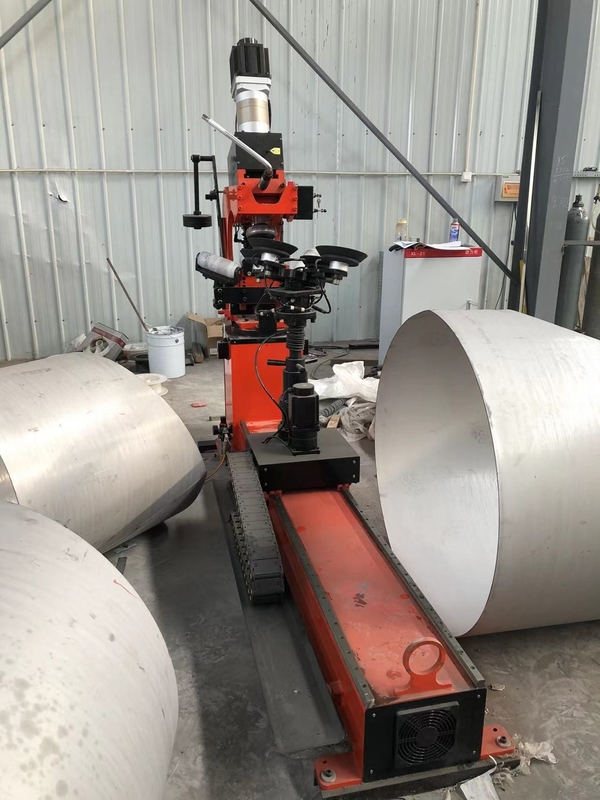

Servo edge spinning/rotating machine is an efficient, high-precision, and highly reliable mold free edge spinning equipment that can rotate, elliptical, and seal heads. Widely used in industry, large water tanks, oil tanks, and head equipment.
(二)technical details:
|
|
rotating height | 20-50mm | |
|
|
sheet thickness | (2-6)mm | |
|
|
sheet material | Mild steel, stainless steel | |
|
|
Minimum arc radius | ≥280mm | |
|
|
rotation speed | 1000-2500mm per minute | |
|
|
Main motor | 3KW servo motor | |
|
|
tank head rotation machine motor | 2KW servo motor | |
|
|
Slide guide rail | HIWIN linear guide rail | |
|
|
Rail length | 2000mm | |
|
|
Electric lifting | 1set | |
|
|
Spinning diameter | 1000mm-3600mm | |
(三) technical details:
|
|
Input voltage | AC220V/3×380V±10V |
|
|
Power frequency | 50Hz |
|
|
Rated voltage of the main machine | 380 V |
|
|
Suction cup motor voltage | 220 v |
