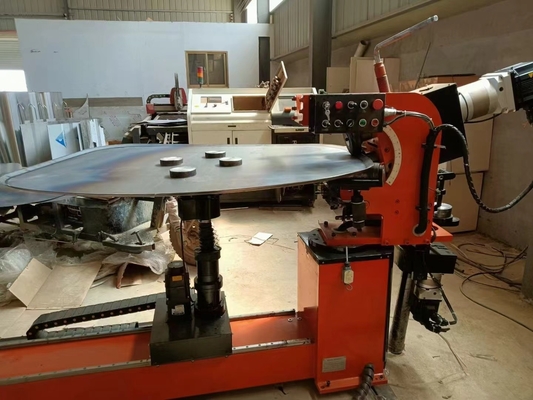

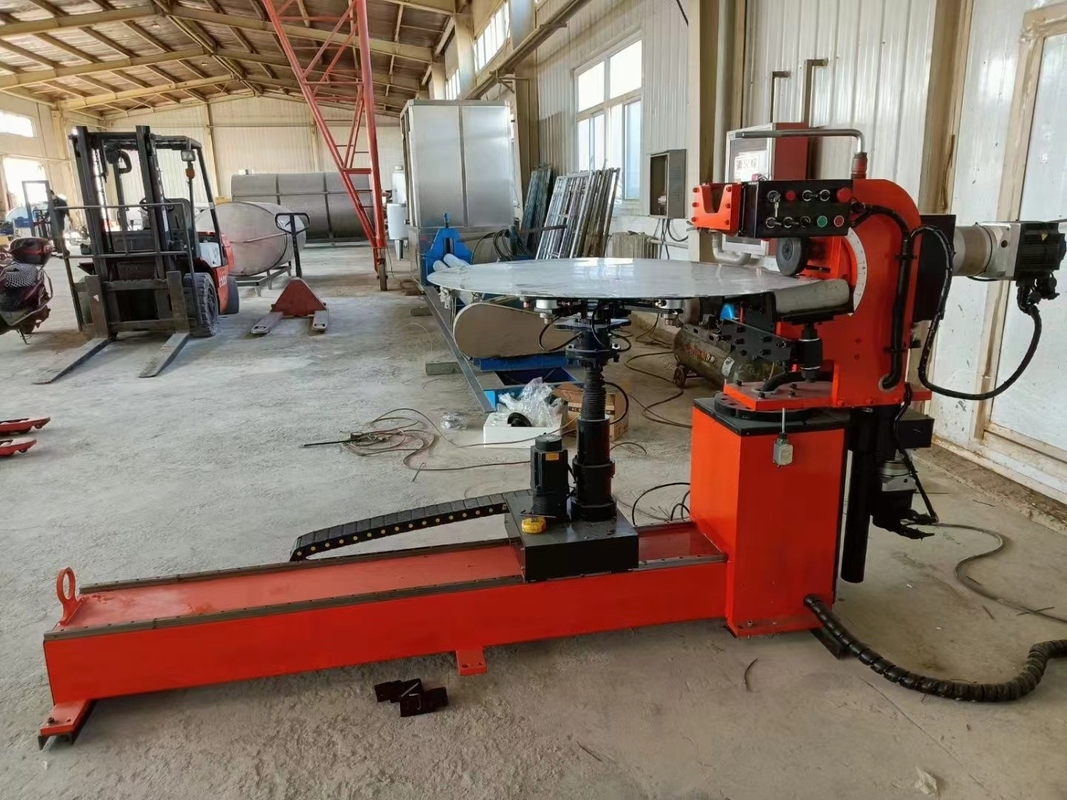

Water Or Oil Tank Cover Spinning / Forming Machine 6mm 50mm

Large Image : Water Or Oil Tank Cover Spinning / Forming Machine 6mm 50mm

Product Details:

Place of Origin:	CHINA WUXI CITY
Brand Name:	Jinqiu
Certification:	CE & SGS & ISO
Model Number:	3600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	according to size
Packaging Details:	steel pallets
Delivery Time:	3 months
Payment Terms:	T/T,L/C,, Western Union
Supply Ability:	200 sets per year

Contact Now

Detailed Product Description

Max Diameter:

1000mm-3600mm

Max Height:

20-50mm

Max Thickness:

(2-6)mm

Highlight:

stainless steel Tank Cover Spinning Machine

6mm Tank Cover Spinning Machine

50mm Tank Cover Forming Machine

一)Overview:

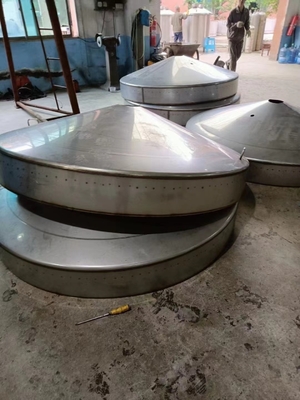

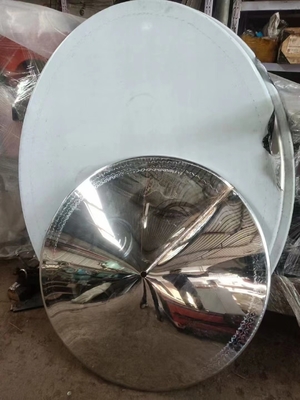

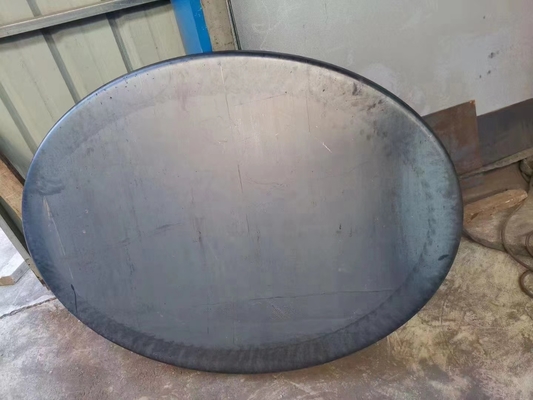

Servo edge spinning machine is a high-efficiency, high-precision, and highly reliable dieless edge spinning equipment that can rotate, ellipse, and seal heads. Widely used in industry, large water tanks, oil tanks, and head equipment.

(二)Basic configuration:

	Spinning height	20-50mm
	Thickness of edge material	(2-6)mm
	Spinning material	Mild steel, stainless steel
	Minimum arc radius	≥280mm
	Spinning speed	1000-2500mm per minute
	Main motor	3KW servo motor
	Spinning motor	2KW servo motor
	Slide guide rail	HIWIN linear guide rail
Rail length		2000mm
Electric lifting		1set
Spinning diameter		1000mm-3600mm

(三) technical details:

	Input voltage	AC220V/3×380V±10V
	Power frequency	50Hz
	Rated voltage of the main machine	380 V
	Suction cup motor voltage	220 v
