Product Details:
Payment & Shipping Terms:
|
| Metal Sheet Coil: | Suitable Thickness 0.1-1.2mm | Coil Width: | 100/200/300 MM |
|---|---|---|---|
| Function: | Straighten Metal Sheet Strip | ||
| High Light: | coil feeder machine,roll feeder machine |
||

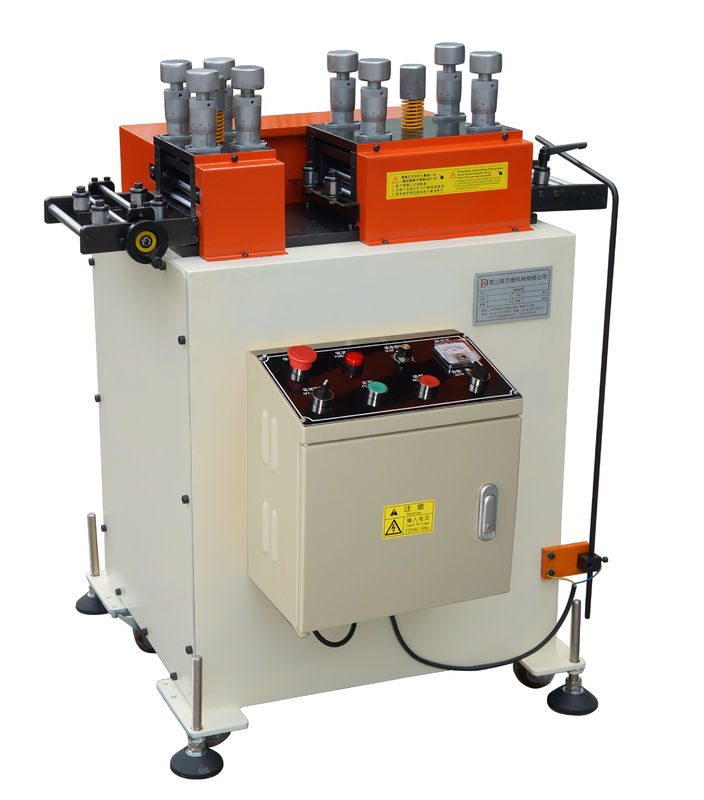

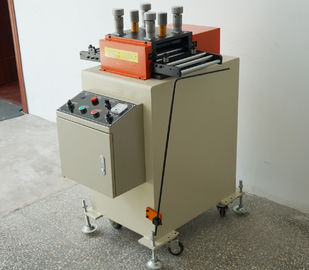

thin thickness material high accuracy straightening/ leveling-coil feeding line
Model:
SNS series
| Models | SNS-100 | SNS-200 | SNS-300 |
| max widness[mm] | 100 | 200 | 300 |
| material thickness [mm] | 0.1 ～ 1.2 | ||
| motor power [HP] | 1 | ||
| adjustable mode | 4 points small-adjusting | ||
| speed adjusting mode | inventer | ||
| levelling roller details [mm] | ￠12×22 pcs(up 11 bottom11) | ||
| levelling speed [m/min] | 5 ～ 30 | ||
| voltage [V] | AC three phase 380V | ||
Applications:
Computer connectors, electronic shrapnel, wire frames, precision terminals, connectors, mobile phones, rotating shafts, digital precision electronic products, such as stamping before leveling operations.
Levelling details:
1, SNS series of ultra precision leveling machine is designed for the material thickness of 0.1-1.2mm, width of thin material material precision stamping leveling 0-300mm and professional design automation equipment, materials, especially suitable for thin stainless steel, copper, iron leveling and aluminum sheet thickness is thin, can achieve the leveling effect of the perfect development for precision machining objective.
2, using the 22 leveling roller, and the roller path back to install the work roller, ensure a sufficient power in precision machining, fundamentally eliminate the stress of the remaining material.
3, the upper working roller adopts advanced 4 point type separation table, fine-tuning device, debugging simple, high precision.
4, all the rollers are independent universal joint drive, the gap is small, uniform speed, it is difficult to damage the surface of the product.
5, the Japanese system of precision bearing, automatic oil circulation lubrication device and a recovery device equipped with intermittent unique, reducing gear wear and prolong its service life, can be a long time in the high temperature working condition, ensure the high precision leveling.
6, the roller is made of bearing steel (SUJ2), HRC60 after heat treatment quenching degree after hard chromium plating, grinding, high hardness, abrasion and long service life.
7, leveling roller with reinforcement device, better guarantee flatness.
8, the use of frequency control, with more closely.
