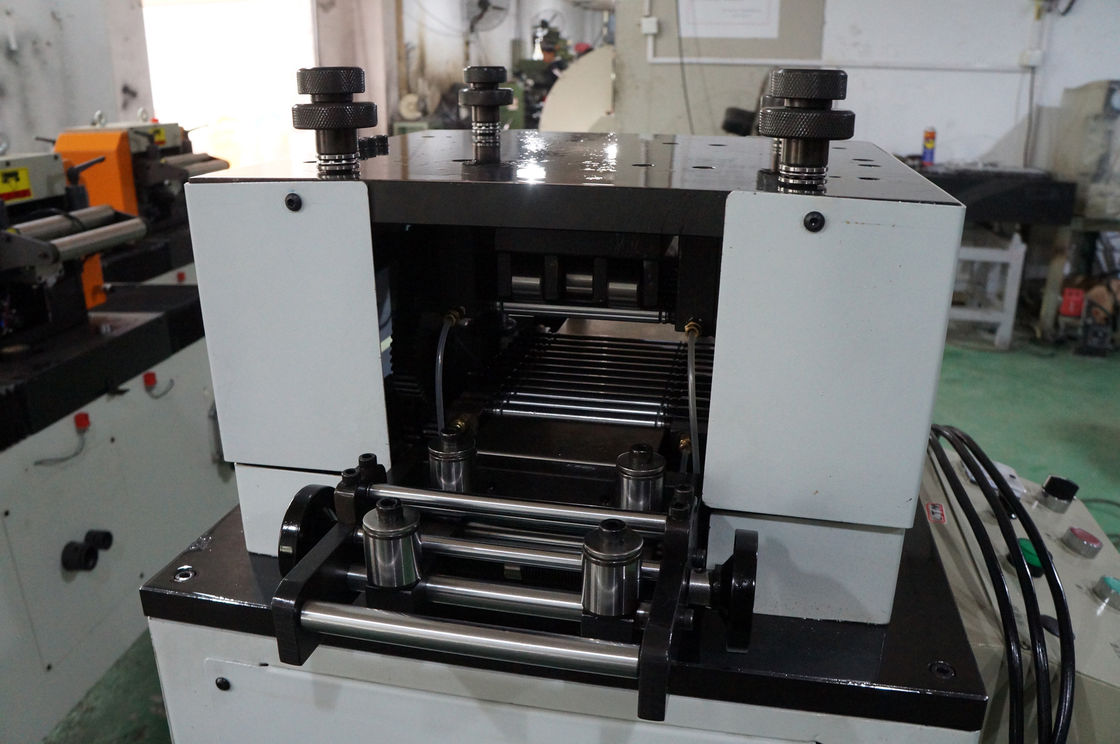

Thickness 0.05 - 0.3mm Metal Sheet Coil Feeder Machine Servo Feeder Machine

Thickness 0.05 - 0.3mm Metal Sheet Coil Feeder Machine Servo Feeder Machine
Thickness 0.05 - 0.3mm Metal Sheet Coil Feeder Machine Servo Feeder Machine

Large Image :  Thickness 0.05 - 0.3mm Metal Sheet Coil Feeder Machine Servo Feeder Machine

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: JINQIU
Certification: ISO, CQC,SGS
Model Number: GJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD or RMB
Packaging Details: properly rust-proof treatment, plywood case
Detailed Product Description
Metal Sheet Coil: Suitable Thickness 0.05-0.3mm Coil Width: 0-200 MM
Function: Servo Feeder For Power Press Or Mechanical Press
High Light:

coil feeder machine


roll feeder machine


high precision straightening/ leveling-coil feeding line


 Model GJ10-100 GJ10-200
  Max width[mm] 100 200
  material thickness[mm] 0.05 ~ 0.3
  reducer 1:30
  motor [HP] 1
  adjust mode 4 points fine-adjusting
  speed adjusting mode  inventer
  straightening roller [mm] ¢12×19 pcs(up 9 bottom 10)
  power [V] AC 3 phase 380V
  machine size [L×W×H] 700×600×1050mm 700×700×1050mm
  machine weight[kg] 170 190


Straightening features:
1, ultra precision leveling machine is designed for the material thickness of 0.05-0.3mm, width of thin material material punching leveling 0-200mm and professional design automation equipment, materials, especially suitable for thin stainless steel, copper, iron leveling and aluminum sheet thickness is thin, can achieve perfect leveling effect.
2, ultra precision leveling machine through the operation of electrical control, inverter control the speed at the same time, through the induction machine to achieve the start and stop, the leveling effect mainly depends on the upper and lower roller synchronous transmission, and adjust the gap between the upper and lower roller to achieve the leveling effect.
3, only 19 leveling roller (9, 10 arranged) with rolling bearing GCr15 steel after quenching and tempering, frequency quenching, hard chrome plated surface hardness can reach HRC60 ~ 62 degrees, the size precision of 0.01mm, increase the wear resistance and leveling accuracy.
4, leveling roller transmission universal joint will not hurt the work surface, the operation of forced lubrication, to ensure that the machine can be in a long time in an accurate state of processing.
5, leveling machine inside lever roller, the other with the leveling auxiliary wheel to prevent leveling roller due to excessive pressure and bending deformation, strengthen the strength and life of the whole roller leveling and improve plate surface flatness requirement.
6, adjust the leveling by four point independent tuning, 4 handwheel adjustment with high precision and easy operation, high precision dial indicator, realize the demand of leveling.
7, with frequency converter speed regulation, the use of more stable, more closely matched, suitable for use with a variety of feeder.


Typical applications:
Computer connectors, electronic shrapnel, wire frames, precision terminals, connectors, mobile phones, rotating shafts, digital precision electronic products, such as stamping before leveling operations.
