Product Details:
Payment & Shipping Terms:
|
| Metal Sheet Coil: | Suitable Thickness 0.1-4.5mm | Coil Width: | 200/300/400/500/600MM |
|---|---|---|---|
| Function: | Automatic Feeding For Hydraulic Press Or Mechanical Press Machine | PLC: | Mitsubishi |
| HMI: | Mitsubishi | Servo Motor: | Yaskawa Or Mitsubishi |
| Highlight: | decoiler straightener feeder,roll feeder machine |
||

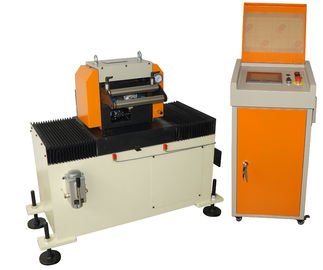

Power press servo feeder--application for punch--coil feeding line
Model:
NCF-series
Product Application :
Automatic metal strip feeder was mainly used to feed strips to press automatically, it was driven by servo motor, and the servo motor drive a set of feeding rollers, so the feeding roller clamp strips forwards. And machine was controlled by PLC, so feeding length and precision can't be set and controlled, ensuring feeding tolerance.
Details:
1, the Japanese Yaskawa servo motor (MITSUBISHI), MITSUBISHI PLC and touch panel control, long service life, high precision, simple operation and fast, effectively shorten the preparation time of work, improve productivity.
2, feed roller bearing steel (domestic manufacturers mostly use 45# steel), after high-frequency, quenching, hard chromium plating treatment, the surface hardness of up to HRC60-62 degrees.
3. The control box is separated from the machine body to prevent vibration and damage the electrical components, and easy to move.
4, touch screen and button double control mode, can realize multi-function operation, the button adopts the world advanced technology LED button indicator lamp, use button times, life 3 million times.
5, high-precision feeding size: with high feeding accuracy, to meet higher and higher processing requirements.
6 , flexible and convenient feeding length setting: the feeding length setting does not need to adjust any mechanical mechanism, so long as the input length and size are displayed on the touch type display control panel, and the number setting function of the section type length is provided.
7 , programming induction feeding, connected to the punch cam, arbitrary adjustment feeding and relaxation time.
8, manual / automatic control feeding, manual can inch in and out, easy to adjust its feeding test mode (in the interface automatic and inch speed adjustable).
Product specification:
Machine Models:
| Model | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 |
| Coil width[mm] | 200 | 300 | 400 | 500 | 600 |
| coil thickness[mm] | 2.0×200 3.2×100 |
2.0×300 3.2×120 |
1.6×400 3.2×150 |
1.2×500 3.2×200 |
1.0×600 3.2×250 |
| feeding length [m/min] | 0 ～ 9999.99 | ||||
| max feeding speed [m/min] |
16 125 100 100 |
||||
| feeding direction | L ←→ R | ||||
| Power and Voltage [V] | AC 3 phase 220V/380V | ||||

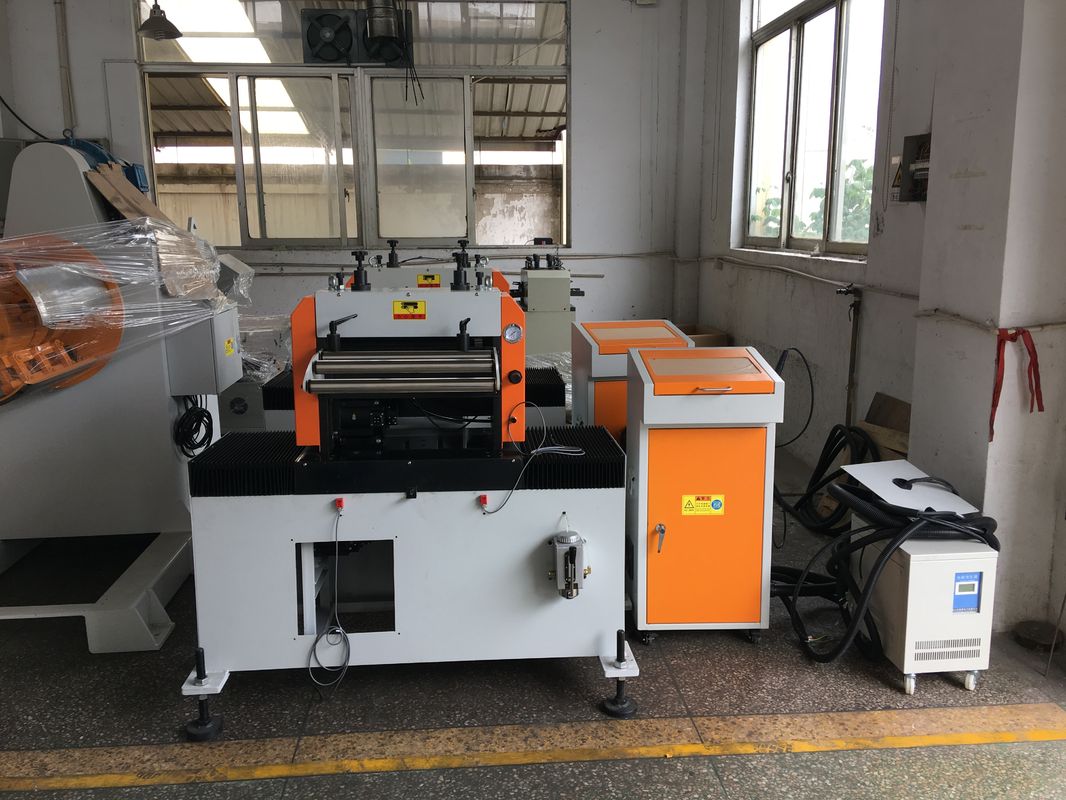

Related Press Photos
