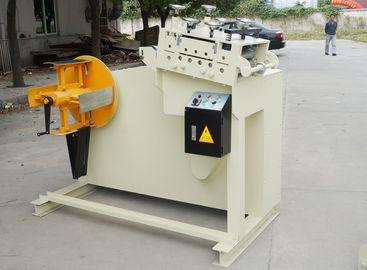

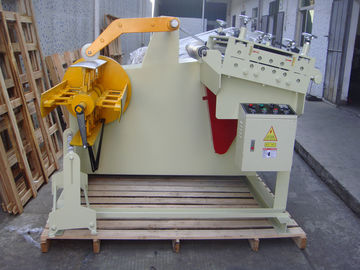

Coil Open Straightening 2 In 1 0.5 - 3.0mm Decoiler And Straightener For Punch / Press

coil open and straightening 2 in 1 0.5-3.0mm for punch/press machine

Model:
GO-series

Usage range:
specially make for 0.5--3.0 mm thickness coil uncoiler & straightener for Hardware, stamping, electronics, electrical appliances, technology, auto parts, metal, packaging, industrial, aerospace, precision, mechanical, electrical, mechanical and electrical cabinet, etc..

suitable material is stainless steel, copper, aluminum....

Details:

1, coil open frame and leveling machine as a whole, suitable for 0.5 ~ 3.0mm of various metal coil material, using inclined type leveling method, high accuracy, small size, improve the workshop can use space.
2, mechanical operation, small vibration, very stable operation.
3, adopt the method of variable diameter material support, material device fastening material, in the course of running, no damage to the material surface.
4, equipped with surround brake device, adjustable tightness, roll rotation more smoothly.
5, the use of vertical independent induction stent induction, sensitive induction, the use of a wider range, more applicability, better customization, to meet the needs of different customers.

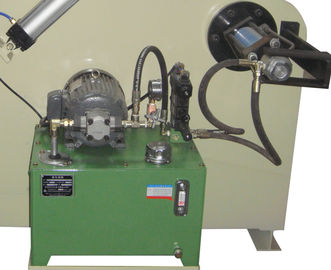

6, in accordance with customer special requirements design the installation of pressure arm, frequency converter, hydraulic expansion device, in order to increase work efficiency and improve safety.
The maximum external diameter of the standard coil material is 1200mm, and the outer diameter and weight can be increased according to the special requirements of customers.

2 in 1 Machine Models:
