Product Details:
Payment & Shipping Terms:
|
| Metal Sheet Coil: | Suitable Thickness 0.6-6.0mm | Coil Width: | 70--1300mm |
|---|---|---|---|
| Function: | Recoiler-straightener For Power Press Or Mechanical Press Machine | ||
| Highlight: | coil feeder machine,decoiler straightener feeder |
||

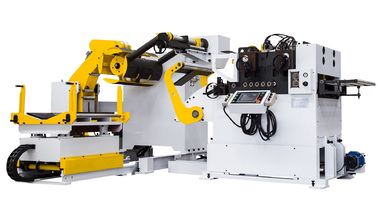

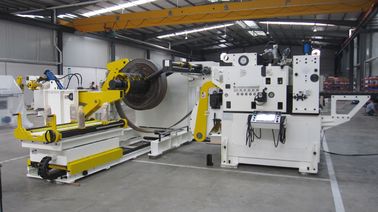

Auto parts or Electric parts High tension 0.6-6.0 mm coil feeding line: uncoiling, Straightening, and feeding
Model:
NCSF8-F
Usage range:
Suitable for 0.6-6.0mm thickness sheet thickness coil uncoiler, straightener & feeder for Auto parts or Electric parts
Advantages:
1, Using 9 straigtenning rollers, effective surrender of high rigid plate, improve material straightening accuracy.
2, The straightening rollers can be opened up, can quickly and thoroughly cleaning the roller, convenient for mechanical point inspection.
3 , levelling and fine-tuning adopts servo control device.
4, In an electric manner for adjustment replace the manual turbine correction , operation is much easier.
5, Closed loop detection device (i.e. the coder counts the feeding length), ensures the long step feeding precision.
3 in 1 Dimension Drawing:
3 in 1 levelling Performace Table:
| material thickness [mm] | material thickness [mm] | ||||||||||||
| 0.6 | 1.0 | 1.3 | 1.6 | 2.0 | 2.3 | 2.8 | 3.2 | 4.0 | 4.5 | 5.0 | 6.0 | ||
|
feeding width [mm] |
NCSF8-600F | 600 | 455 | 363 | 260 | ||||||||
| NCSF8-800F | 800 | 457 | 390 | 322 | 260 | ||||||||
| NCSF8-1000F | 1000 | 360 | 457 | 385 | 307 | 230 | |||||||
| NCSF8-1300F | 1300 | 490 | 357 | 457 | 370 | 290 | 203 | ||||||
Machine Models:
| Types | NCSF8-600F | NCSF8-800F | NCSF8-1000F | NCSF8-1300F |
| Material width mm | 70～600 | 70～800 | 70～1000 | 70～1300 |
| Material thickness mm | 0.6-6.0 | |||
| Max coil weigth kgs | 5000 | 7000 | ||
| coil inner diameter mm | 508 | |||
| coil outer diameter mm | 1500 | |||
| max speed m/min | 22 | |||
| feeding accuracy mm | ±0.15 | |||
| straightening rollers mm | ￠68×9pcs(up 5/ bottom 4) | |||
| feeding rollers sets | 1 | |||
| feeding heights mm | With | |||
| voltages | 1200(or customer customized)±100 | |||
|
air pressure kg/cm2
|
220VAC 60HZ/AC380v 50HZ | |||
| coil expansion mode | 5 | |||
| servo motor kw | hydraulic | |||
| Model | AC5.5 | AC7.5 | AC11 | |
|
uncoiler motor kw |
2.2 | 3.7 | ||
