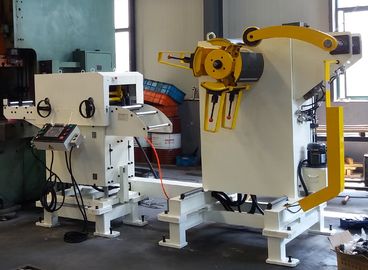

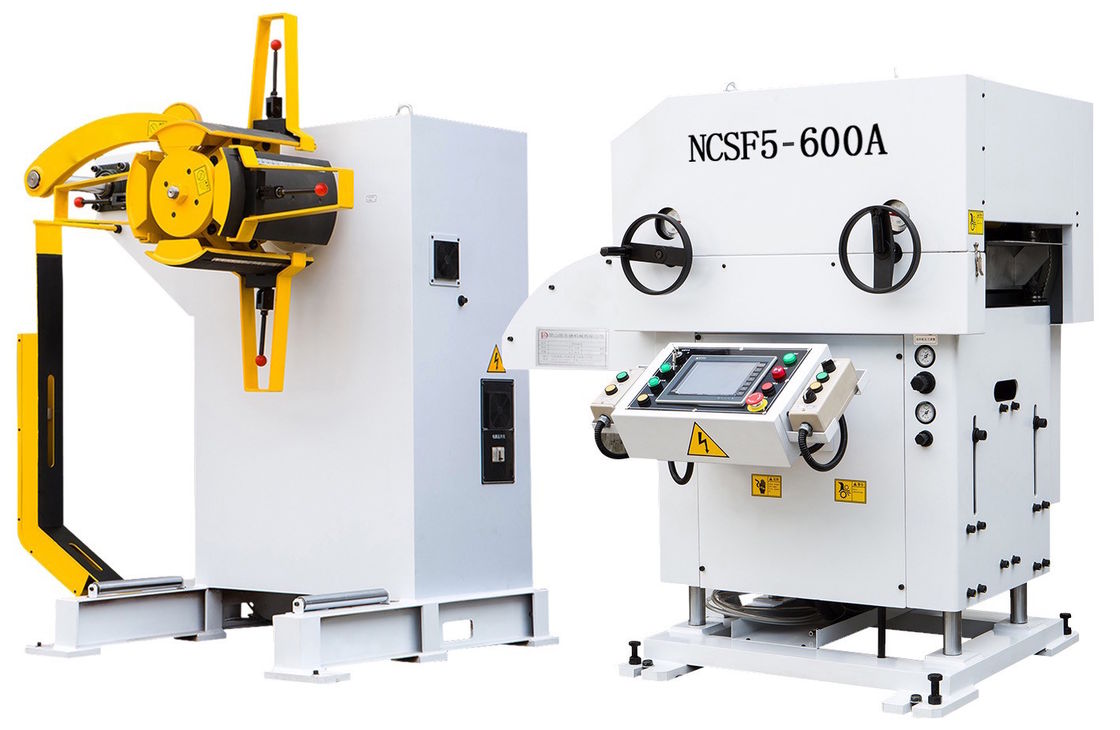

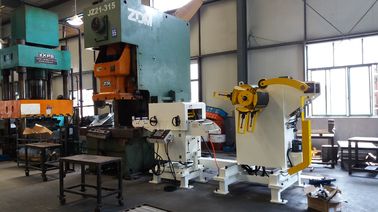

3 in 1 Standard thinner material coil feeding line : uncoiler, straightener, and feeder
Model:
NCSF5
Usage:
For 0.3-3.2 mm thinner sheet thickness coil uncoilling, straightenning, and feeding
Characteristic:
1. This machine 3 in 1 adopts coil bottoom inlet mode. It is suitable for 0.3--3.2 mm thickness material with 0-1300mm width coil punching uncoiling, straightening and feeding
2, press arm with pneumatic mode can avoid coil loose, and mathced with material inlet plate to press the coil head flat, and let the material smoothly ienter into the machine.
3, we use 11 pcs of straightening rollers, and rollers material is high strength bearing steel GCr15 with quenched and tempered by high frequency treatment, surfaace hard chrome hardness can reach HRC60 ~ 62 degrees, the dimensional accuracy 0.01mm, which strictly ensures straighening roller surface smoot, during the straightening procee, to make ensure the coil material surface performance
4, The materil on the uncoilling frame is controlled by below photoelectric device, the straightening head can make material straightening, and at the same time, send the length-setting materail to the punching or press machine, and throught the punching machine gives signal, the uncoiler looses the material, and press down, and guide material
5, the auxiliary device is operated by air or electricity as the power source, simple operation, easy maintenance, after debugging, the failure rate is low.
6. The feeding trolley device can be used to save the feeding time, improve work efficiency, save manpower and achieve manual operation.
Machine Overall Size Drawing:
Stranghtening Performace Charte:
| Model | material thickness [mm] | ||||||||
| 0.3 | 1.3 | 1.6 | 2.0 | 2.3 | 2.5 | 2.8 | 3.2 | ||
|
feeding width [mm] |
NCSF5-400 | 400 | 300 | 230 | 150 | 110 | |||
| NCSF5-500 | 500 | 400 | 360 | 300 | 230 | 150 | 110 | ||
| NCSF5-600 | 600 | 470 | 360 | 300 | 230 | 150 | 110 | ||
| NCSF5-800A | 800 | 480 | 360 | 370 | 320 | 250 | 220 | ||
| NCSF5-1000A | 1000 | 430 | 350 | 330 | 290 | 250 | 200 | ||
| NCSF5-1300A | 1300 | 430 | 350 | 330 | 290 | 250 | 200 | ||
Machine Models:
| Model | NCSF5-400A | NCSF5-500A | NCSF5-600A | NCSF5-800A | NCSF5-1000A | NCSF5-1300A |
| Material width[mm] | 50～400 | 50～500 | 50～600 | 70～800 | 70～1000 | 70～1300 |
| Material thickness[mm] | 0.3-3.2 | |||||
| Max coil weigth [kg] | 3000(5000) | 5000(7000) | ||||
| coil inner diameter[mm] | ￠508 | |||||
| coil outer diameter [mm] | ￠1200 | ￠1400 | ||||
| max speed[m/min] | 16 | 22 | ||||
| feeding accuracy [mm] | ±0.15 | |||||
| straightening rollers [mm] | ￠48×11 pcs(up 6/ bottom 5) | ￠48×7 pcs( up 4/ bottom 3) | ||||
| feeding rollers [sets] | 1 | |||||
| feeding heights[mm] | 1150±100 | 1200±100 | ||||
| voltages | 220VAC 60HZ/AC380v 50HZ | |||||
| air pressure[kg/cm2] | 5 | |||||
| coil expansion mode | hydraulic | |||||
| servo motor[kw] | AC3.0 | AC4.4 | AC5.5 | |||
|
uncoiler motor [kw] |
1.5(2.2) | 2.2(3.7) | ||||
