Long Woking Life Radial Drilling Machines Hand Drill Machine Z3050x16
Application:
Have universal purposes, adaptable for driling, reaming, milling on middle and large workpieces, boring can be also operated
Quick Details:
Machine type: reaming drill
Max drilling diameter: 50mm
Advantage: Hydraulic control
Clamp system: hydraulic type

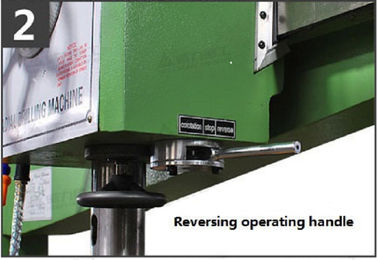

Ram motion: hydraulic control and manual operation
Technical Parameters:
Mode: Z3050x16
| Specification | Parameter | |
| Max. drilling diameter | 50mm (2") | |
| Distance from spindle centerline to column surface. | Max. | 1600mm (63") |
| Min. | 350mm (13.8") | |
| Horizontal movement distance of headstock | 1250mm (49.2") | |
| Distance from spindle nose to working table surface of base | Max. | 1220mm (48") |
| Min. | 320mm (12.6") | |
| Arm hoisting distance | 580mm (22.8") | |
| Arm elevating speed |
0.02m／s (0.75 inch / s ) (50Hz) 0.024m／s (0.945 inch / s ) (60Hz) |
|
| Arm swiveling degree | ±180° | |
| Spindle taper | MT 5# | |
| Speed range of spindle | 25～2000r／min | |
| Speed steps of spindle | 16 steps | |
| Spindle feed range |
0.04～3.2 mm／r 0.0016～0.126 inch ／r |
|
| Spindle feed steps | 16 (steps) | |
| Spindle stroke | 315mm/ (12.4") | |
| The drilling depth of dial per revolution | 122mm (4.8") | |
| Spindle allowable maximum torque | 500N.M | |
| Spindle allowable maximum feed resistance | 18000N | |
| Main motor power | 4KW | |
| Power of arm elevating motor | 1.5KW | |
| Power of hydraulic clamping motor | 0.75KW | |
| Power of cooling pump motor | 0.09KW | |
| Weight(approximately) | 3500Kg | |
| Overall dimensions (L×W×H) |
2500×1070×2840mm 98.4"×42.1"×111.8" |
|
Packing list
| No. | Name | Specification | Qty | Remark | |
| 1 | Machine | Z3050×16/1 | 1 | Elevating motor was dismantled, it need to be installed by user. | |
| 2 | Table | 630×500×500 | 1 | It is on the base of the machine. | |
| 3 | Hexagon nut | M24 | 12 pieces |
There are 5 pieces on the machine. |
|
| 4 | Foundation bolt | M24×450 | 6 pieces | ||
| 5 | T-slot bolt | M24 | 6 pieces |
There are 5 pieces on the machine. |
|
| 6 | Washer | 24 | 12 pieces |
There are 5 pieces on the machine. |
|
| Technical document | |||||
| No. | Name | Qty | Remark | ||
| 1 | Operation manual | 1 | |||
| 2 | Radial drilling machine installation guide | 1 | |||
| 3 | Packing list | 1 | |||
| 4 |
MT3/1;3/2;4/3;5×4
|
Each 1 | |||
Wearing Parts:
| No. | Name | Specification | Qty | Remark |
| 1 | Mat | 4 | 5 | |
| 2 | Mat | 6 | 5 | |
| 3 | Mat | 8 | 5 | |
| 4 | Mat | 10 | 2 | |
| 5 | O shape circle | 7x1.9 | 5 | |
| 6 | O shape circle | 9x1.9 | 5 | |
| 7 | O shape circle | 11x1.9 | 5 | |
| 8 | O shape circle | 13x1.9 | 2 |
Packageing & Delivery
Packaging details:Plywood case
Delivery detail: 55-60 days
The Main Structure Character
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
