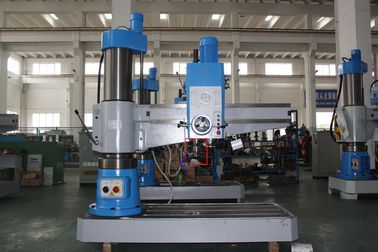

Q235 Or Q345 Mild Steel Radial Drilling Machine For Reaming Milling Z3032x10

Q235 Or Q345 Mild Steel Radial Drilling Machine For Reaming Milling Z3032x10
Q235 Or Q345 Mild Steel Radial Drilling Machine For Reaming Milling Z3032x10

Large Image :  Q235 Or Q345 Mild Steel Radial Drilling Machine For Reaming Milling Z3032x10

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: Z3032X10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Max Drilling Hole Diameter: 32 Mm
High Light:

heavy duty drill machine


hydraulic drilling machine

Q235 Or Q345 Mild Steel Radial Drilling Machine For Reaming Milling Z3032x10




Have universal purposes, adaptable for milling on middle and large workpieces, boring ,driling, reaming,can be also operated



Radial Drilling machine  Parameters:

Mode: Z3032x10

  Unit Specification Z3032x10
Table   400X400X550
Dimensions of Box Table mm 400X550
T-slot No. 5
Distance between two adjacent T-slots   135,150
Width of T-slot   18
Dimensions of base mm 1710X800X160
Working surface of base mm 1030X654
T-slot/Width/Distance   3/22/200
Max. load of Table kg
machining range :
Distance from spindle axis to column mm 300-1000
Distance from spindle nose to table surface mm 250-1000
spindle head travel(horizontal) mm 700
spindle :
Spindle taper   (Morse No.4)
Quill travel mm 280
Max.drilling diameter mm 32
Max.tapping diameter mm
Speed Range /steps rpm 32-2500(16)
max.output torque of spindle N.m 200
Spindle feed/steps mm/r 0.10-1.25/8
Spindle motor power kW 2.2
Elevating motor kW 0.75
Coolant pump kW 0.075
Clamping type   MECHNICAL
Overall dimension (L*W*H) mm 1760X2300X800



Packageing & Delivery

Packaging details:Plywood case

Delivery detail: 55-60 days



The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.



Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.



1. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

2. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

3. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.


4. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.
5. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.
6. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
