Energy Efficient 125 Ton CNC Hydraulic Press Brake with 3200 mm Table Length and 40% Energy Saving

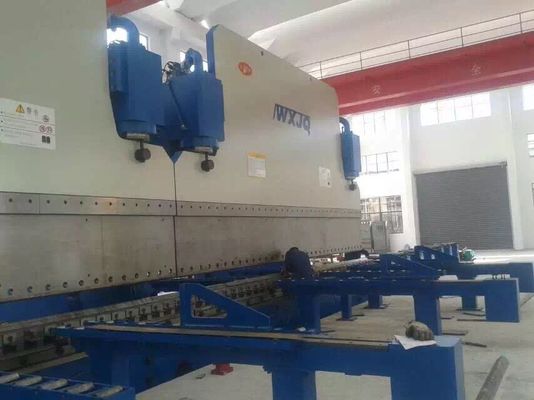

Large Image : Energy Efficient 125 Ton CNC Hydraulic Press Brake with 3200 mm Table Length and 40% Energy Saving

Product Details:

Place of Origin:	Wuxi, Jiangsu, China
Brand Name:	WNRLN
Certification:	CE, ISO 9001
Model Number:	WC67K-125/3200 SE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 22,000-38,000 / Set
Packaging Details:	Export-grade wooden case with reinforced steel strapping and full moisture barrier
Delivery Time:	15-30 working days after order confirmation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	50 Sets per Month

Contact Now

Detailed Product Description

Nominal Press Force:	125 Ton (1250 KN)	Length Of Table:	3200 Mm
Distance Between Housings:	2600 Mm	Throat Depth:	400 Mm
Ram Stroke:	200 Mm	Ram Speed:	120 / 10 / 100 Mm/s
Open Height:	500 Mm	Main Motor Power:	11 KW (Servo Pump)
Oil Tank Volume:	250 L (Reduced Due To Servo System)	Machine Weight:	8,500 Kg
Pump System:	Servo Motor Driven Hydraulic Pump	Energy Saving Rate:	Up To 40% Vs Conventional Hydraulic
Noise Level:	<68 DB (energy Saving Mode)	Controller System:	Delem DA52S (Netherlands)
Voltage:	220V / 380V / 440V 3-Phase Customizable
Highlight:	Servo Pump Energy Saving , Eco Efficient Hydraulic System , Low Power Consumption Bending

Energy Efficient Servo Pump CNC Hydraulic Press Brake Bending Machine with Eco Saving System Metal Fabrication

Energy Efficient Servo Pump CNC Hydraulic Press Brake

Introduce green manufacturing to your fabrication shop with the WC67K-125/3200 SE, a next-generation CNC press brake featuring servo pump technology that reduces energy consumption by up to 40% compared to conventional hydraulic systems. This machine delivers both environmental benefits and significant operational cost savings without compromising bending power or precision.

How Servo Pump Energy Saving Works

On-Demand Power: Unlike traditional fixed-displacement pumps that run continuously, the servo-driven pump only activates during the bending cycle. During idle, loading, and unloading phases, the motor draws minimal standby power — eliminating the constant energy waste of conventional systems.
Reduced Oil Volume: The efficient servo system requires a smaller hydraulic tank (250L vs 400L in conventional 125T machines), reducing hydraulic oil costs, maintenance frequency, and environmental disposal burden.
Lower Noise Operation: Operating below 68 dB in energy-saving mode, this machine is significantly quieter than standard hydraulic presses — improving the shop floor working environment and meeting stricter noise regulations.
Less Heat Generation: The servo pump generates substantially less heat, reducing the need for oil cooling systems and extending hydraulic component service life.
Delem DA52S Controller: Intelligent Dutch CNC system optimizes bending sequences to further minimize energy use while maintaining cycle throughput.

Technical Specifications

Parameter	Specification
Nominal Press Force	125 Ton (1250 KN)
Length of Table	3200 mm
Distance Between Housings	2600 mm
Throat Depth	400 mm
Ram Stroke	200 mm
Ram Speed	120 / 10 / 100 mm/s
Open Height	500 mm
Main Motor Power	11 KW (Servo Pump)
Machine Weight	8,500 kg

Financial & Environmental Benefits

Metric	Conventional 125T	Servo Pump 125T SE
Average Power Consumption	~11 KW continuous	~6.6 KW effective (40% saving)
Annual Electricity Cost (8h/day)	Baseline	Save ~$3,000-5,000/year
Hydraulic Oil Volume	400 L	250 L
Noise Level	~78 dB	<68 dB
Oil Temperature Rise	~25 C	~12 C

This machine is ideal for manufacturers targeting European and North American markets where energy efficiency and environmental compliance are key purchasing criteria. It handles carbon steel, stainless steel, aluminum, and galvanized sheets with the same precision and reliability as our conventional press brakes.

Contact our team to calculate your potential energy savings and receive a personalized ROI analysis.
