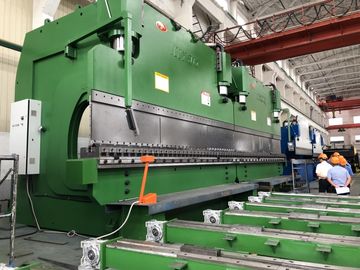

CNC Tandem Press Brake High Mast Making Machine To Bend 12m 14m And 16 M

Name: CNC Tandem Press Brake High Mast Making Machine To Bend 12m 14m And 16 M
Brand: Jinqiu
SKU: 2-WE67K-1000/7000
Rating: 5 (145 reviews)

Large Image : CNC Tandem Press Brake High Mast Making Machine To Bend 12m 14m And 16 M

Product Details:

Place of Origin:	China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name:	Jinqiu
Certification:	CE and CQC
Model Number:	2-WE67K-1000/7000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD or RMB
Packaging Details:	metal steel frame
Delivery Time:	55-60 days
Payment Terms:	L/C, T/T
Supply Ability:	150 pcs per month

Contact Now

Detailed Product Description

Pressure:

1000 Ton

Pole Length:

14000 Mm;

High Mast Thickness:

Q345,16mm

Name:

CNC Press Brake

Highlight:

metal bending brake

sheet metal brake

1000 ton cnc tandem press brake

CNC HYDRAULIC PRESS BRAKE MODEL: 2-WE67K-1000/7000

Application: making light pole and high mast

1		Light pole side unloading system
2		Two sets of Punch holder: thickness is 18mm and 40mm
3		Motorized front feeding system, for big thickness pole
4		Motorized type back gauge
5		the bottom die is open width adjustable type

TECHNICAL FEATURES
1	Type		Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2	Working force		1000Ton
3	Length of table		7000mmx2
4	distance between frames		5000mm
5	Throat depth		1600 mm
6	Open height		1350 mm
7	Stroke		400mm
8	Working Speed	Unload	70mm/s
		Working	8mm/s
		Return	70mm/s
9	Main motor		2x45kw
10	CNC system		Type: DELEM DA52 Y1,Y2 Delem Co., Netherlands 2 (Y1,Y2)+1 axis for work table crowing
11	Tool		With 1 punching and 1 multi bottom die, the bottom die is open width adjustable type Two sets of up tool holder thickness is 18mm And 40mm The working table with crowning system With electric front and back sheet supporting device Light pole side unloading system
12	Seal in the cylinders		SKF
13	Hydraulic components		BOSCH-Rexroth - , Germany
14	Hydraulic pump		Nitch, Japan
15	Linear Raster displayer sensor		HEIDENHAIN , GERMANY
16	Main Electric Elements in cabinet		Schneider
17	Gross weight		2x133800 kg
18	Overall size(mm) LxWxH		2x7240x4585x6410
19	Packing:		The machine should be disassembled during transportation. Our engineer should go to customer to assemble and adjust it.
20	Containers quantity		20 feet Flat rack---4 pcs, with width is 4600mm 40 feet HQ container---4 pcs 40 feet container---2 pcs
