Precision CNC Hydraulic Press Brake with Servo Motor Back Gauge and Ball Screw Linear Guideway for ±0.05mm Accuracy

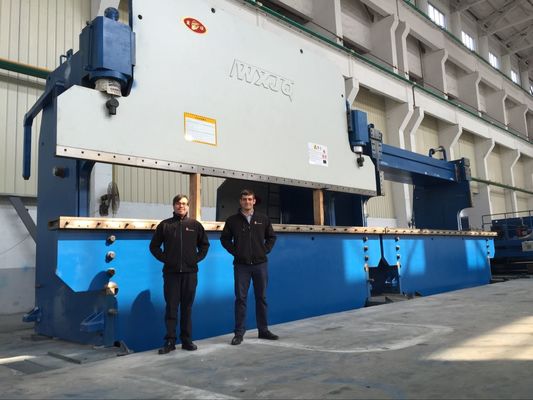

Large Image : Precision CNC Hydraulic Press Brake with Servo Motor Back Gauge and Ball Screw Linear Guideway for ±0.05mm Accuracy

Product Details:

Place of Origin:	Wuxi, Jiangsu, China
Brand Name:	WNRLN
Certification:	CE, ISO 9001
Model Number:	WC67K-100/3200 SBG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 18,000-32,000 / Set
Packaging Details:	Export-grade plywood case with anti-rust coating, foam padding, and forklift access
Delivery Time:	10-25 working days after order confirmation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	60 Sets per Month

Contact Now

Detailed Product Description

Nominal Press Force:	100 Ton (1000 KN)	Length Of Table:	3200 Mm
Distance Between Housings:	2600 Mm	Throat Depth:	400 Mm
Ram Stroke:	200 Mm	Ram Speed:	90 / 8 / 75 Mm/s
Open Height:	450 Mm	Main Motor Power:	7.5 KW
Oil Tank Volume:	280 L	Machine Weight:	7,500 Kg
Back Gauge System:	Servo Motor X-axis, Ball Screw Drive, Linear Guideway	Back Gauge Positioning Accuracy:	±0.05 Mm
Back Gauge Travel:	600 Mm	Controller System:	Delem DA41 / E21 Optional
Voltage:	220V / 380V / 440V 3-Phase Customizable
Highlight:	Servo Motor Back Gauge , Ball Screw Linear Guideway , Precision Position Control

Precision Servo Motor Back Gauge CNC Hydraulic Press Brake Bending Machine with Ball Screw Linear Guideway

Precision Servo Motor Back Gauge CNC Hydraulic Press Brake

The WC67K-100/3200 SBG is engineered for batch production excellence with its advanced servo-driven back gauge system featuring precision ball screw and linear guideway. This configuration delivers repeatable positioning accuracy of ±0.05mm, making it the ideal choice for manufacturers who demand consistent part quality across thousands of production cycles.

Servo-Driven Back Gauge Advantages

Ball Screw & Linear Guideway: Unlike conventional chain-driven or manual back gauges, the precision ball screw mechanism paired with linear guideway eliminates backlash and ensures smooth, accurate positioning every cycle.
±0.05mm Positioning Accuracy: Servo motor feedback control maintains tight tolerances — critical for parts that must fit precisely into welded assemblies or downstream automated processing lines.
Batch Consistency: Program once, run thousands. The servo back gauge repeats the exact position automatically, dramatically reducing scrap rates and rework from manual adjustment errors.
600mm X-Axis Travel: Extended back gauge range accommodates diverse part sizes without mechanical reconfiguration, expanding the machine's application versatility.

Technical Specifications

Parameter	Specification
Nominal Press Force	100 Ton (1000 KN)
Length of Table	3200 mm
Distance Between Housings	2600 mm
Throat Depth	400 mm
Ram Stroke	200 mm
Ram Speed	90 / 8 / 75 mm/s
Open Height	450 mm
Main Motor Power	7.5 KW
Machine Weight	7,500 kg

Batch Production Applications

This machine excels in electrical panel fabrication, automotive bracket production, shelving and racking manufacturing, furniture components, lighting fixture production, and any application where large quantities of identical bent parts must be produced with minimal dimensional variation.

Compatible with carbon steel, stainless steel, aluminum, and galvanized sheets up to 6mm thickness (material-dependent). The welded steel frame with vibration stress relief ensures long-term stability for continuous multi-shift operation.

Contact our technical sales team for a detailed accuracy demonstration and competitive pricing.
