4+1 Axis CNC Hydraulic Press Brake with Delem DA53T Controller for 135 Ton Sheet Metal Bending

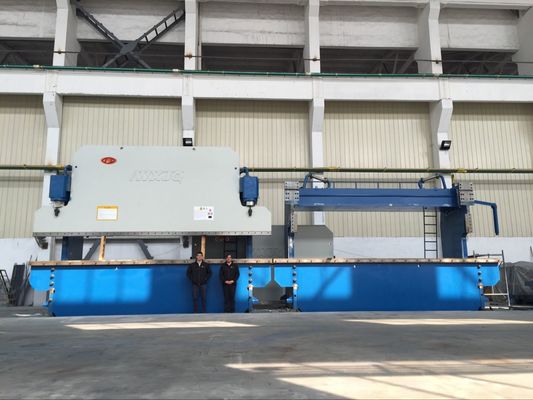

Large Image : 4+1 Axis CNC Hydraulic Press Brake with Delem DA53T Controller for 135 Ton Sheet Metal Bending

Product Details:

Place of Origin:	Wuxi, Jiangsu, China
Brand Name:	WNRLN
Certification:	CE, ISO 9001
Model Number:	WC67K-135/3200 DA53T

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 28,000-48,000 / Set
Packaging Details:	Export-grade wooden case with anti-rust film, silica gel desiccant, and corner reinforcement
Delivery Time:	15-30 working days after order confirmation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	40 Sets per Month

Contact Now

Detailed Product Description

Nominal Press Force:	135 Ton (1350 KN)	Length Of Table:	3200 Mm
Distance Between Housings:	2600 Mm	Throat Depth:	400 Mm
Ram Stroke:	200 Mm	Ram Speed:	100 / 8 / 80 Mm/s
Open Height:	500 Mm	Main Motor Power:	11 KW
Oil Tank Volume:	350 L	Machine Weight:	9,500 Kg
Controller System:	Delem DA53T 4+1 Axis (Y1,Y2,X,R+Crowning)	Back Gauge:	Servo Driven X-axis 600mm, R-axis ±200mm
Voltage:	220V / 380V / 440V 3-Phase Customizable
Highlight:	4 Axis CNC Bending Control , Delem DA53T Touch Controller , Multi Coordination Bending

4 Plus 1 Axis CNC Hydraulic Press Brake Delem DA53T Multi Axis Control Bending Machine for Sheet Metal

4 Plus 1 Axis CNC Hydraulic Press Brake with Delem DA53T Controller

Take your sheet metal bending capability to the next level with the WC67K-135/3200 DA53T, featuring a 4+1 axis multi-axis CNC control system. The premium Delem DA53T controller manages Y1, Y2, X, R axes plus automatic worktable crowning, providing unparalleled flexibility for complex multi-bend parts in a single setup.

Multi-Axis Control Advantages

4+1 Axis Configuration: Independent Y1 and Y2 ram axes for tilt bending, servo-driven X-axis back gauge for precise positioning, R-axis for back gauge vertical height adjustment, plus automatic hydraulic crowning.
Delem DA53T Touch Screen Controller: 2D graphical programming with automatic bend sequence calculation, tool and material library, angle correction database, and USB data transfer — reducing programming time from 30+ minutes to under 5 minutes.
Complex Part Processing: Multi-axis coordination enables step bending, radius bending, hemming, and conical bending in a single setup — eliminating the need for multiple machines or manual re-handling.
BOSCH Electro-Hydraulic Proportional Valves: Ensures precise cylinder synchronization with closed-loop feedback from dual raster displays, achieving consistent results even under eccentric load conditions.

Technical Specifications

Parameter	Specification
Nominal Press Force	135 Ton (1350 KN)
Length of Table	3200 mm
Distance Between Housings	2600 mm
Throat Depth	400 mm
Ram Stroke	200 mm
Ram Speed	100 / 8 / 80 mm/s
Open Height	500 mm
Main Motor Power	11 KW
Oil Tank Volume	350 L
Machine Weight	9,500 kg

Who Needs Multi-Axis Control?

Manufacturers producing electrical enclosures, control cabinets, furniture components, HVAC ducting, and architectural metalwork gain the most from multi-axis capability. The ability to program complex bend sequences digitally slashes setup time and eliminates costly trial-and-error on the shop floor.

Each machine ships with commissioning support, operator training manuals, and CE/ISO 9001 certification documentation.
