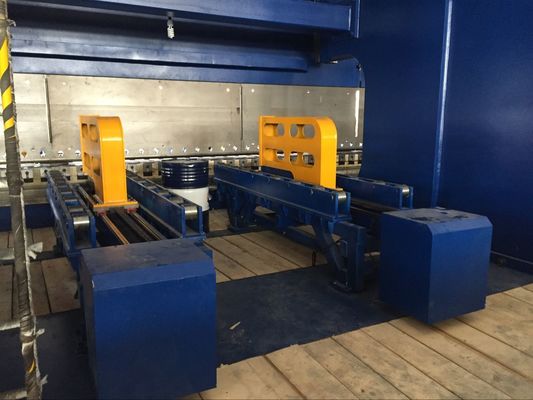

6000mm Long Worktable CNC Hydraulic Press Brake with Delem DA52S Controller and 160 Ton Press Force

Large Image : 6000mm Long Worktable CNC Hydraulic Press Brake with Delem DA52S Controller and 160 Ton Press Force

Product Details:

Place of Origin:	Wuxi, Jiangsu, China
Brand Name:	WNRLN
Certification:	CE, ISO 9001
Model Number:	WC67K-160/6000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 35,000-60,000 / Set
Packaging Details:	Export-grade wooden case with anti-rust protection and reinforced bracing
Delivery Time:	20-40 working days after order confirmation
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 Sets per Month

Contact Now

Detailed Product Description

Nominal Press Force:	160 Ton (1600 KN)	Length Of Table:	6000 Mm
Distance Between Housings:	4800 Mm	Throat Depth:	400 Mm
Ram Stroke:	250 Mm	Ram Speed:	75 / 7 / 60 Mm/s
Open Height:	550 Mm	Main Motor Power:	18.5 KW
Oil Tank Volume:	500 L	Machine Weight:	22,000 Kg
Controller System:	Delem DA52S 3+1 Axis (Y1,Y2,X+Crowning)	Back Gauge:	Servo Motor Driven X-axis, 800mm Travel
Voltage:	220V / 380V / 440V 3-Phase Customizable
Highlight:	6000mm Long Bending Length , Delem DA52S CNC Control , Large Format Sheet Metal

6000mm Long Worktable CNC Hydraulic Press Brake Bending Machine with Delem DA52S Controller Steel Fabrication

6000mm Long Worktable CNC Hydraulic Press Brake Bending Machine

Purpose-built for large-format sheet metal fabrication, the WC67K-160/6000 CNC hydraulic press brake features an exceptional 6000mm worktable length, enabling manufacturers to process oversized panels, long structural components, and extended metal sheets in a single setup without repositioning.

Why Choose a 6000mm Long Worktable Press Brake?

Single-Pass Bending: Process sheets up to 6 meters in one continuous operation, eliminating the need for multiple setups and repositioning that compromise accuracy.
Delem DA52S 3+1 Axis CNC System: Advanced Dutch controller manages Y1, Y2, X axes plus automatic crowning compensation, with graphic programming interface and automatic bend sequence optimization.
Hydraulic Deflection Compensation: Critical for extra-long worktables — the built-in crowning system actively counteracts machine frame deflection, maintaining uniform bend angles from edge to edge across the full 6-meter span.
Servo-Driven Back Gauge: Precision X-axis back gauge with 800mm travel ensures accurate and repeatable material positioning for consistent batch production.

Technical Specifications

Parameter	Specification
Nominal Press Force	160 Ton (1600 KN)
Length of Table	6000 mm
Distance Between Housings	4800 mm
Throat Depth	400 mm
Ram Stroke	250 mm
Ram Speed	75 / 7 / 60 mm/s
Open Height	550 mm
Main Motor Power	18.5 KW
Oil Tank Volume	500 L
Machine Weight	22,000 kg

Applications

Ideal for manufacturing long structural beams, architectural metal panels, trailer and truck body components, railway carriage parts, solar panel frames, and large enclosure fabrication. Suitable for carbon steel, stainless steel, and aluminum sheets up to 8mm thickness (material-dependent).

Each machine is CE and ISO 9001 certified, with comprehensive pre-delivery inspection. We provide full installation support and operator training documentation.

Contact our sales team to discuss your large-format bending requirements and receive a tailored solution.
