Saving 40%-50% Drying Time Transformer Manufacturing Machinery For Power Transformer

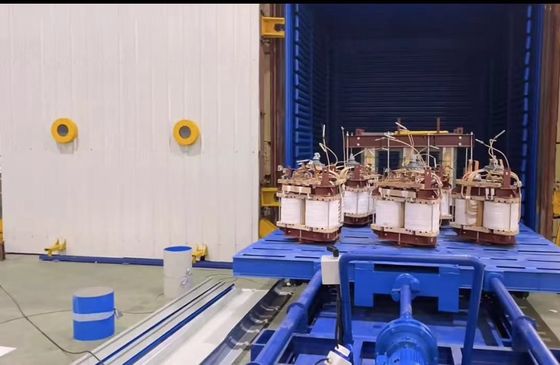

Transformer vacuum drying equipment

Introduction:
The transformer vacuum drying equipment is a unique technical product developed by our company based on domestic traditional technology, combined with the company's experience in the design and production of vacuum equipment.
This equipment is mainly used for drying the bodies of oil-immersed transformers, mutual inductors, capacitors, reactors and other products. It reduces drying time by 40% -50% compared to conventional vacuum drying, and is a reliable and energy-efficient process equipment.

Characteristics of condenser:
The condenser adopts a horizontal design, made of stainless steel material, and can control automatic water recovery.
The chillers can provide a cold water system below 10 degrees Celsius dedicated to the condenser, ensuring condensation efficiency and minimizing the impact of water on vacuum oil.

Heating and pressure control:
During the heating process, the pressure is automatically varied according to the temperature changes of the body, periodically reducing the pressure inside the vacuum tank to a reasonable value.
It creates the most suitable conditions for the insulation moisture evaporation of the body, ensuring a smooth process of moisture evaporation in the drying process.

Core rust problem:
This equipment can effectively solve the rust problem during core drying, with a drying effect reaching the center of insulation.

Vacuum detection:
The equipment uses pressure transmitters and vacuum gauges with two ranges for detecting vacuum signals, ensuring accurate and reliable control processes.

Electrical control system:
The electrical control system adopts brand-name electrical components for reliable and safe control.

Device safety and reliability:
Designed and manufactured according to national standards to ensure safe operation of the equipment and complete protection.
The square tank door adopts a double-vacuum sealing structure, significantly improving sealing reliability.

Modular design:
The main components of the system are designed modularly, fully assembled and tested before delivery, greatly reducing on-site installation workload while improving installation reliability and quality.

Automation level:
Highly automated, with fully automatic operation and optional touch screens.
