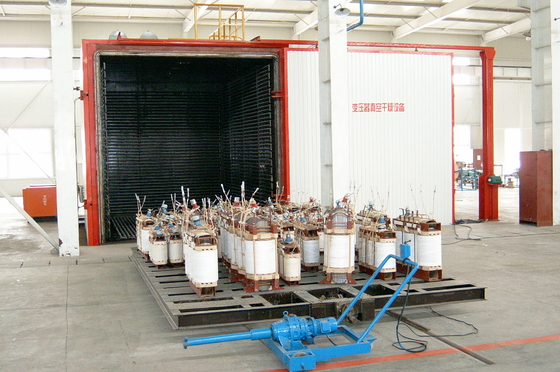

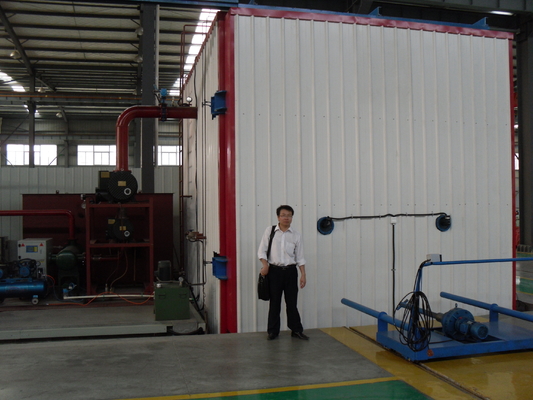

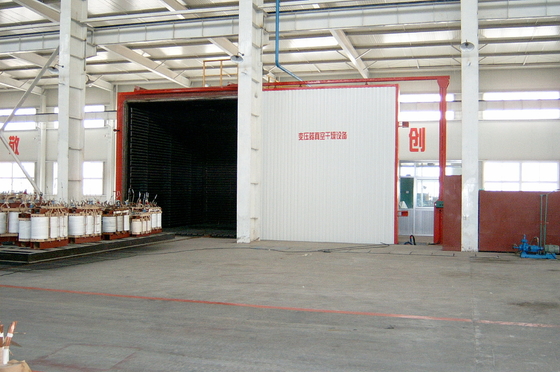

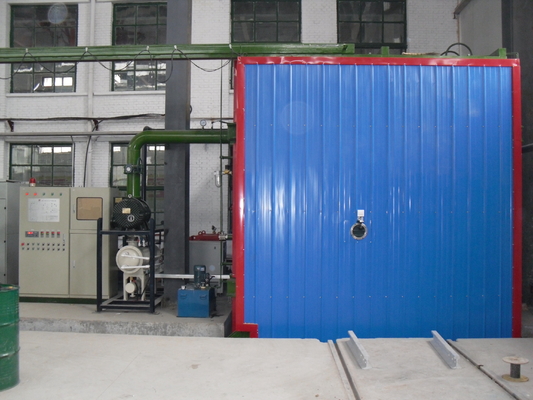

PLC Touch Scren Control Power Transformer Vacuum Drying Tank With Germany Leybold Vacuum Pump

Brief Introduction:

Transformer vacuum drying equipment is improved on the basis of our company at home and abroad, and I am in the vacuum equipment design, manufacturing experience, user experience and developed, and
the equipment is mainly used for oil-immersed transformers,transformers,capacitors, reactors, and other products of the body is dry, than conventional vacuum drying reduces drying time 40%--50%,Is a reliable, energy-efficient technology and equipment equipment.
Scope of application: 10-110KV Level,100000KV Capacity of dry transformer 110-500KV Voltage transformer coil dry.
Transformation method of vacuum drying equipment for product heating, vacuum tank is dry evaporation of water vapor as a heat transfer medium, in the heater and the dry heat exchange products. This heating is similar to coal, oil and gas-phase dry heat. Heater uniformity is very good, high heating efficiency and reliability.

Main Technical Characteristics:

1,This equipment is mainly used for the 35KV,110KV220KV Vacuum drying of transformers,the device runs low cost efficiency and so on.

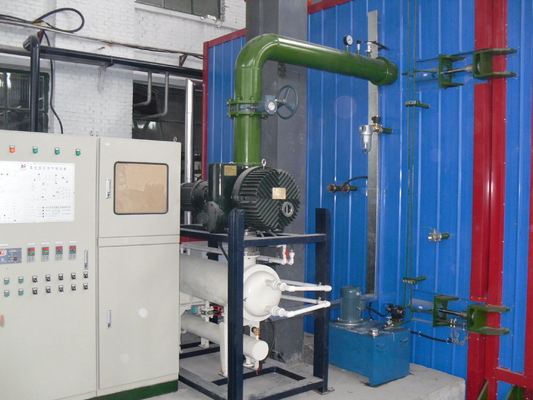

2,Device vacuum drying system low temperature condensation system, transformers, vacuum unit, heating systems, pneumatic tube system, cooling system, hydraulic locking system and the control system.
3,Vacuum, vacuum units selection of vacuum pump with the oil-water separation, and reduced operating costs.
4,Use of electricity, heating system and heat-conducting oil heating,
heat conduction oil, heat to the tank, safety, reliability, low running costs.
5,Condenser uses latest achievements in the world, horizontal condenser, stainless steel manufacture, recovery water automatic control. Configure chiller provides 10 degrees cold water system is installed below the condensation, ensure that the condensation effect.
6,Shut the door automatically, motor, hydraulic lock.
7,Electric control system with touch-screen control, automatic control.
8,Compared with traditional vacuum drying and energy saving 35% Above.
