Round Small Transformer Tank Body Making Machine 1220mm

Machine 1: machine  with Φ 310 mold, machine weight is 1000kgs. size: 1300x1200x700

This machine is to roll the sheet into round for tansformer body.

Material thickness: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

Material diameter: diameter range: from. 310 mm to 655 mm

Tank height/length: height range: from. 500 mm to 1220 mm

Machine 2 machine with welding source,machine weight is 200kgs, size: 1380x600x700

This machine is for welding the transformer tank/cylinder body after rolling.

Material thickness: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

Material diameter: diameter range: from. 310 mm to 655 mm

Tank height/length: height range:from. 500 mm to 1220 mm

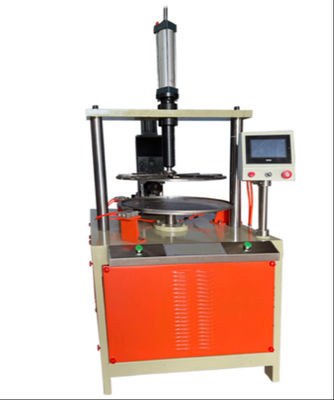

Machine 3 machine with Φ 310 mold, machine weight is 480kgs,size: 1400x1000x2200

 this machine is used to make the cover edge forming

For this cover edge forming machine:

1. Cover diameter range: from. 310 mm to 655 mm
2. Cover thickness range: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

machine 4: machine  Φ 310 mold, machine weight is 880kgs. size: 1500x1200x700

Tank body edge spinning machine

3. tank diameter range: from. 310 mm to 655 mm
4. tank thickness range: mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

5. Tank height/length: height range: from. 500 mm to 1220 mm

Machine 5 machine  one mold/tooling, machine weight is 180kgs. size: 800x600x800

1. pre-machined length: 1012 -2115 mm
2. mild steel 1.9,2.4,and 3 mm

Stainless steel 2.5 mm

3. bent angle: 90 grades angle steel
