Product Details:
Payment & Shipping Terms:
|
| Application: | Transformer Tank Fin Making | Steel Plate Width: | 300-1600mm |
|---|---|---|---|
| Number Of Corrugation Band Sets: | 1-4 Sets | Transformer Folding Height: | 150-400mm |
| Highlight: | transformer manufacturing equipment,transformer coil winding machine |
||
Our machine best advantages: fully automatically to form, one worker can run the machine to save user humanpower. and it can continuelly produce one complete transformer no cutting in the middel.
Infrastruture:
To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.
The factory history in Transformer equipments/Machine:
we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.In China, 80% transoformer produces use our machines.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.

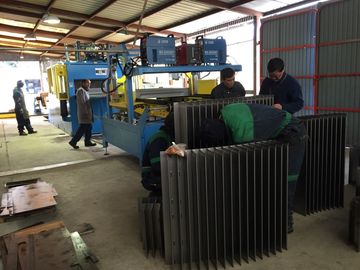

Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.
Product Description:
Main Techincal Parameters
| Item | Parameters | |
| Steel Plate Width (B) | 300~1600mm | |
| Steel plate thickness | 1.0~1.5mm | |
| Corrugation height (h) | 50~400mm | |
| Corrugation pitch (t) | ≥40mm | |
| Net clearance between corrugations (e) | 6mm | |
| Number of corrugation band sets (n) | 1~4 | |
| Corrugation band length (L) | ≤2000mm | |
| Folding height (c) | 15~400mm | |
| Length of box board tips(front gap) (a) | ≥40mm | |
| Length of box board tips(rear gap) (b) | ≥40mm | |
| Total power of motors | 25Kw | |
| Total weight | 17000Kg | |
| Floor space | 9000×6000mm | |
| Equipment running frequency | 50Hz | |
| voltage | 380V three-phase | |

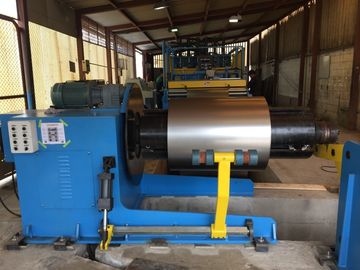

| Max. bearing weight of decoiler | 6000Kg | |
| Max. bearing weight of coil car | 6000Kg | |
| Roll Coil inner diameter scope | 470~520mm (hydraulic operated) | |
| Max. diameter of coil | 1000mm | |
| Decoiler revolve speed | 12rpm | |
| Hydraulic System equipped with two individual filter system(Iron or metal filter system and normal material filter system) | ||
| Embossing function is available: | ||
| Corrugated plate width(mm) | Height(mm) |
Number of embossing |
| 700-1300 | ≥150 (include every10mm stride distance) | 1 |
| ≥250 (include every10mm stride distance) | 2 | |
The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .
Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
