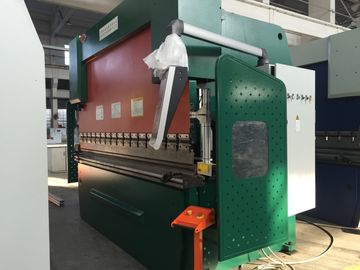

4+1 Axis 200 Ton 3200mm CNC Press Brake Steel Door Panel Bending Machine

steel door panel bending machine-CNC Press Brake Machine with 4+1 axis

200 Ton 3200mm CNC Press Brake Machine with 4+1 axis for door frame

This machine is for our Qatar customer.

He use this machine to bend the door frame, because of door frame is complicated with many

times bending, therefore, in order to improove production speed, we suggest they choose 4+1

axis CNC machine:Y1,Y2,X,R+ worktable crowning system

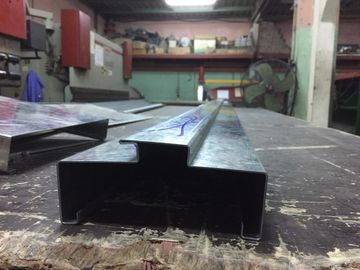

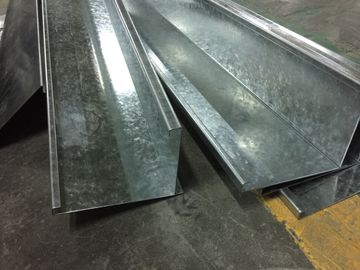

The customer workpiece is below pic: Material is mild steel, when we test, we use stainless steel

This model press brake machine is specially design for bending steel door panel and frame. it is automaticall for bending several differen angles.


Specification:

Model: WE67K-200/3200
Technical Details:
Norminal Press: 200 ton
Length of Table: 3200mm
Distance between Housing: 2650mm
Throat Depth: 320mm
Ram Stroke: 200mm
Ram Speed:80/8/80 mm/s
Open Height: 480 mm
Main Motor: 15 Kw
Controller System:  1. Nether land Brand: Delem DA65W 4+1 axis: Y1,Y2,X,R+ worktable crowning system
Volume of oil tank: 560L
Weight: 10300 kgs
Overall Dimensions: L 3450 mm
                                 W 2145 mm
                                 H 2960 mm

And Because of in Qatar, there is strict requirement for machine safety, therefore, we fit on the machine:


 Germany light safety protection device

Now the machine has passed the testing , we are preparint to delivery the machine.

And at the same time, because of this 4+1 CNC machine, we will send engineer to customer side to teach their workers to use it, especially how to make programming to realize fully automatically.
