Product Details:
Payment & Shipping Terms:
|
| Application: | Winding Medium And Small Transformer | Winding Width: | 1450, 2000,2500mm |
|---|---|---|---|
| Center Height: | 1000,1200,1600 Mm | ||
| Highlight: | transformer manufacturing equipment,transformer machine |
||
transformer high and low voltage winding Machine
Infrastruture:
To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.

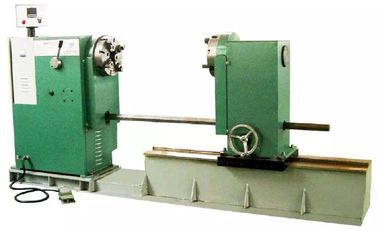

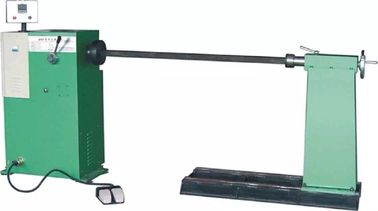

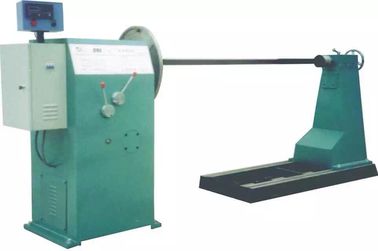

DYJ high and low voltage winding machine is capable of winding medium and small transformers of various specifications. Using mechanic shaft gear with three different transmission ratio, electronic invertibe counter and imported convernter in speed change, the machine is smoothto start up and good in self locking. Low in noise and convenient to operate. The machine performs qualified winding work.
Main Technical Parameters:
| Main Technical Parameters | |
| Item | Parameters |
| DYJ-10t | |
| Winding speed (r/min) | 4/9/11/24 |
| Maximum torque (N.m) | 35000 |
| Maximum load (kg) | 10000 |
| Accessories Long axis | 50×50×3500 |
| Winding width (max.) (mm) | ≤2500 |
| The motor speed | 960 |
| Stern frame adjusting range | 1000 |
| Center height (mm) | 1600 |
| Total weight (kg) | 3500 |
| Power of motor (kw) | 11 |
| Counter by electronic reversible counter (with blackouts memory function) | |
| USES frequency conversion control stepless speed regulation | |
| Lose electric braking functions | |
The Manufacturer history in Transformer equipments/Machine:
we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.
Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.
The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .
Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
