Product Details:
Payment & Shipping Terms:
|
| Slitting Material: | Silicon | Silicon Coil Inner Diameter: | 500mm |
|---|---|---|---|
| Silicon Thickness: | 0.23-0.35mm | Usage: | Transformer |
| Highlight: | transformer manufacturing equipment,transformer coil winding machine |
||
Vertical Shearing Line of Transformer Silicon Steel Sheet --Slitting Line
Infrastruture:
To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.

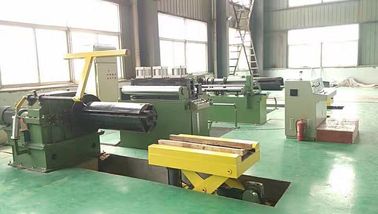

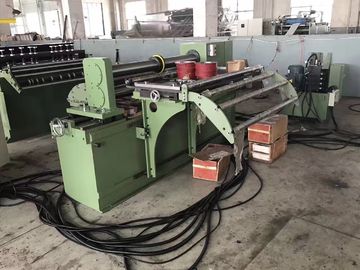

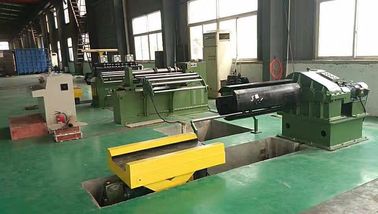

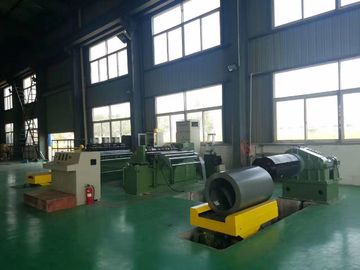

Model ZJX-1250 vertical Shearing Line of Transformer silicon steel sheet/ silicon slitting line is a special equipment that shears the silicon steel sheets into strips. it is composed with different units as material releasing, winding,material guiding and supporting, vertical shearing and straining. This equipment is running under the international advanced drawing and shearing technique, supplied with sintered carbied hobbing cutter, and automatic controlled by PLC, so that a reliable and precision running is ensured.
Main Technical Parameters:
Inner diameter of coiled material: 500mm
weight of coiled material: 7000kgs
Max width of coiled material: 1250mm
Shearing thickness: 0.23-0.35mm
shearing width: 40-1250mm
max shearing speed: 60m/min
shearing burr: less than 0.03mm
unverticality one side: less than 0.2mm/2m
shearing error on width: 0.1mm
knife number: 11 pay
grinding can be a few meters of shear: 100000m
scissors outer diameter: 250mm
scissors trunnion: 125mm
total power of motors: 30 kw
Floor space: 10000x5000 mm
The Manufacturer history in Transformer equipments/Machine:
we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.
Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.
The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .
Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
