Winding Material: | Wire | Winding Width: | Less Than 1000mm |
---|---|---|---|
Max Load: | 1000kgs | Usage: | Transformer |
Highlight: | transformer machine,transformer coil winding machine |
Automatic Wire Ranger and Winder transformer
Infrastruture:
To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.

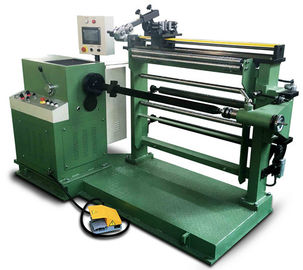

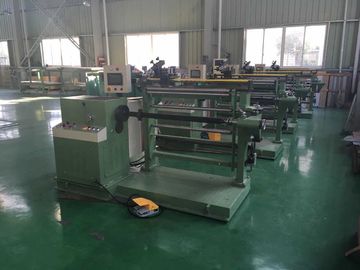

DYJZ automatic wire ranger and winder is a new designed automatic wire ranging and winding machine innovated by our factory. The product has different advantages as stabile transmission, clean arrangement,lower noise, easy operation, frequency inverted controlled, stepless speed adjustment and accurate counting. The wire arrangment device is controlled by intelligent servo system with human-machine interface. The machine is a favourable and economic one among similar products
Main Technical Parameters | |
Item | Parameters |
Center height | 950mm |
Winding diameter (max.) | φ600 mm |
Winding width (max.) | ≤1000mm |
Basic output shaft speed | 226/346/440 r/min |
Stepping scope | 0.1~5mm |
Stepping accuracy | 0.01mm |
Counter maximum set number of turns | 9999.9 |
interface | Color touch screen |
Max. output torque | 156N.m |
Maximum load | 500kg |
Wire specifications |
MAX Flat wire 3×12mm, Round wire 0.1mm~5mm |
Around the spool | 40×40 mm |
Total weight | 1500kg |
Power of motor | 3kw |
Machine tool parts dimension (LxWxH) | 2250×1100×1630mm |
Motion control system adopts the man-machine interface, PLC, servo, rows of host frequency control of motor speed. | |
Power holding function, reversible counting, presetting layer and layer number of turns |
The Manufacturer history in Transformer equipments/Machine:
we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.
Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.
The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .
Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
