Product Details:
Payment & Shipping Terms:
|
| Machine Power: | Hydraulic Type | Usage: | Professional For Press Fan Wire Guard |
|---|---|---|---|
| Press Size: | 16-18 Cm Fan Guard | Capacity: | 25 Ton |
| Production Speed: | 7000-8000 Pcs Fan Guard Every 8 Hours | ||
| Highlight: | metal press machine,power press machine |
||
Fan guard Hydraulic Press Machine 25 ton --complete machines for wire guard
Machines list for making fan guard:
ITEM | | | |
| A single point of machine | 18KVA | PCS | 1 |
| Outer ring machine | 40KVA | PCS | 1 |
| The central machine | 40KVA | PCS | 1 |
| hydraulic press machinery | 7.5KW 25T | PCS | 1 |
| servo CNC machine circle round | 2.2KW | PCS | 1 |
| Weld Spot-weld Machine | 18KVA | PCS | 1 |
| flat edge trimmer | 1.1KW | PCS | 1 |
The following pictures are showed by above sheet:

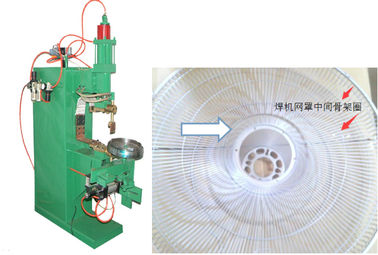

1)A single point of machine for fan guard
| power supply: | 380V-50HZ |
| power | 16KW |
| production quantity | 800-1000 PCS |
| current | 10-20A |
| size(L*W*H) | 1750*1000*1370(mm) |
| weight | 480KG |
| Air Comsumption: | 0.5MPa |

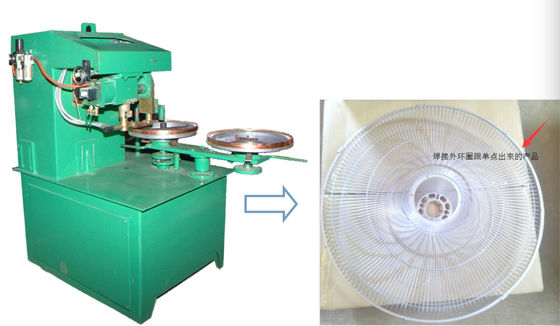

2)Outer ring machine for fan guard
| power supply: | 380V-50HZ |
| power (kw): | 50KW |
| production quantity | 2000 PCS |
| current: | 30-40A |
| size(L*W*H) | 1650*900*1600(mm) |
| weight: | 450KG |
| Air Comsumption: | 0.5MPa |
| power supply: | 380V-50HZ |
| power (kw): | 50KW |
| production quantity: | 4000 pcs |
| current: | 30-40A |
| size(L*W*H) | 1300*700*1850(mm) |

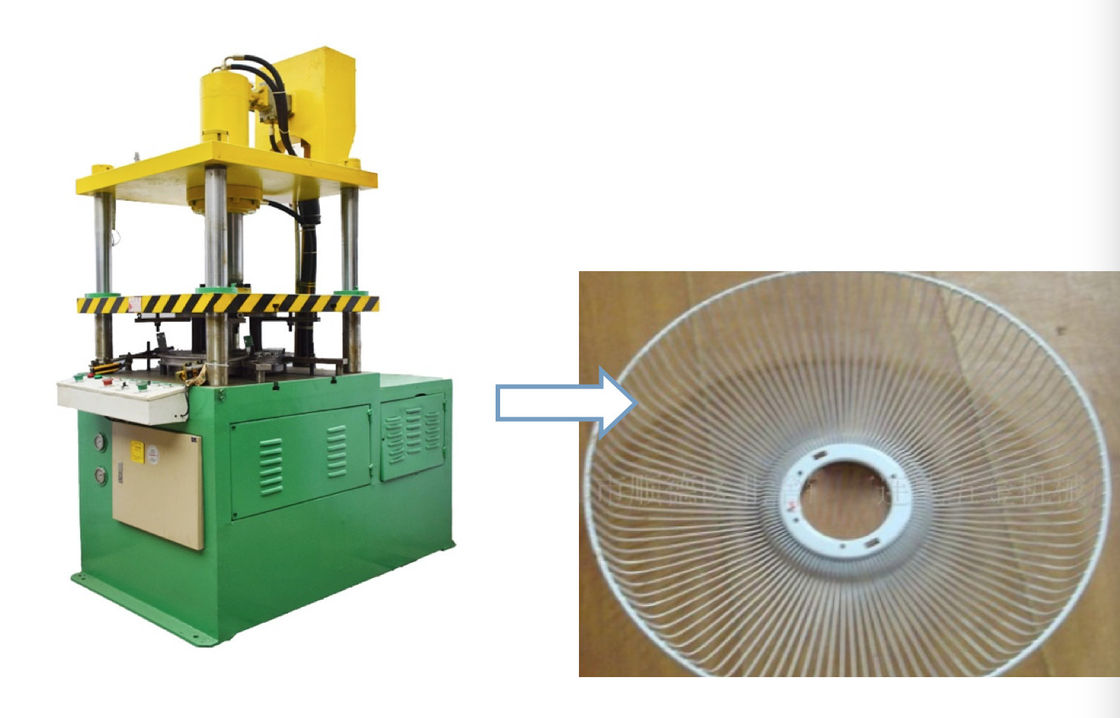

4) hydraulic press machine for fan guard:
| power supply: | 380V-50HZ |
| fan guard size | 16-18cm |
| motor power kw: | 7.5KW |
| production quantity: | 7000-8000 pcs |
| current: | 30-50A |
| size(L*W*H) | 1150*1000*2500mm |
| weight: | 1200KG |
5)servo CNC machine circle round for fan guard:
| power supply: | 380V-50HZ |
| motor power (kw): | 1.5KW |
| production quantity: | 15000 pcs |
| current: | 3-5A |
| size(L*W*H) | 1500*850*1480mm |
power supply: | 350KG |
6) Weld Spot-weld Machine for blower guard:
| power supply: | 380V-50HZ |
| motor power(kw): | 25KW |
| production quantity: | 9000 pcs |
| current: | 10-20A |
| size(L*W*H) | 700*900*1050 |
| weight: | 200KG |
| Air Comsumption: | 0.5MPa |
7)flat edge trimmer for blower guard:
| power supply: | 380V-50HZ |
| motor power(kw): | 1.1KW |
| production quantity: | 8000 pcs |
| current: | 3-5A |
| size(L*W*H) | 460*550*900 |
| weight: | 120KG |
