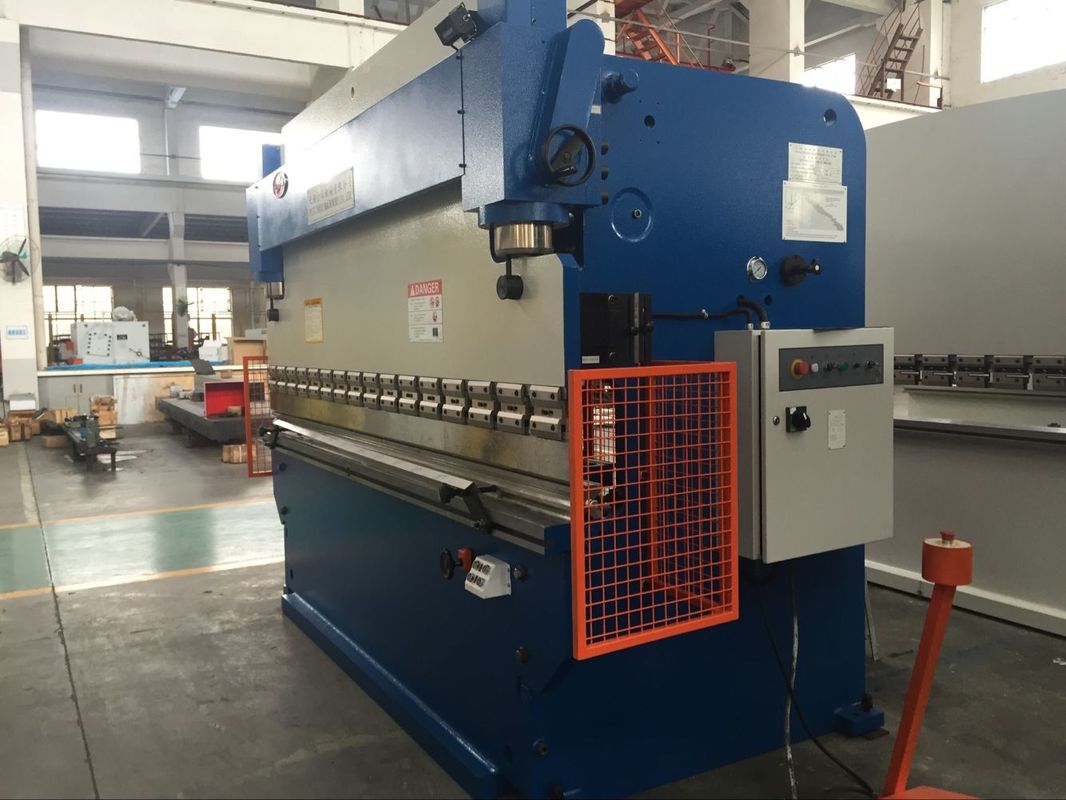

Horizontal Hydraulic Press Brake Machine / Metal Sheet Bending Machine

Tanzania customer WC67Y-125/3200 Hydraulic Sheet Bending Machine for metal sheet job

Tanzania customer WC67Y-125/3200 Hydraulic Sheet Bending Machine for metal sheet job

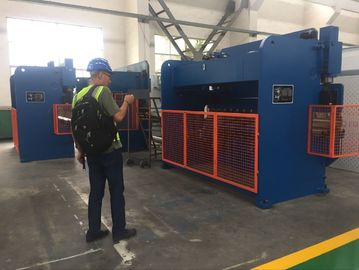

This is our Tanzania customer bought our machine second time because of our good quality in the first machine

Our company covers an area of 62,000 square meters, was founded in June 1969, with 300 emplyoees.

WC67Y-125/2500

Technical Details:

Mode: WC67Y-125/2500

Norminal Press: 125 ton

Length of Table: 2500mm

Distance between Housing: 2050mm

Throat Depth: 320mm

Ram Stroke: 100mm

Ram Speed: 60/8/40 mm/s

Open Height: 365 mm

Main Motor: 7.5 Kw

Volume of oil tank: 240L

Weight: 6500 kgs

Overall Dimensions: L 2800 mm

                                 W 1970 mm

                                 H 2345 mm

More details :

Condition: New

Material/ Metal Processed: Carbon Steel

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Press Brake

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E21, DA41, DA52, DA66T....

Usage range: Bending metal sheet.

Advantages:

1. The steel plate, we purchased from Chinese good and long history steel plante, so our machine is stronger

2. Our machine has heat treatment, that is why our machine can work long time without deformation

3. Besides eletric parts and hydraulic, all other metal parts are made by ourselves, we have Large CNC gantry milling machine, imported large CNC boring machine,...so we can control our quality and delivery time
