Product Details:
Payment & Shipping Terms:
|
| Material: | Metal Sheet : Mild Steel, Stainless Steel, Aluminum Sheet | Cutting Thickness: | 12 Mm |
|---|---|---|---|
| Cutting Length: | 2.5 Meters | CNC Controller: | E21, Chinese Famous Brand: Estun, Control Back Gauge And Blade Gape |
| High Light: | hydraulic sheet metal shear,hydraulic sheet metal cutting machine,guillotines type cnc metal sheet cutter |
||

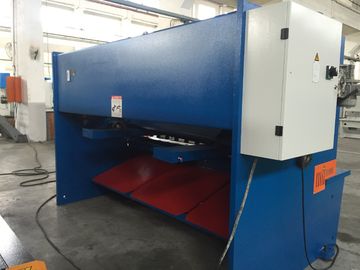

QC11K-12X2500 CNC sheet cutting machine ---we export to Sri Lank customer-
Shearing Machine Technical Parameters:
QC11K-12X2500
Technical Parameters:
Mode: QC11K-12X2500
| TECHNICAL FEATURES | ||
| 1 | Type | Hydraulic Guillotines type |
| 2 | Cutting length | 2500 mm |
| 3 | Cutting thickness | 12 mm (mild steel at 450 Mpa) |
| 4 | Shear angle | 0.5~2.5°adjustable |
| 5 | Number of stroke per minute | 8 |

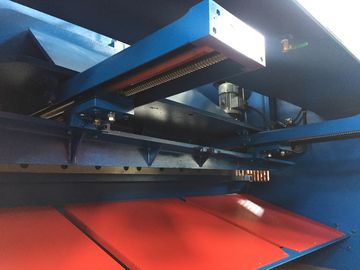

| 6 | Stroke back gauge | 20-800mm |
| 7 | Main motor | 15kw |
| 8 | Main Electric Elements in cabinet | Schneider |
| 9 | Seal in the cylinders | NOK, Made in Japan |
| 10 | Gross weight | 8000 kg |
| 11 | Overall size(mm) LxWxH | 3195x1825x2180 |
| 12 | Packing: | With plastic covers |
| 13 | NC controller |
Type: E20, made in China, control 2 Axis back gauge system+ gap of the blade, as the attached photo. The back gauge is with ball screw. |
our machine advantages :
1. Swing beam type top blade, hydraulic driven, stable and reliable, easy to operate
2. Blade gap can be adjusted accurately and rapidly; top blade stroke can be adjusted stepless to improve cutting speed
3. Matching variety of back gauges and blade which controled by CNC system
4. Our hydraulic pipe is non-welded pipe, it will not block the hydraulic systm
5. Our machine frame is much stronger, because our sheet is thicker, and our welding is also good
Quick characters :
Condition: New
Material/ Metal Processed: Carbon Steel Q235 or Q345
Extra Service: Machining
Electric componets: Schneider famous brand
Other parts: Ball screw, servo motor....
Place of Origin: Wuxi city, Jiangsu, China,
Machine Type: Hyraulic Shearing Mchine
Power: Hydraulic
Color: white, blue, yellow....
Control syste: E200S, DAC310,DAC 360, OR DTC660
Usage range: cutting metal sheet.
Packageing & Delivery
Packaging details: metal frame pallet
Delivery detail: 55-60 days

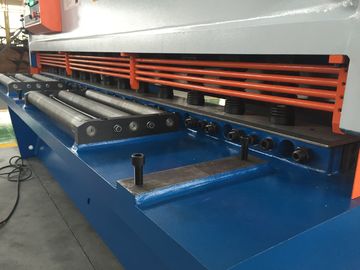

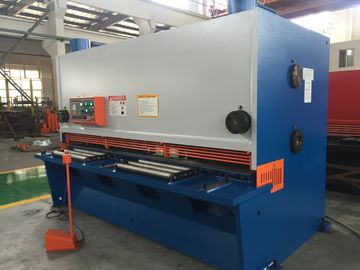

More Photos
