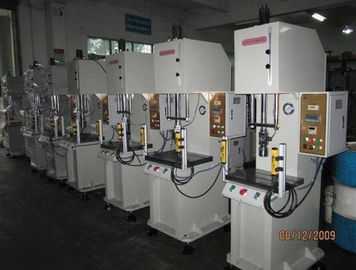

PLC Servo Single Column Hydraulic Press Machine YD30-100 For Metal Sheet Bending
Technical Specification
In order to ensure that the press can meet the user's performance, the machine needs to have the following technical properties and parameters:
1 the hydraulic press function and characters
This machine is suitable for the metal sheet bending, leveling, trimming, pressing and so on.
The machine has an independent power mechanism and electrical system, and adopts the button to control the process and movement controlled by PLC.
The working pressure and stroke range of the machine can be adjusted according to the technological process.
2.Main Parameters
| Number | Item | Unit | Value | |
| 1 | Nominal Pressure | KN | 1000 | |
| 2 | Liquid max working pressure | MPa | 25 | |
| 3 | Ejection force | KN | 400 | |
| 4 | Ejection stroke | mm | 250 | |
| 5 | Ram max stroke | mm | 500 | |
| 6 | Throat depth | mm | 350 | |
| 7 | Open height | mm | 800 | |
| 8 | Ram speed | Fast down | mm/s | 200-240 |
| Working | mm/s | 10-18 | ||
| Returning | mm/s | 200 | ||
| 9 | Ram table | L-R | mm | 550 |
| F-B | mm | 500 | ||
| 10 | Worktable | L-R | mm | 800 |
| F-B | mm | 600 | ||
| 11 | Motor power | KW | 10.8 | |
3. Main components brand
| No | Item | Supplier | Model |
| 1 | Cartridge integrated valve | Taifeng | YN32-100GSCV |
| 2 | Gear pump | sunny | HG1-32-01RVPC |
| 3 | Servo motor | Estun | EMB-1ZDRA |
| 4 | Position switch(non contact switch) | Omron | |
| 5 | Main push button switch | Schneider | |
| 6 | Pressure Gauge | Wuxi | |
| 7 | PLC | Mitsubishi | FX1N-40MR |
| 8 | AC contactor | Siemens | |
| 9 | Automatic Air Circuit Breaker | ||
| 10 | Thermal relay | ||
| 11 | Time relay | ||
| 12 | driver | Estun | ProNet-1ADIB |
| 13 | Solenoid valve | Taifeng | |
| 14 | Touch Screen | Xinjie | THA62-MT |
Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 62,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
