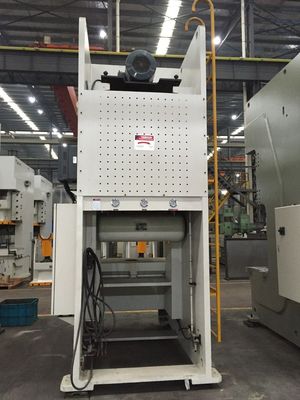

Stable Precision Mechanical Press Machine JP80 C Type Fixed Tale

Technical Specification

II.Main Applications&Features

1．This machine is common H-Frame mechanical press,it can be applied to various of stamping craft, such as parts blanking,forming,bending,revising,stretching.

2．When it is in the process of forming,bending,revising and stretching, the craft force should not be more than the allowed value in the loading curve.

            3．The die press center should coincide with the slide center.

III．Main Functions&Features

1．Main allocation of this press: The press is mainly composed of frame,main transimission,clutch,brake,slide,air circuit,lubrication system, electrical system. The press has a compact conformation and a good shape

2. The frame adopts steel welding structure, relieving the stress by fireplave tempering or vibratory stress     relief to make the machine a good rigidity and less deformation

3. The frame adopts C-type structure with stable precision to improve machining precision for stamping  parts and the die service life

4. The crank shaft is laid longitudinally to make a short distance between pivots,good rigidity of crank shaft,compress structure and reasonable layout,the transmission gear running immersed in the oil to make it low noise and small erosion.

5. It adopts dry type friction clutch&brake,mechanical interlock,safe and reliable, good stability,low noise and the friction plate is not easily worn.

6. It adopts imported hydraulic overloading protecting device,quick response,reliable action,good stability;external oil tank,convenient for maintenance.

7. Eight-side long rectangle guides of the slide with high moving precision and high accuracy,extending the service life of die.

8. The lubricating system adopts the way of automatic circulating lubrication by electric thick oil pump and it is equipped with accelerating oil distributor, the time and volume of oil supplying are controlled by the PLC.If the oil circuit is blocked, it alarms and indicates automatically

9. Die set height is adjusted electrically and it is equipped with digital die height indicator, the precision can reach +0.1mm (manual adjusting for 25T,45T,equipped with height gauge)

10. Electric system adopts imported PLC and the stroke is stepless adjustable,having functions of emergent stop,inch,single and continuous, the main elements adopts international well-known brands with good reliability.

11．Triple-way part for the air circuit adopts SMC brand from Japan

IV． Main Configuration

Acceptance Standards

1.Accepting according to the related national standards, set forth below

1.1Precision standards meet GB/T 23280-2009 C-Frame Press Precision

1.2Technical conditions meet JB/T 6580.1-1999 C-Frame Press Technical conditions

1.3Noise Limit GB 26483-2012 C-Frame Noise Limit

1.4Electric Safety of the machine GB5226.1-2008 Machine electric safety;electric equipment

1.5Safety Technical Requirements GB 27607-2011

2.The needed lubrication oil,hydraulic oil,cleaning oil, lubrication grease are supplied by the buyer.

3．Training: The seller is responsible for the free training of buyer’s machine,electric technician, maintenance staff, operators.

Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:

1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
