| Highlight: | hydraulic sheet bending machine,sheet metal press brake,80 ton hydraulic press bending machine |
||
|---|---|---|---|

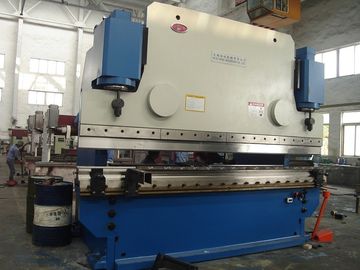

80ton 2500mm Hydraulic Press Brake Machine for Metal Sheet , Brake Bender Machine
|
Name |
|
Brand Name |
JINQIU |
|
Hydraulic Press Brake Machine |
Hydraulic Press Machine Hydraulic Bending Machine Hydraulic Metal Plate press brake
|
Feature |
Torsion shaft forced synchronization of mechanical limit stopper balance,with high precision. |
|
Bending capacity |
80 ton 2500mm length |
Usage |
Mild steel sheet Stainless Steel sheet |
Introduction:
All steel welded structure, stress relieved for high rigidity and stability.
Torsion shaft forced synchronization of mechanical limit stopper balance, with high precision.
Integrated hydraulic transmission system, large range of speed regulation thanks to transmission of the sliding block, stable and reliable performance.
Rear stopper and the sliding block have electrical adjustment for the stroke, with manual fine tuning, and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect of upper punch retainer is fitted with tilting warp offset mechanism.
For bending machine from 250Tup synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechanism.
Multi-machine combined operation is possible.
Parameters:
|
TECHNICAL FEATURES |
||
|
1 |
Type |
Hydraulic press brake with torsion bar |
|
2 |
Working force |
80 T |
|
3 |
Length of table |
2500 mm |
|
4 |
distance between frames |
2050 mm |
|
5 |
Throat depth |
250 mm |
|
6 |
Open height |
350 mm |
|
7 |
Stroke |
100mm |
|
8 |
Speed |
Fast down: 70mm/s Working speed: 10mm/s Return speed: 60mm/s |
|
9 |
Main motor |
7.5kw |
|
10 |

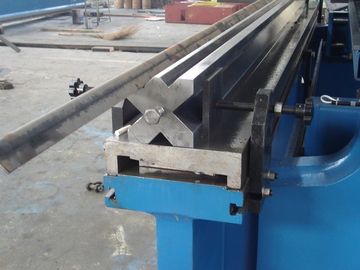

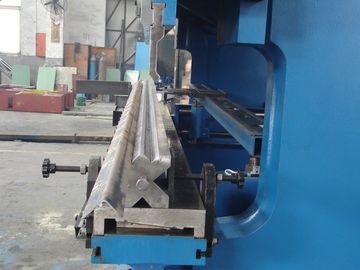

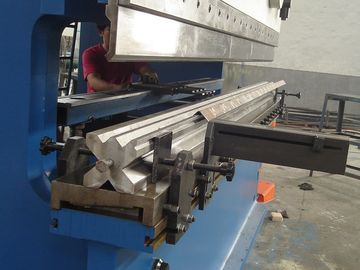

Tool |
With 1 punching and 1 bottom die |
|
11 |
Main Electric Elements in cabinet |
Schneider or Siemens |
|
12 |
Seal in the cylinders |
NOK |
|
13 |
Gross weight |
5300 kg |
|
14 |
Overall sizes(mm) LxWxH |
2750x1725x2325 |
|
15 |
Packing: |
With plastic covers Transportation:1/4x40’ HC |
|
|
NC control system |
Optional |
