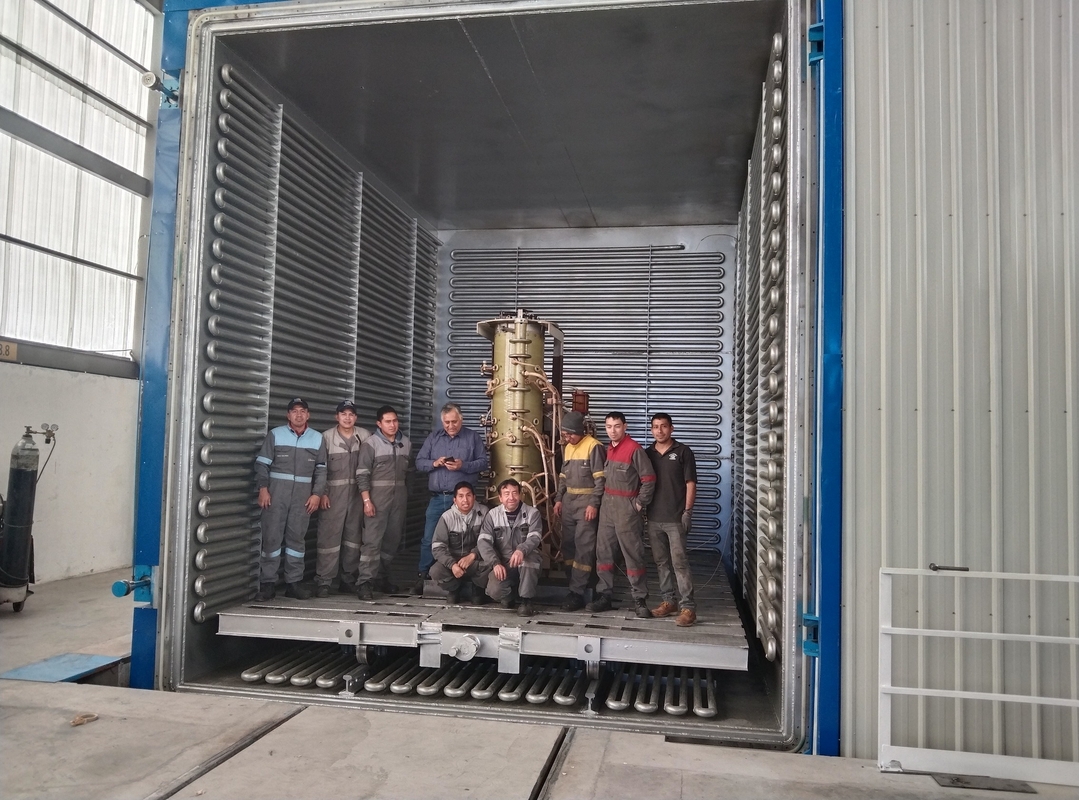

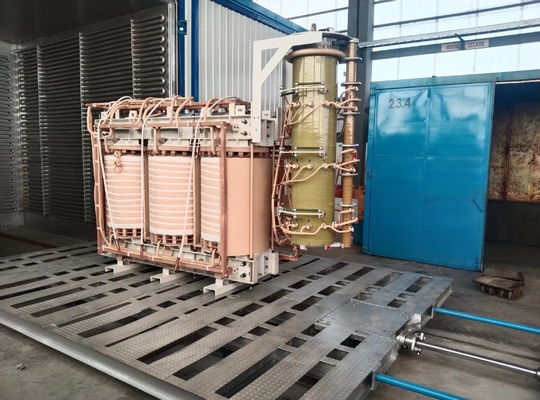

Oil Immersed Distribution Transformer Drying Furnace

Oil Immersed Distribution Transformer Drying Furnace
Oil Immersed Distribution Transformer Drying Furnace Oil Immersed Distribution Transformer Drying Furnace

Large Image :  Oil Immersed Distribution Transformer Drying Furnace

Product Details:
Place of Origin: WUXI
Brand Name: Gremet
Certification: CE,COC,ISO
Model Number: 5000×3000×3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: deciding to the size and configuration
Packaging Details: standard exporting packing
Delivery Time: 20-50 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30-50 sets
Detailed Product Description
Drying Type: Vacuum Furnace Size: 5000×3000×3000
Usage: Remove The Moisture From The Transformer Insulation Material
High Light:

Oil Immersed Drying Furnace

,

Distribution Transformer Drying Furnace

,

Oil Immersed Distribution Transformer Drying Furnace

Introduction:

Distribution transformers are one of the important equipment in the power supply and distribution systems of industrial and mining enterprises and civil buildings. The purpose of transformer vacuum drying treatment is to remove moisture from the insulation material of the transformer and improve its electrical performance; On the other hand, causing the insulation components of the product to shrink and deform is beneficial for compression deformation, ensuring the geometric dimensions of the product and improving its mechanical strength. Because almost all insulation materials are used on transformers, except for iron cores and wires, various insulation components inevitably absorb moisture from the air during storage and production processes. The moisture in insulation components is the main factor affecting the electrical performance of insulation. Transformers belong to high-voltage electrical products. In order to improve the insulation electrical performance of the products and ensure their normal operation, transformers must undergo vacuum drying.





Drying principle and process

Pressure swing drying process
The entire process of pressure swing drying is mainly divided into four stages: preheating stage, transition stage, main stem stage, and final drying stage.
1, Preheating stage (accounting for about one-third of the entire process time):
1. First, turn on the vacuum unit, open the main vacuum valve, and evacuate for 5-10 minutes; (i.e. drawing from 100000 Pa to 80000 Pa)
2. Turn off the vacuum unit and maintain the vacuum for 30 minutes;
3. Open the vacuum main valve again, evacuate for 5-10 minutes (i.e. from 80000 Pa to 40000 Pa), and close the vacuum unit;
4. Open the inflation valve and inflate for 5-10 minutes; (i.e. charging from 40000 Pa to 80000 Pa)
5. Close the inflation valve and hold the pressure for 30 minutes; Turn on the vacuum unit again and start the cycle from the third step. Until the temperature reaches the temperature set during the transition phase.
2, Transition phase (approximately 2-3 hours):
If the temperature of the iron core reaches 70 ℃, it enters the transition stage
1. Turn on the vacuum unit, evacuate for 5 minutes, and turn off the vacuum unit for 30 minutes;
2. Turn on the vacuum unit, evacuate for 5 minutes, and turn off the vacuum unit for 30 minutes;
3. Turn on the vacuum unit, evacuate for 5 minutes, and turn off the vacuum unit for 30 minutes;
4. Turn on the vacuum unit, evacuate for 5 minutes, and turn off the vacuum unit for 30 minutes;
3, Backbone stage (one-third of the entire process time)
1. Turn on the vacuum unit, evacuate for 15 minutes, and close the main valve for 15 minutes;
2. Open the main valve again, evacuate for 10 minutes, and repeat the cycle until the core temperature reaches 80 ℃ and the vacuum degree reaches 500Pa, then proceed to the final drying stage.
4, If the temperature of the iron core in the main stage reaches 80 ℃ and the vacuum degree reaches 500Pa, it can enter the final drying stage. The vacuum unit should not be shut down. After continuously vacuuming to 200Pa, evacuate for about 2-3 hours.
Attention: The vacuum degree, core temperature, evacuation time and closing of the vacuum unit, main valve time, and vacuum degree and continuous evacuation time during the final drying stage are approximately determined based on product grade, product moisture content, and local climate.



Usuage:

The variable voltage vacuum drying equipment is mainly used for the vacuum drying treatment of various high-voltage insulation products in the power transmission and transformation industry, such as transformers (10kV-220kV), high-voltage transformers, high-voltage bushings, power capacitors, cables, motors, insulation paper, etc.
