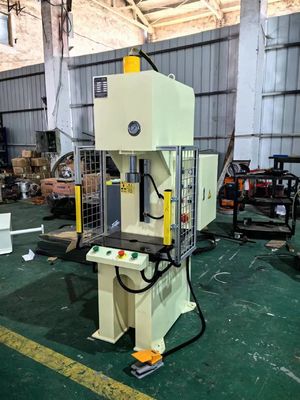

40 Ton C Frame Hydraulic Press Machine Exporting To Germany

Name: 40 Ton C Frame Hydraulic Press Machine Exporting To Germany
Brand: Jinqiu
SKU: 40 ton
Rating: 4.5 (108 reviews)

Product Details:

Place of Origin:	China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name:	Jinqiu
Certification:	CE and CQC
Model Number:	40 ton

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Highlight:

C Frame hydraulic press machine

Model			Unit	25T	40T	100T
Nominal force			KN	250	400	1000
Maximum working pressure of liquid			Mpa	20	22.5	25.5
The maximum distance between the lower plane of the slider and the workbench			mm	700	700	800
Maximum stroke of the slider			mm	550	550	500
Slide down speed			mm/s	120	120	120
Slide return speed			mm/s	110	100	90
Working speed			mm/s	8-15	8-15	8-15
Slide size		F-B	mm		300
Slide size		L-R	mm		400
throat			mm	300	350	350
Worktable size		F-B	mm	500	500	650
Worktable size		L-R	mm	630	600	800
Worktable height to the ground			mm	700	700	700
Motor			Kw	5.5	5.5	7.5
Machine size	F-B		mm	1280	1370	1570
	L-R		mm	755	900	840
	Height from ground		mm	2200	2350	2670
Total weight			Kg	2000	2200	4000
