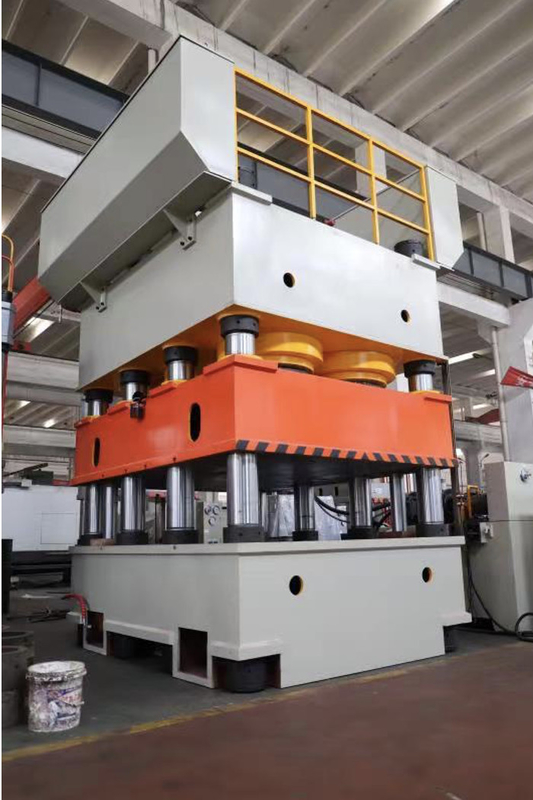

Roof Making Hydraulic Press Machine 5mm Container Wall Sheet

Large Image : Roof Making Hydraulic Press Machine 5mm Container Wall Sheet

Product Details:

Place of Origin:	China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name:	Jinqiu
Certification:	CE and CQC
Model Number:	4000 ton

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD or RMB
Packaging Details:	metal steel frame
Delivery Time:	55-60 days
Payment Terms:	L/C, T/T
Supply Ability:	150 pcs per month

Contact Now

Detailed Product Description

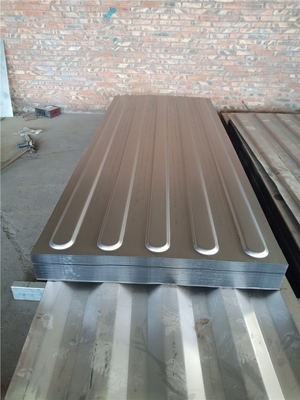

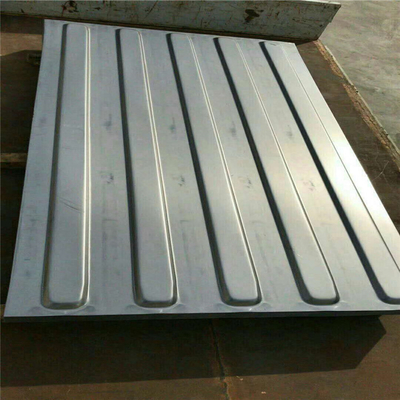

Function:	Pressing Container Roof Sheet	Thickness:	Mild Steel 5 Mm Thickness
Use:	Making The Stiffeners	Machine Capacity:	4000 Ton
Advantage:	One Time Pressing Forming The Shape	Name:	Container Making Hydraulic Press Equipment
Highlight:	Roof Making Hydraulic Press Machine , Hydraulic Container Wall Sheet Press Machine , Hydraulic Press Machine 5mm

Technical parameters:

Model	4000 T
Slide stroke	400mm
Max opening height	500mm
Working table size	2000x2000 mm
Descent speed	150 mm/s
Slow descent speed	5-10 mm/s
Return speed	80 mm/s
Motor	22x2 kw

Main Configuration Details

Cartridge valve	TAIFENG http://www.taifenghydraulic.com
oil pump	QIDONG http://www.jgyb.com.cn
electrical machinery	GREAT DRAGON https://www.eastjl.com/m/
Pressure gauge	WUXI http://www.chinaxuelang.com/product/
electrical equipment	DELIXI https://www.delixi-bj.com
Intermediate relay	schneider
