| Machine Power: | Hydraulic Type | Usage: | Press Square Stainless Steel Water Tank Cover |
|---|---|---|---|
| Pressure: | 315 Ton | Water Tank Size: | 3 Covers: 500x500,1000x1000,1000x500 |
| Work Table Size: | 12600mmx1200mm | Name: | Hydraulic Press Equipment |
| Highlight: | metal press machine,power press machine |
||
Stainless Steel water tank cover professional special hydraulic press machine
Our advantages:

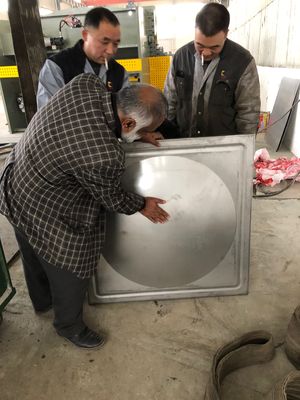

We can supply hydraulic press machine, but we also supply water tank mould/die, usually, for stainless steel square water tank cover, it needs 3 dies, the size is: 1000x1000,1000x500,and 500x500
and we can supply water tank experiend worker to help customer to do this water tank cover
For this cover, usually, the bottom layer, it is thicker, it can be 3mm, or 2mm, then second layer, the thickness can be less, 1.5mm, the top layer thickness is just 1.2mm. and some also need insulation to keep temperature.
Four-column universal hydraulic press
Model YBL32-315
1. Effective mesa: 12600mm *1200mm
2. Maximum travel: 800 mm
3. Maximum opening: 1250mm
I. Characteristics and performance:
The machine has independent power mechanism and electrical system, and adopts relay control, can be adjusted and semi-automatic operation mode.
The working pressure and sliding range of the machine can be adjusted according to the process requirements, and can complete two process modes of constant pressure and fixed-range forming. The process of constant pressure forming has the action of holding pressure and delaying automatic return after pressing.
| unit | |||
| Male weigh strength | KN | 3150 | |
| Ejection force | KN | 1600 | |
| return force | KN | 600 | |
| Slider stroke | mm | 800 | |
| Ejection stroke | mm | 300 | |
| Maximum opening height | mm | 1250 | |
| Slide | Empty distance | mm/s | 100 |
| work | mm/s | 5~12 | |
| Return trip | mm/s | 60 | |
| Ejection | up | mm/s | 55 |
| down | mm/s | 145 | |
| Worktable size | LR | mm | 1260 |
| FR | mm | 1200 | |
| Machine size | LR | mm | 3500 |
| FR | mm | 1500 | |
| From ground | mm | 4600 | |
| Motor power | kw | 18.5 | |
III. Overview of the structure:
The machine is composed of two parts, the main engine and the control mechanism. It is connected by pipes and electrical devices to form a whole. The main engine part includes the fuselage, main cylinder, limit device and so on. The control mechanism consists of a hydraulic pump station (power system), an electrical box and a mobile console. The structure and function of this part are as follows:
1, Machine main body
2, Main cylinder
3, accessorier cylinder
4, stroke limied device
5, hydraulic station
6, hydraulic system
7, operation system
