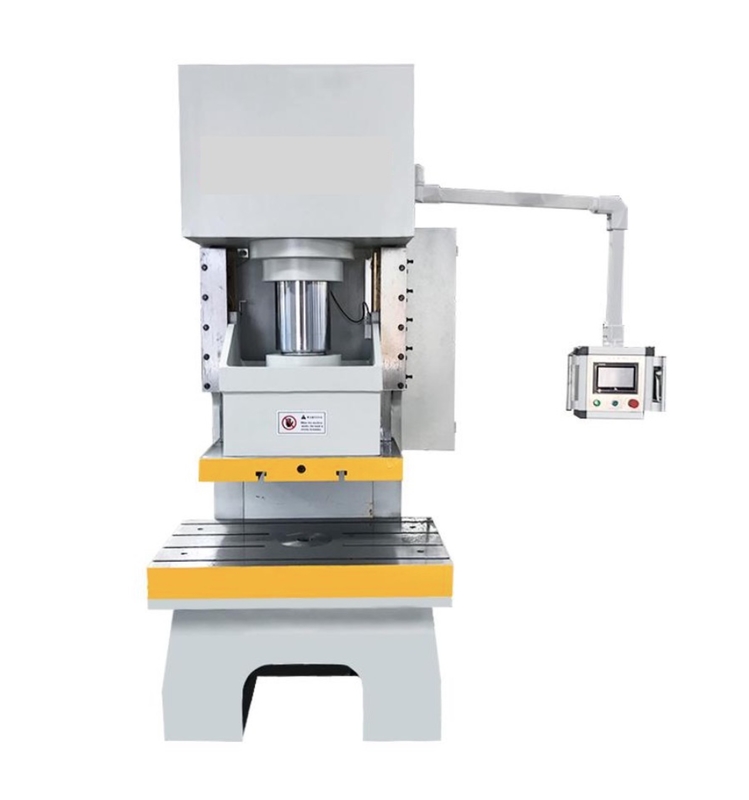

125 ton hydraulic punching press

Product Details:

Place of Origin:	China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name:	Jinqiu
Certification:	CE and CQC
Model Number:	125 ton

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Name:	Hydraulic Punching Press	Main Cylinder:	125 Ton
Table Size:	1000x600	Throat:	310

1, The working environment of the machine tool:

● Temperature: 0 ° C-50 ° C.

● Humidity: Relative humidity below 35% -65%.

Voltage: 380V 50Hz.

Installation site: Less dust

2, Performance and features:

This machine is equipped with independent hydraulic and electrical control systems, which are centrally controlled by buttons.

3, Main technical parameters of the machine tool:

Parameter	Unit	YC21-125T
Nominal force	KN	1250
Maximum system pressure	Mpa	25
open height	mm	500
Effective stroke	mm	260
Effective size of workbench (left and right)	mm	1000
Effective size of workbench (front and rear)	mm	600
Throat depth	mm	310
Slide size (left/right * front/back)	mm	550*400
Diameter of the material discharge hole on the workbench	mm	220
Motor Power	KW	15

4,Main supporting facilities

High pressure oil pump	Shaoyang Weike
hydraulic system	Shandong Taifeng
electrical machinery	Nanjing Global/Lianyungang Ruibao
electrical equipment	Delixi/Schneider

5,Safety protection

No	item	measure
1	mechanical protection	Electric motors and rotating components have rotation direction markings
1	mechanical protection	There is a zebra crossing warning on the lower edge of the slider
2	Hydraulic protection	System overflow valve to prevent overpressure
3	Electrical protection	The electric motor adopts thermal relay protection
		The control circuit protection adopts low-voltage circuit breakers
		Emergency stop button
		There is an overtravel switch protection at the bottom dead center of the slider
		Safe and reliable grounding device
4	Operational safety measures	In case of emergency, press the "emergency stop" button
4	Operational safety measures	Safety sign: The bottom edge of the slider has zebra crossings, etc.
