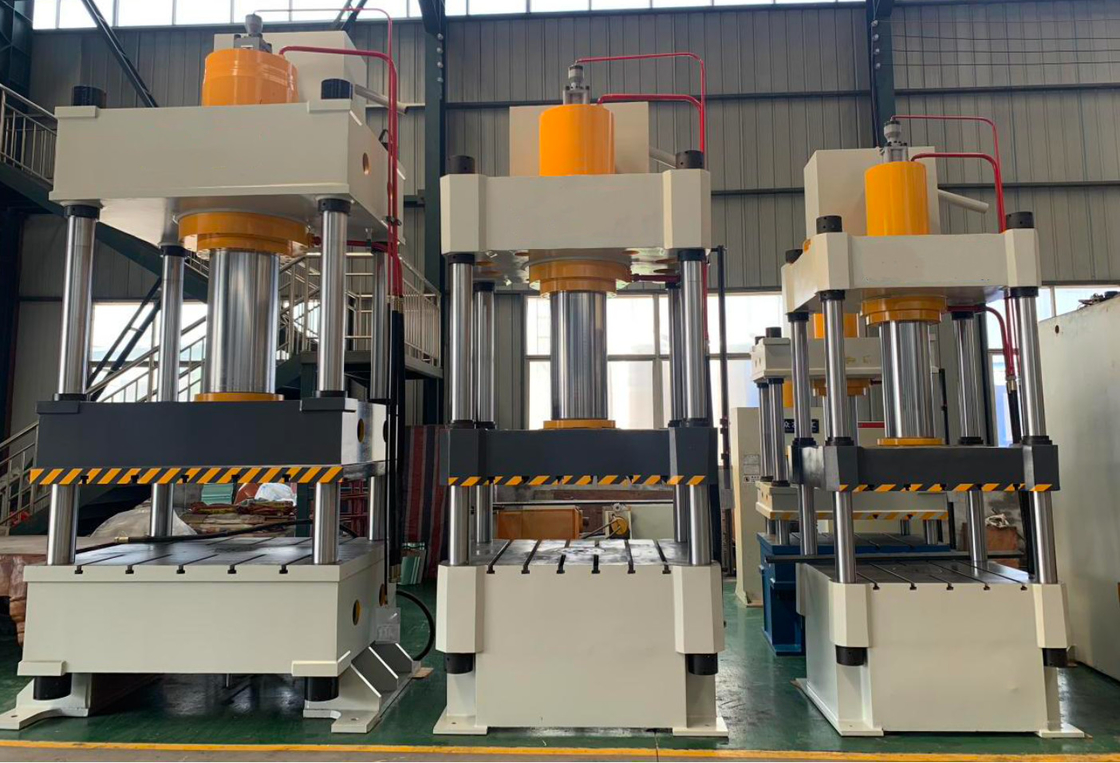

Kitchen Oven Press Making Machine 500 Ton Hydraulic With Pressure Adjust

Kitchen Oven Press Making Machine 500 Ton Hydraulic With Pressure Adjust
Kitchen Oven Press Making Machine 500 Ton Hydraulic With Pressure Adjust

Large Image :  Kitchen Oven Press Making Machine 500 Ton Hydraulic With Pressure Adjust

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 500 ton
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Machine Power: Hydraulic Type Usage: Press Kitchen Oven
Structure: Three Beam And Four Columns Capacity: 500 Ton
High Light:

Kitchen Oven hydraulic press brake machine


500 Ton hydraulic press brake machine


Adjust hydraulic press brake machine

                                                          Kitchen Oven Press Machine/ Making Machine
Technical Proposal Description
1,The working environment of the machine
●Temperature: 0 ℃ -50 ℃.
●Humidity: Relative humidity below 35% -65%.
●Voltage: 380V 50Hz, 3 phase
●Installation site: less dust
● Altitude: below 1000M
2, Main technical parameters of the machine

1Nominal forceKN50006300
2Maximum working pressure of liquidMPa2525
3Opening heightmm15001500
4Slide strokemm900900
5Effective area of workbench: Left and right column inner * front and rear edgesmm1500*15001500*1500
6Ejection Cylinder nominal forceKN10001000
7Ejection Cylinder strokemm300300

3,Supply of main supporting parts:

High pressure oil pumpShaoyang Victor (
Hydraulic systemTaifeng (
Hydraulic cylinderFactory
MotorHuanqiu (
an electric applianceSchneider
Filling valveHuadong hydraulic technology (
Cylinder sealing ringGuangzhou Research Institute (Imported Materials)


4, Performance and characteristics:
This machine has an independent power mechanism and electrical system, and adopts PLC centralized control. The process action is manual and semi-automatic control mode. The hydraulic system adopts integrated plug-in valves, with a compact structure, sensitive and reliable action. Fast speed, low energy consumption, and low noise. The working pressure and travel range of this series of products can be adjusted according to work needs.
5, Structure Overview:
This machine consists of two main parts: the main engine and the control mechanism, which are connected through oil pipelines and electrical devices to form a whole. The main engine includes the body, main cylinder device, etc. The control mechanism consists of a hydraulic pump station, an electrical box, a mobile control console, etc. The structure and function of each part are described as follows:
1. Machine body: Adopting a three beam and four column structure, it consists of upper crossbeam, slider, workbench, main cylinder, ejection cylinder, column, control system, and electrical system components.
2. Main cylinder: The main cylinder body is fixed to the table, and the lower end of the piston rod is connected to the sliding block with flanges and bolts. The piston head is divided into two oil chambers in the cylinder with YX shaped sealing rings in opposite directions. The outer circle of the guide sleeve is equipped with O-ring sealing rings, which are locked with flanges and bolts to ensure the sealing of the cylinder port. A dust ring is installed on the cylinder flange to ensure dust prevention of the piston rod.
3. Limiting device: The limiting device is installed on the right side of the machine and is mainly used to control the stroke distance of the slider. It consists of shims, contactless travel switches, etc.
4. Hydraulic station: The hydraulic pump consists of an oil tank, an axial piston pump, an electric motor, a two-way plug-in valve, a high-pressure self sealing oil filter, and an air filter. The fuel tank is made of Q235 steel plate welded parts, and the front end is equipped with a pressure gauge for observing pressure. Install a level gauge in the fuel tank to observe the oil level.
5. Oil pump: axial piston pump. Its instructions can be found in the user manual of the axial piston pump, and an overview is not provided here.
6. Two way plug-in valve: Its structure mainly includes plug-in parts, control cover plate, pilot control valve, and integrated valve block parts.
a. Insert components: composed of valve inserts, seals, valve bodies, etc. It can be a cone valve or a slide valve structure. Its main function is to control the direction, pressure, flow rate, etc. of oil flow in the oil circuit.
b. Control cover plate: composed of various micro pilot control components and other hydraulic components embedded in the cover plate. The main function is to fix the plug-in components. The combination of various embedded micro pilot control components and pilot control valves can control the working status of plug-in valves. The control cover plate is divided into directional control cover plate, pressure control cover plate, and flow control cover plate.
c. Pilot control valve: an electromagnetic directional valve installed on the control cover plate to control the action of the plug-in, and its component is an electromagnetic directional valve.
d. Integrated valve block: used to install plugins, control cover plates, and other control valves, to communicate the main oil circuit and control oil circuit.
6, Overview of hydraulic system
The hydraulic system consists of energy conversion devices (oil pumps and cylinders), as well as energy transfer devices (oil tanks, oil pipelines), etc. With the help of electrical system control, drive the slider to complete various action cycles.
7, Electrical control system
1. The machine is equipped with an independent electrical control box, which can move both sides of the equipment freely, and centralized buttons control the operation of the entire machine.
8, Operating System
1) It has two operation modes: inching and semi-automatic, and two process operations: fixed stroke and constant pressure.
2) The slider stroke is adjusted by a contactless switch control device.
3) The main cylinder pressure is adjusted by the pressure regulating valve.
4) The pressure holding time can be freely set

 图形用户界面, 应用程序描述已自动生成

9,More Details:
图片包含 文本描述已自动生成
