European quality door or cabinet cover angle corner CNC forming machine--forming and cutting one time

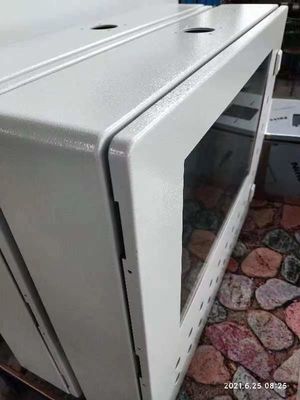

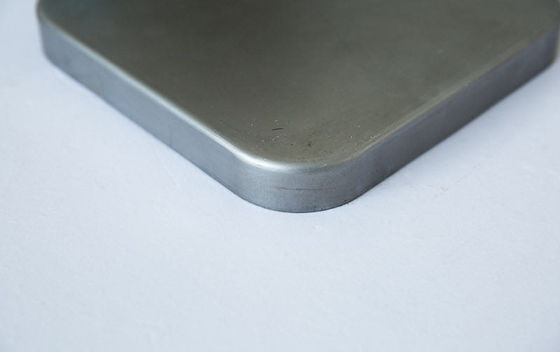

■our corner making equipment is used in the production of metal material boxes or covers for different kind of shapes

■Widely used in doors, covers, aluminum veneer curtain walls, distribution boards, container covers, household appliances, instruments and other fields.

■This machine adopts an automatic positioning sensing device. The operator or robot places the door panel into the forming inner mold, and then the mechanical arm resets the door panel to both sides of the mold. The two sides of the door panel contact the positioning sensors, and the plane sensing device sends a signal that the door panel and mold positions are correct. The machine will automatically start corner forming with a success rate of 100%. The manual drag mode has been changed. Once the door panel is manually placed on its side, the workpiece will be scrapped.

■This machine has a dual shear function, which allows for the integration of shear forming in batch production. It can form and shear corners without changing the shear position, saving physical performance. When producing a wide variety of small batches, separation molding and shearing functions can be selected. When the flange height is less than 30mm, the flange height can be flexible and variable, and the workpiece can be directly completed by changing the cutting table at the corner
Formation. This machine is one of the most advanced models in the world recently.

■Install safety light curtain protection to make the production process more safe and humanistic .

■Adopt the imported first-class brand components as our key electrical components to ensure the reliability and stability of the system.

■The PLC controller with 68 points can store and save lots of sheet metal corner moulding technologies, gap compensation coefficients .At the same time ,it can save and rewrite the coefficients of special materials and even the complex bimetal at any time.

■This machine improves shearing efficiency more than six times by changing the tedious process of open-angle welding ,grinding etc into rolling forming directly .it saves labor ,electricity ,gas ,grinding material and other accessories for enterprises, therefore ,it is both environmentally friendly and greatly reduces the production cost , could be regarded as the enterprise save-money expert.
