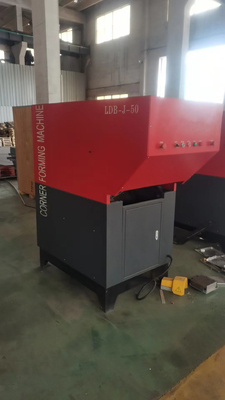

| NAME: | Corner Forming Machine | MODEL: | D3150 |
|---|---|---|---|
| BRADN: | GREMET | Thickness: | STAINLESS STEEL #1.5mm, MIRROR EFFECT |
| Function: | Form The Corner Of Box Cover |

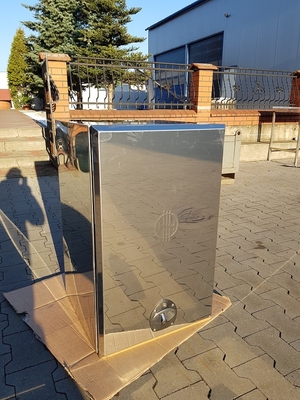

there is form video, you can have a look. This design is for our Poland customer. This shape is complicated, not every factory can make it.

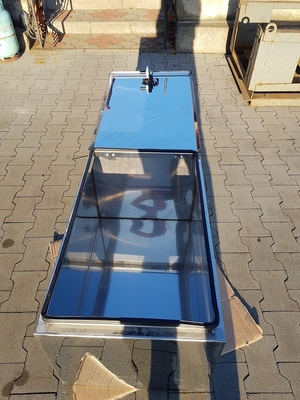

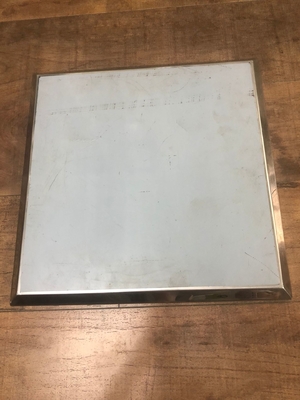

This corner forming machine is suitable for box cover. you do not need to weld. so it looks more nice and save a lot of processing time.

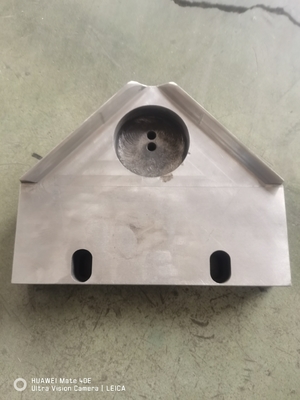

And this machine can form different sizes of box cover. if you use hydraulic press machine to press it, then each size needs one set of molds. Choosing our corner making machine, no need to spend so much money for machine mold. it let your cover looks very nice and beautiful.
| Technical parameters | Value | |||
| Machine model | D3150 | |||
| Machine overall size:LxWxH mm | 1280x1930x1890 | |||
| Machine weight | 1560kgs | |||
| Main parts | Main component names | Brand/Origin | ||
| AC servo motor | Fuji/Japan | |||
| Pneumatic system | Airtac/Taiwan | |||
| PLC | Taiwan FATEK | |||
| Low voltage electrical parts | Schneider/France | |||
| touch screen | MCGS//Beijing | |||
| Plunger pump | Qidong, China | |||
| Hydraulic valve | Huade/China | |||
| motor | Huali/Shandong 4kW | |||
| machine range (mm) | material quality | Sheet thickness | Forming height max 30mm | R |
| General cold rolled sheet | 0.6 | <10 | 2.0-50 | |
| General cold rolled sheet | 0.8-1.2 | <20 | 2.0-50 | |
| Cold rolled sheet | 1.5 | <25 | 2.0-50 | |
| Cold rolled sheet | 2.0-3.0 | <30 | 2.0-50 | |
| 304 or above material stainless steel | 0.5-2.5 | 1-2mm reduction in edge height compared to cold rolled sheet | 2.0-50 | |
| Aluminum plate | 1-3 | The same with cold rolled sheet | 2.0-50 | |
| Forming R corner radius | According to customer workpiece | |||
| Processing plate thickness | According to customer workpiece | |||
| Size of sheet metal | 200x200---Infinite length | |||
| Forming one corner time | Around 9 seconds | |||
| Forming one corner time | Around 9 seconds | |||
