| Function: | Put On The Press Brake Machine To Bend Light Pole | Suitable Machine: | It Is Put On Bending Machine |
|---|---|---|---|
| Final Product: | Smaller Side Diameter 65 Mm, Bigger Side Diameter 180mm | Light Pole Thickness: | 4mm |

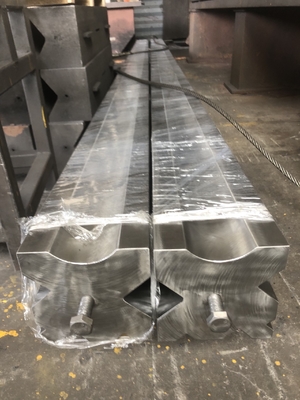

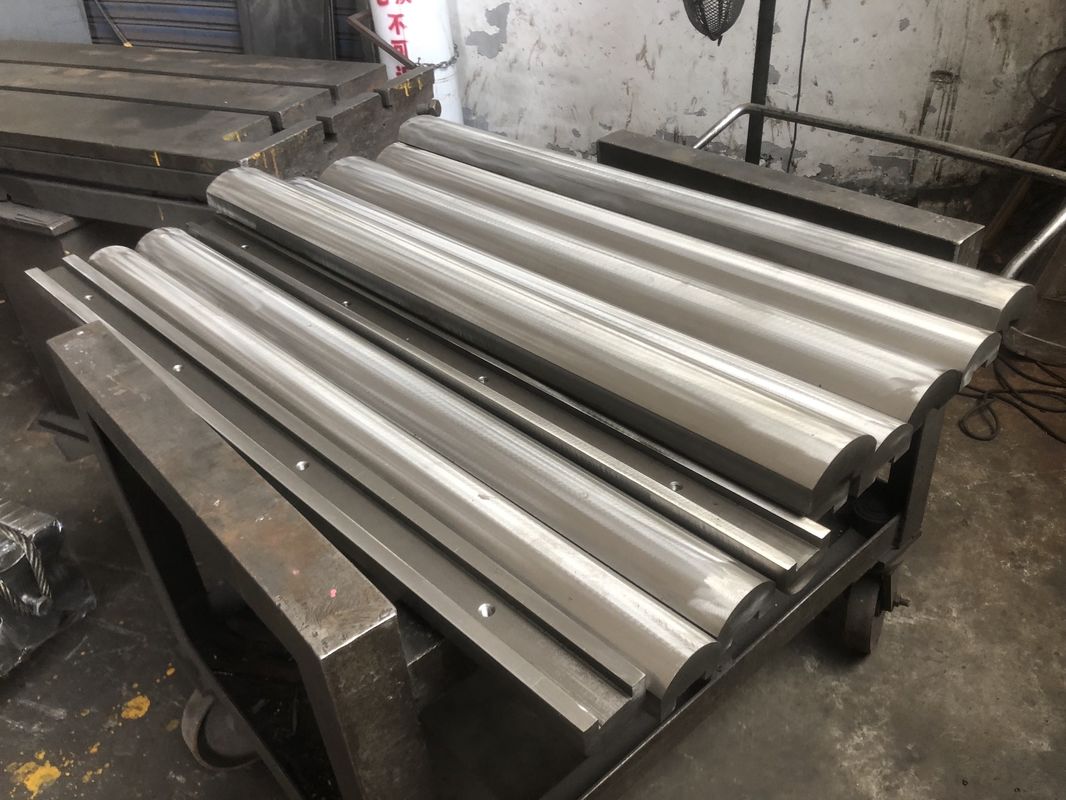

We finished Russia cutomer toolings as below photos:
The customer use it to bend light pole, the pole size is 10 m length, smaller diameter is 65mm, the bigger diameter is 180mm, thickness is 4mm.
And this tooling/ mold design is suitable for 7 times bending.
After finish, before delivery, we test every tooling. ( many producers do not test)
Technical details:
1. all unmarked chamfer edge are 1*45 degree
2. the straightness tolerance of datum plane A in lengthwise direction is 0.035mm
3. 10 pcs will be produced as one set. Dimensions 100,10,50 R3 should be in consistent, tolerance is 0.03mmm
4. Heat treatment: quenching 45-50 HRC
