| SHEET SIZE: | 1220x3200 | SHEET THICKNESS: | 0.6-4.5MM |
|---|---|---|---|
| Function: | Suitable For Metal Sheet Decoration Used In PLAZA, HOTEL | CONTROLLER: | AUTOMATIC |
| High Light: | 1220x3200mm cnc v grooving machine,CE cnc v grooving machine,plaza decoration v grooving machine |
||

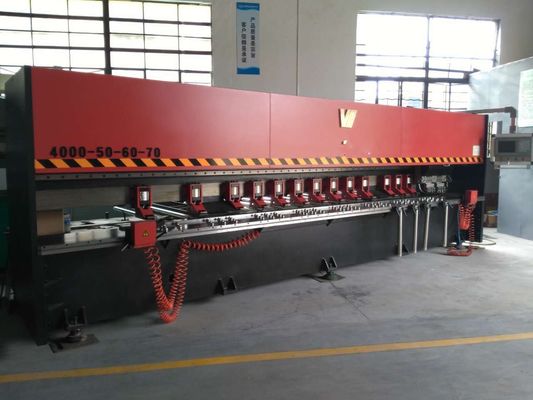

1220×3200 Grooving Machine
Our sheet metal grooving machine, which is mainly used for make the V shape grooving in various kinds of sheet metal, such as stainless steel sheet, iron sheet, copper sheet, aluminum sheet, aluminum composite sheets, etc. Bending after grooving, the workpiece edge radius is extremely small, and reduce the bending of sheet metal bending force needed, the money can also be used for bending the bending side to pre-position, bending side to ensure the accuracy of size correct, is home to promotion in recent years to develop a new type of professional equipment.
TRANSPORTATION
It can be loaded in one 20 feet container.
Exportation:
Our main exportation market is : Europe, USA, Japan, South Korea, India
Advantage:
Before bending, we use this grooving machine to cut groove, it can let your work piece more nice.
1.Main Technical Parameters:
1. Processing plate thickness: 0.6mm-4.5mm
2. Processing plate length: 3200mm
3. Processing plate width: 1220 mm
4. Grooving speed: 60m/ min
5. Plate sending speed 2m/min-0m/ min
6. Min. setting unit of Y axis : 0.01 mm
7. Min.positioning accuracy of Y axis: ±0.05 mm
8. Min. setting unit of Z axis: 0.01mm
9. Min.positioning accuracy of Z axis: ±0.03mm
10. X axis servo motor power: W=4.5Kw
11. Y axis Servo motor power: W=1Kw
12. Z axis servo motor power: W=1Kw
13. Air supply pressure: 0.4Map-0.6 Map
14. Max grooving depth: 2.5mm
15. Overall dimension(G.W): 5000mm*2350mm*2100mm
16. Weight:: About 9T
2.Configuration list
| No. | Name | Spec | Brand |

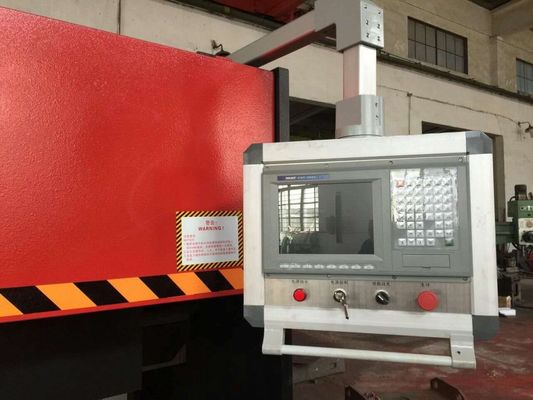

| 1 | HUST-H6DL-3 CNC system | Taiwan(Edraw) | |
| 2 |
Servo motor of knife rest ECMA-E21310RS 1pcs |
1KW | DELTA |
| 3 |
After feeding servo motor ECMA-E21310RS 1pcs |
1KW | DELTA |
| 4 |
Knife rest servo drive ASD-B2-1021-B 1pcs |
1KW | DELTA |
| 5 |
After feeding servo drive ASD-B2-1021-B 1pcs |
1KW | DELTA |
| 6 |
X axis servo motor ECMA-F11845RS 1pcs |
4.5KW | DELTA |
| 7 |
X axis servo drive ASD-A2-4523-L 1pcs |
4.5KW | DELTA |
| 8 | X axis reducer WPS142L1 | China | |

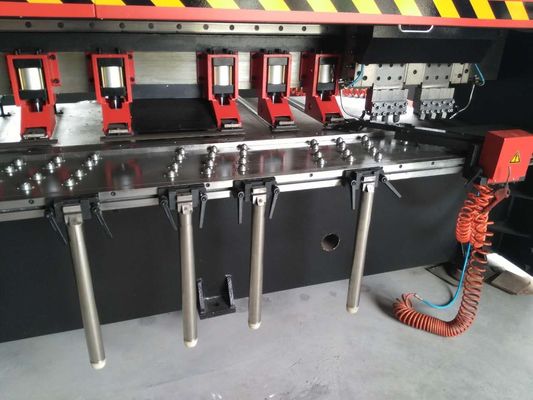

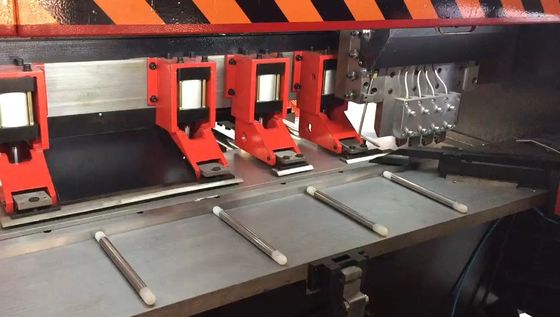

| 9 | Pneumatic component/cylinder | AIRTAC | |
| 10 | Linear Guides | 45# | Taiwan ABBA |
| 11 | Ball screw | Taiwan ABBA | |
| 12 | Approach switch TL-Q5MC1-Z | Omron | |
| 13 | Cooling system | K2000C | China (Kanon) |
| 14 | Other low-voltage apparatus | Schneider | |
| 15 | Main cables | German | |
| 16 | White steel knife K522 3pcs | 18*6*140 | England DORMER |
| 17 | alloy knife 3pcs | China |
