High Speed Coil Feeding Line / Aluminum Cap Making Machine

China High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier
High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier High Speed Coil Feeding Line / Aluminum Cap Making Machine supplier

Large Image :  High Speed Coil Feeding Line / Aluminum Cap Making Machine

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 25 diameter cap

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Cap Diameter: 20 Or 13 Mm Cap Height: Ups To The Customer Requirement
Cap Making Speed: 45000-47000 Caps Per Hour

coil feeding line for medicine and wine cap making - production



Usage:

In China, only us can special make and design cavity die for cap, the cavity die can make 5-16 caps per stroke. And we also supply punching machine, feeding line--complete line for cap making.After we finish, we will test whole line in our factory, the customer can see the cap making process, check if the cap is perfect. and after customer receive the machine, customer can use it directly, no need to send engineer for adjusting, because we have adjusted machine well.



High Speed Coil Feeding Line / Aluminum Cap Making Machine

High Speed Coil Feeding Line / Aluminum Cap Making Machine

High Speed Coil Feeding Line / Aluminum Cap Making Machine



Cap making line details:

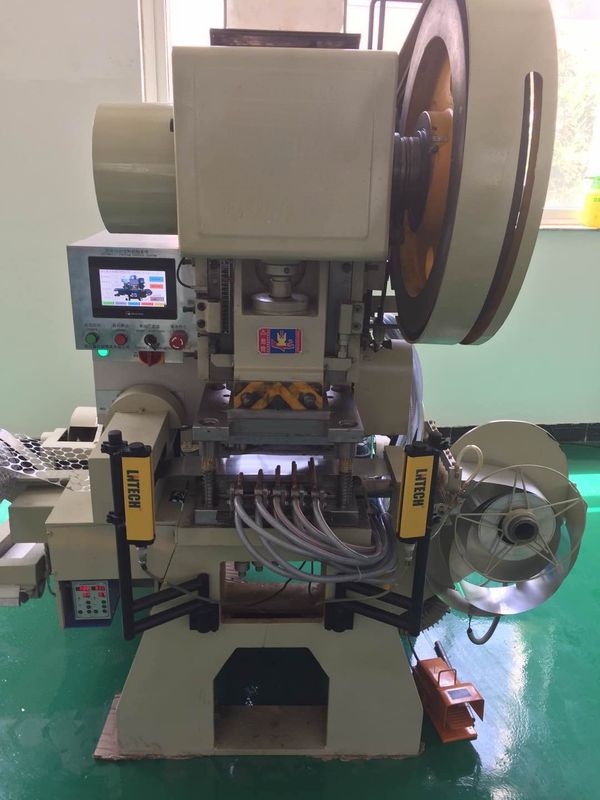

1)Cap Punching machine parameters:

Item 16
L S
Nominal pressure kN 450
Nominal pressure stroke mm 3.2
Stroke of slide mm 100 70
Stroke Variable spm 60-90 70-110
Single spm 80 100
Max. die set height mm 270 285
Die height Adjustment mm 60
Depth of throat mm 230
Distance between uprights mm 500
Bottom size of slide L-R mm 410
F-B mm 340
Hole for punch shank Diameter mm Φ50
Depth mm 60
Size of table L-R mm 810
F-B mm 440
Thickness mm 110
Size of opening in table Diameter mm Φ150
Single speed motor power kW 5.5
Overall dimension L-R mm 1080
F-B mm 1410
Height mm 2300
Total weight kg 4000





2) other devices for the cap making line and making steps:

cap making Step 1:cap punching die with 6 cavity---it means one stroke, we can get 6 caps, max we can produce 16 caps

cap making Step 2:Cap aluminum coil holder frame

cap making Step 3:Aluminum coil brush oil

cap making Step 4:-Blow cap

cap making Step 5:pull coil material servo control system

cap making Step 6:Pull coil material and waste material coiling

cap making Step 7:separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet

cap making Step 8:Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die



3)More photos



High Speed Coil Feeding Line / Aluminum Cap Making Machine

High Speed Coil Feeding Line / Aluminum Cap Making Machine
