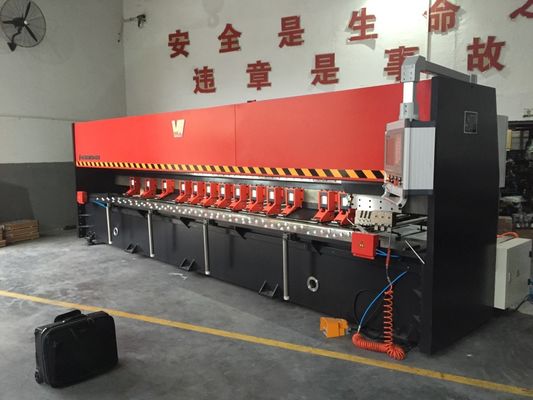

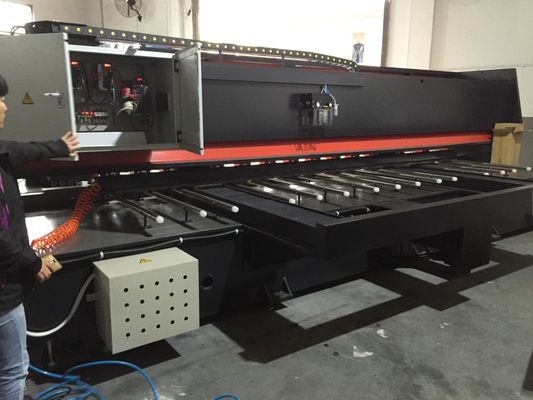

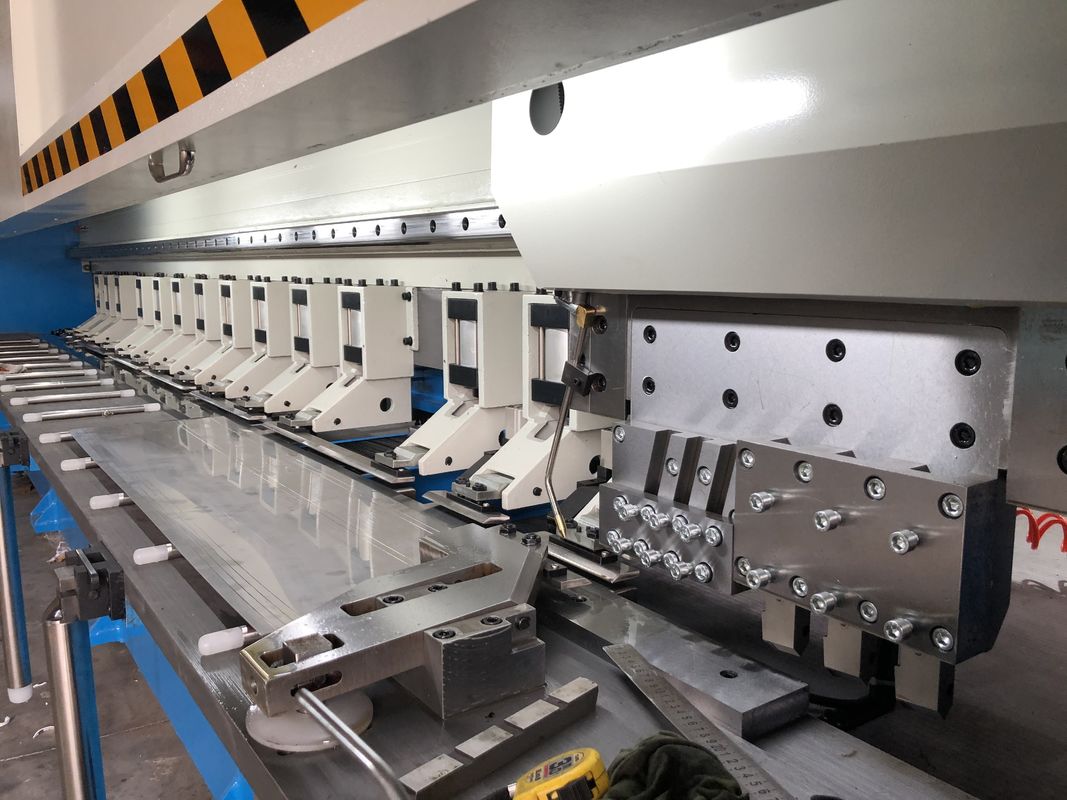

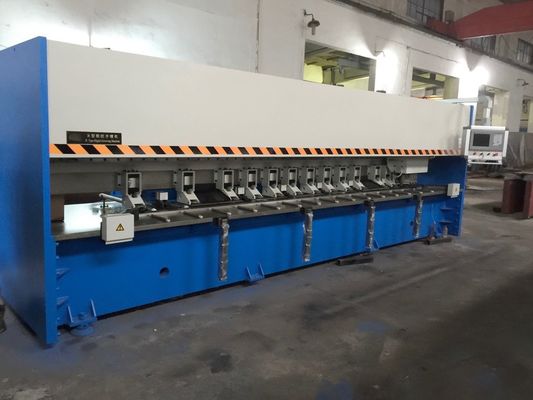

1500x4000 4MM Cnc V Grooving Machine For Sheet Metal

1500×4000 Grooving Machine

Sheet metal grooving machine, which is mainly used for make the V shape grooving in various kinds of sheet metal, such as stainless steel sheet, iron sheet, copper sheet, aluminum sheet, aluminum composite sheets, etc. Bending after grooving, the workpiece edge radius is extremely small, and reduce the bending of sheet metal bending force needed, the money can also be used for bending the bending side to pre-position, bending side to ensure the accuracy of size correct, is home to promotion in recent years to develop a new type of professional equipment.

TRANSPORTATION

It can be loaded in one 20 feet container.

Exportation:

Our main exportation market is : Europe, USA, Japan, South Korea, India

Advantage:

Before bending, we use this grooving machine to cut groove, it can let your work piece more nice.

1.Main Technical Parameters:

1. Processing plate thickness: 0.6mm-4mm

2. Processing plate length: 4000mm

3. Processing plate width: 1500 mm

4. Grooving speed: 60m/ min

5. Plate sending speed 2m/min-0m/ min

6. Min. setting unit of Y axis : 0.01 mm

7. Min.positioning accuracy of Y axis: ±0.05 mm

8. Min. setting unit of Z axis: 0.01mm

9. Min.positioning accuracy of Z axis: ±0.03mm

10. X axis servo motor power: W=4.5Kw

11. Y axis Servo motor power: W=1Kw

12. Z axis servo motor power: W=1Kw

13.Air supply pressure: 0.4Map-0.6 Map

14. Max grooving depth: 2.5mm

15.Overall dimension(G.W): 5800mm*2580mm*2100mm

16. Weight:: About 10T

2.Configuration list
