Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan

China Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan supplier
Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan supplier Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan supplier Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan supplier

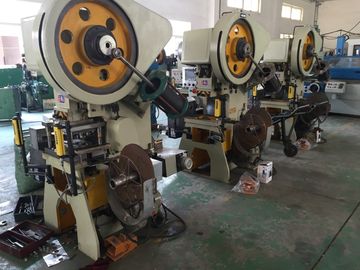

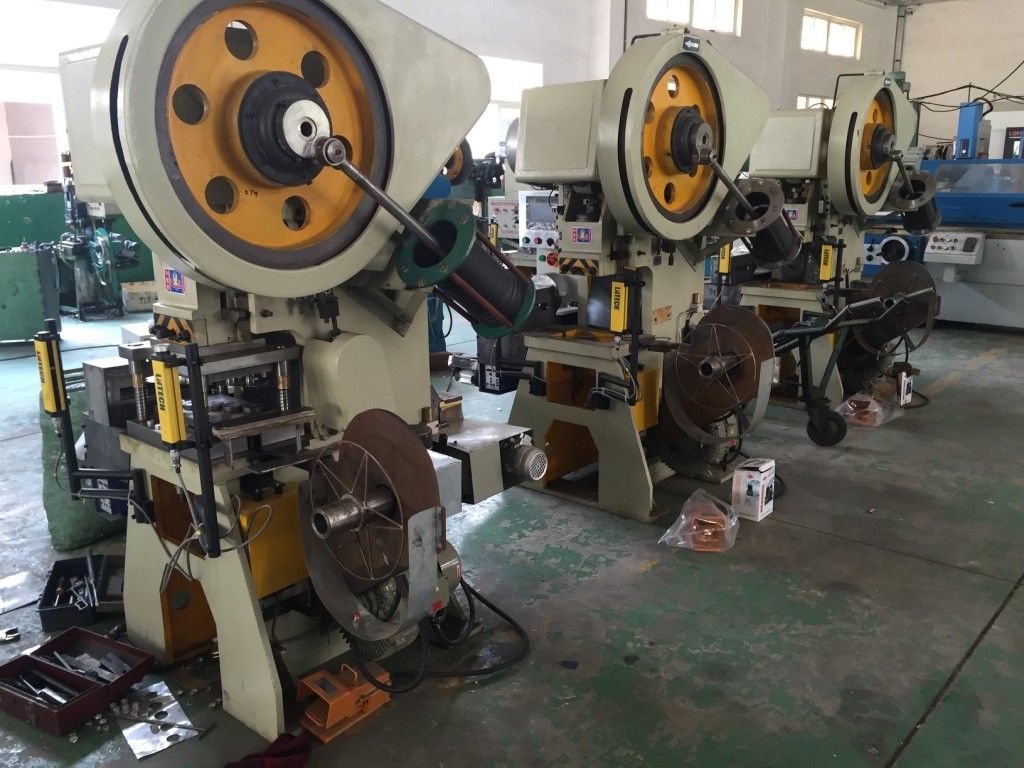

Large Image :  Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 13 diameter cap

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Cap Diameter: 13 Mm Cap Height: 6.3-6.5mm
Cap Making Speed: Diameter 20mm, Speed Is 42000 Pcs Per Hour Advantage: Multi Cavity Die





Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan





 our factory is committed to the production and development of the most sophisticated aluminum cover mold, plastic mold and supporting stamping equipment. The main products are a single head high precision stamping die, multi head stamping die, matching 1.6T, 6.3T, 10T, 16T, 25T, 30T and a series of high-speed automatic punch, and the supporting plastic cover injection mold.



Part 1:Medicine bottle cap  Mechanical Press, capacity 16 ton

Pharmaceutical cap making machine Specification confirmation



Capacity ton 16 TON
Machine size   1.4m x 1.5m x 2m
Main motor KW   2.2 KW
Table size F--R mm

320

2

Table size L--R mm 450
Stroke mm

70

60

Max. Die height mm

220

340

Stroke Per Minute





s.p.m

140 times/ minute

80-120

Slide adjustment mm

45



∅20 mm diameter cap production speed   42000 pcs / h
∅32 mm diameter cap production speed   25000 pcs/h

Characteristics of mold and equipment:
our pharmaceuticalpress cap die is multi-cavity die, max we can produce 16 cavities. high automation, automatic screen cover, self produced compressed gas, filling aluminum belt without manual operation, one person can operate multiple production, can save a large number of personnel costs, and low labor intensity, high per capita daily production, low cost.

The complete machine includes:
1) Mechanical Press/ Punching to form the aluminum cap shape from Coil
2) Multi-cavity dies on the press/ punching--in China, only we can produce more than 2 cavity dies, max we can make 16 cavities.
3) Cap aluminum coil holder frame for aluminm coil
4) Aluminum coil brush oil
5) Blowing cap from punching/press
6) Pull coil material servo control system
7) Waste material recoiling
8) Separate aluminum cap and waste ring
    The caps go into next step, but waste ring come to cabinet
9) Die protection system: During punching, it can protect die, if any cap is not correct, the minitoring system will stop the complete line to protect the die
Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan
Pharmaceutical Aluminum Cap Coil Feeding Machine 13mm Diameter Exporting Pakistan
