| Cap Diameter: | 25 Mm | Cap Height: | 16.4mm |
|---|---|---|---|
| Cap Making Speed: | 500-800 Caps Per Min | ||
| High Light: | coil feeder machine,roll feeder machine |
||
Usage:
In China, only us can special make and design cavity die for cap, the cavity die can make 5-16 caps per stroke. And we also supply punching machine, feeding line--complete line for cap making.After we finish, we will test whole line in our factory, the customer can see the cap making process, check if the cap is perfect. and after customer receive the machine, customer can use it directly, no need to send engineer for adjusting, because we have adjusted machine well.
1)Cap Punching machine parameters:
| Item | 16 | |||
| L | S | |||
| Nominal pressure | kN | 450 | ||
| Nominal pressure stroke | mm | 3.2 | ||
| Stroke of slide | mm | 100 | 70 | |
| Stroke | Variable | spm | 60-90 | 70-110 |
| Single | spm | 80 | 100 | |
| Max. die set height | mm | 270 | 285 | |
| Die height Adjustment | mm | 60 | ||
| Depth of throat | mm | 230 | ||
| Distance between uprights | mm | 500 | ||
| Bottom size of slide | L-R | mm | 410 | |
| F-B | mm | 340 | ||
| Hole for punch shank | Diameter | mm | Φ50 | |
| Depth | mm | 60 | ||
| Size of table | L-R | mm | 810 | |
| F-B | mm | 440 | ||
| Thickness | mm | 110 | ||
| Size of opening in table | Diameter | mm | Φ150 | |
| Single speed motor power | kW | 5.5 | ||
| Overall dimension | L-R | mm | 1080 | |
| F-B | mm | 1410 | ||
| Height | mm | 2300 | ||
| Total weight | kg | 4000 | ||

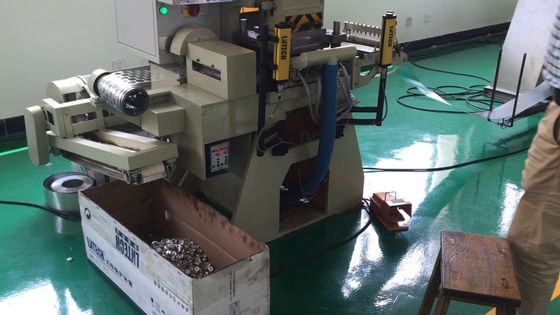

2) other devices for the cap making line and making steps:
cap making Step 1:cap punching die with 6 cavity---it means one stroke, we can get 6 caps, max we can produce 16 caps
cap making Step 2:Cap aluminum coil holder frame
cap making Step 3:Aluminum coil brush oil
cap making Step 4:-Blow cap
cap making Step 5:pull coil material servo control system
cap making Step 6:Pull coil material and waste material coiling
cap making Step 7:separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet
cap making Step 8:Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die
