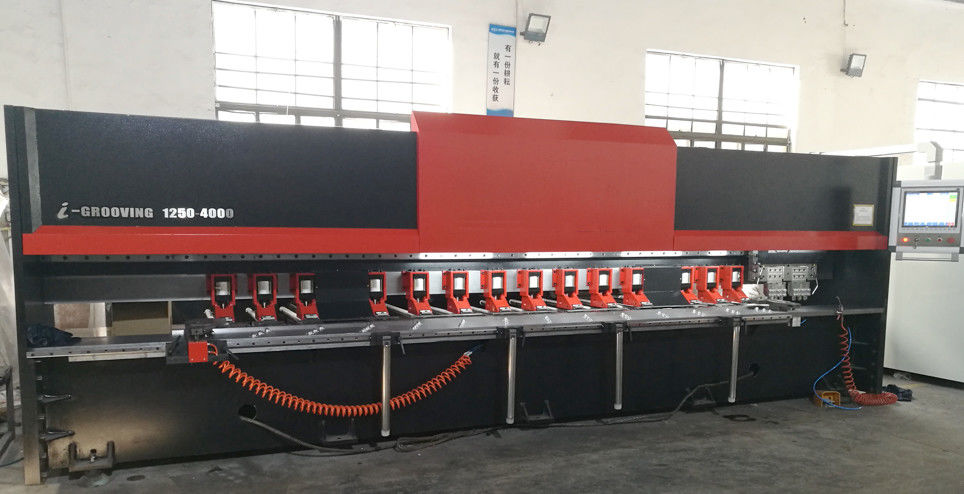

High Speed Numerical Control Metal Slotting Machine For 0.5mm Sheet

                                                Rkc-lh07 1250 * 4000 double direction

                                      high speed numerical control sheet metal slotting machine

Main configuration description

Rkc-lh07 bidirectional high-speed numerical control slotting machine (flagship) is the upgrade of vertical unidirectional high-speed numerical control slotting machine. It integrates all the advantages of vertical unidirectional slotting machine, adopts computer numerical control, full servo control, accurate positioning, high machining accuracy, and its work efficiency is 30% higher than that of unidirectional slotting machine.

The whole frame mechanism has good stability, the worktable is made of super hard die steel, the wear of worktable is small, and the four surfaces can be exchanged.

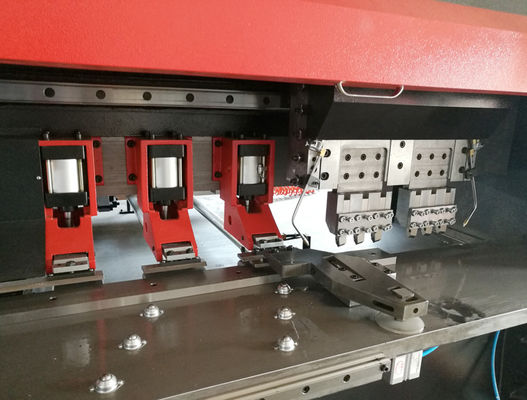

Double turret with 6 alloy knives, white steel knives can be replaced according to the requirements of planing plate, with very high cutting efficiency. It is suitable for planing grooves of various products, with a wide range of processing applications, meeting the actual needs of customers at home and abroad. It is one of the most advanced planing machines in China today.

1,Main technical parameters of the machine

1. Processing plate thickness: 0.5mm-4mm

2. Length of processing plate: 4000 mm

3. Width of processing plate: 1250 mm

4. Unidirectional cutting speed: 60m / min

5. Feeding speed 2m / min-0m / min

6. Minimum setting unit of y-axis: 0.01 mm

7. Minimum positioning accuracy of Y axis: ± 0.05 mm

8. Minimum setting unit of Z axis: 0.01mm

9. Minimum positioning accuracy of Z axis: ± 0.03mm

10. X-axis cutter motor power: w = 4.5kw

11. Y-axis servo motor power: w = 1kW * 2

12. Z-axis servo motor power: w = 1KW

13. Air source pressure: 0.4map-0.6map

14. Maximum slotting depth: 2.5-3mm

15. Machine dimension: 6100 mm * 2450 mm * 2100 mm

16. Machine weight: 11.6T

3,Description of CNC system and main components

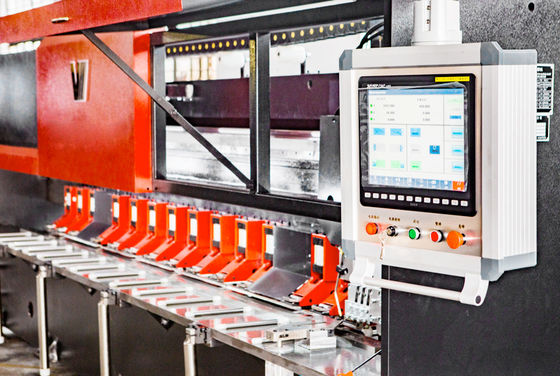

1. Touch type CNC: Taiwan brand 15 inch touch screen hust-a60sdl15-4-a

2. Servo motor: three 1kW ecma-e21310rs of delta brand

3. Servo driver: three 1kW asd-b2-1021-b of delta brand

4. Servo motor: Delta brand 4.5kw ecma-f11845rs large inertia servo motor

5. Servo driver: Delta brand 4.5kw asd-a2-4523-l

6. Tool carrier reducer: 142zdws4-2000t5 medium and large planetary reducer, China

7. Proximity switch: Omron tl-q5mc1-z

8. Pneumatic components: Taiwan Yadeke

9. Cylinder: China

10. cooling system: K2000C sprayer

11. 6 white steel knives: imported white steel knives

12. 6 alloy arbors: China (Korean brand of alloy blade)

4, Linear rolling guide pairs: brs45b2, brh35a2 linear rolling guide pairs are produced by ABB, a famous manufacturer in Taiwan

5, Ball screw pair: ofsr4010-d-fc7 rolling screw pair is produced by ABB, a famous manufacturer in Taiwan

6, Machine cable: original cable imported from Germany.

7, The supplier is responsible for long-term supply of machine tool blade, machine tool quality warranty for one year, lifelong service.

8, The supplier is responsible for machine tool debugging, technical guidance and operation training in China.

9, 30-35 days after deposit.
