Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500

China WUXI JINQIU MACHINERY CO.,LTD. certification
China WUXI JINQIU MACHINERY CO.,LTD. certification
we are glad to inform that both machines are operating very well

—— Seccional In Brazil

Stacy, my good friend, it is happy to inform you we rectified the problem as your valuable information. you are really good friend,help me always

—— Sri Lanka customer

I'm Online Chat Now

Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500

Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500
Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500 Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500 Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500 Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500 Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500

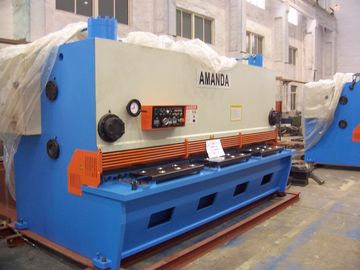

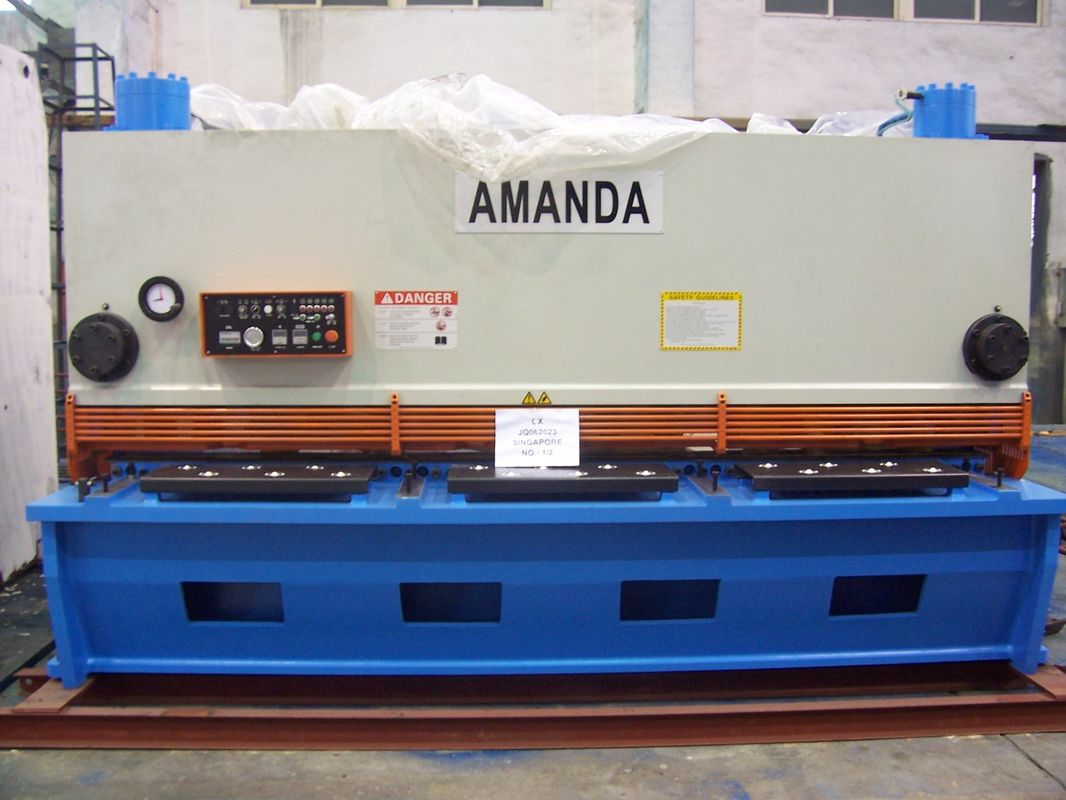

Large Image :  Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: QC11Y-25 X2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Cutting Thickness: 25 Mm
Cutting Length: 2.5meters
High Light:

metal cutting shears

,

guillotine shearing machine

,

thickness 25mm hydraulic guillotine shear





Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500





Mild Steel Hydraulic Guillotine Shearing Machine QC11Y-25X2500 0





Technical Parameters:

Mode: QC11Y-25X2500

Shearing Size: thickness 25mm, length 2500mm

Shearing Angle: 0.5-3 degree

Plate Clamps: 12 pieces

Strokes: 5 times per min

Back gauge range: 20-1000 mm

Main Motor: 45 Kw

Volume of oil tank: 980L

Weight: 20700 kgs

Overall Dimensions: Length 3975 mm

Width 2280 mm

Height 2865 mm



Product introduction:

1. Adopting rolling guild way with three-point suppoort, cutting accuracy could be maintained well

2. Rectangular blade has four edges to extend service life

3. The cutting angle could be adjusted to reduce the amount of deformation of the sheet

4. Blade gap could be adjusted accuratedly and rapidly, the top blades stroke could be adjusted stepless to improve cutting rage

5. Matching variety of back gauges and blade gaps which controled by CNC system







Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel Q235 or Q345

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Hyraulic Shearing Mchine

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E200S, DAC310,DAC 360, OR DTC660

Usage range: cutting  metal sheet.



Packageing & Delivery

Packaging details: metal frame pallet

Delivery detail: 55-60 days







The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.





Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.



Questions:

1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
