CNC Plasma Cutting Machine , Hydraulic Shearing Machine With Stable Cutting

China CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting supplier
CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting supplier CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting supplier CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting supplier CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting supplier

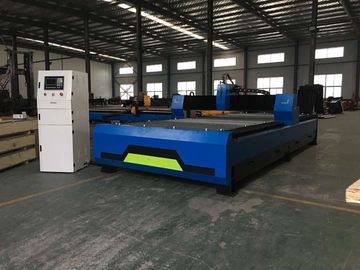

Large Image :  CNC Plasma Cutting Machine , Hydraulic Shearing Machine With Stable Cutting

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 1500x3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Cutting Thickness: Max 16 Mm
Cutting Speed: 15-20 M/min Cutting Source: Plasma





CNC Plasma Cutting Machine , Hydraulic Shearing Machine With Stable Cutting





>>Feature

1.thick steel plates fixed on lathe table covered by cast sheath.

2.USA Hypertherm and China HUAYUAN power source for choose

3. Support FASTCAM nesting software to make cutting materials max usage

4.U disk exchange or Computer control system easy to operate.

5.Support machine special customized, OEM



>>Parameter



Item Description
Working area 1500*3000mm
Design Software Auto Cad,CAXA
Input voltage 3 phase 380V for power source,single phase,220V for machine
Gross Power 15KW
Transmission model X,Y rack gear,z ball screw
Transmission anti-friction Gear-wheel
Cutting speed 15-20m/min
Cutting thickness Max:16mm
Repeat positioning accuracy ±0.05mm
Process precision ±0.3mm
File transfer mode USB interface

>>Main parts
Model HX1530
Power supply China HUAYUAN 120A power source
Cutting torch China huayuan cutting torch
Auto control height system China HYD
Control system STARTFIRE Control system
Nesting Software FASTCAM
Driving system Stepper tmotor
Working table Strong knife table
Transmission model

High precision square rail

With rack gear

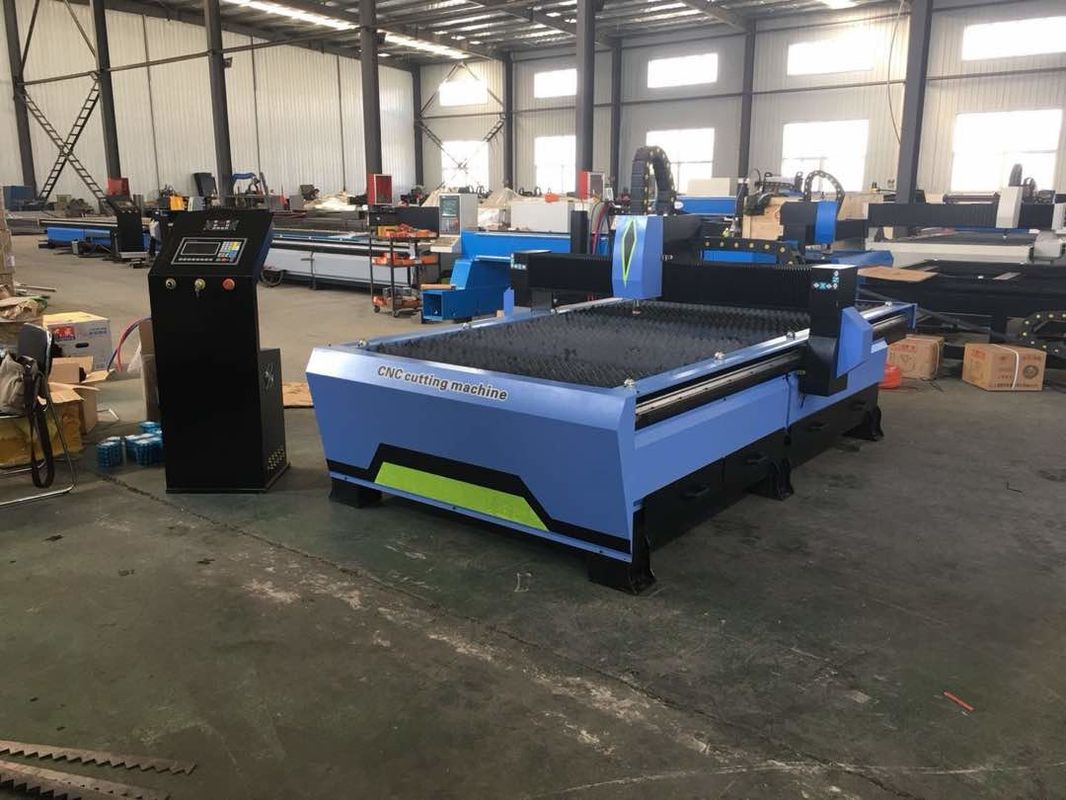

CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting

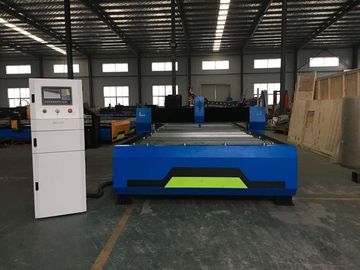

CNC Plasma Cutting Machine ,  Hydraulic Shearing Machine With Stable Cutting



>>After-sales

(1)machine control system and software operate manual will supply,Easy to operate refer manuals.

(2)24 Hours Online Service .All the machine problem , you can ask us any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.

(3)Free training for learning operating and other technical problems in Factory



>>Guarantee

(1)Two years for whole machine , any parts except consumables broken regarding machine quality within one year,free parts will give you .

(2)Whole life technical support and service
